Viking Electronics E-1600-912-IP Emergency Phone for Viking Outdoor Enclosures

Overview

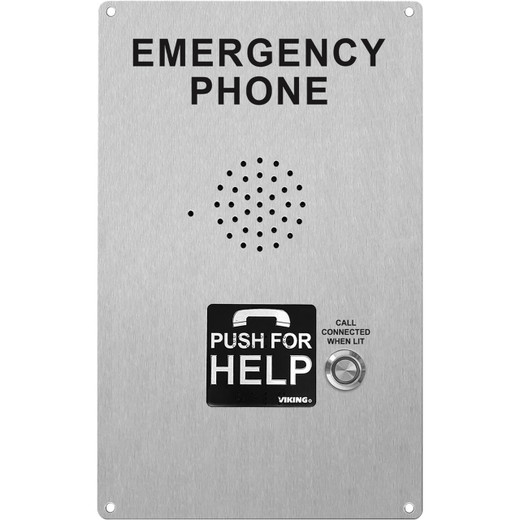

The Viking Electronics E-1600-912-IP is a SIP-based emergency phone module engineered specifically to mount inside Viking VE-9x12 outdoor enclosures. It runs entirely over PoE, drawing under 4 watts (Class 1), which means no dedicated power circuit — just a single Cat5e/Cat6 run to your nearest PoE switch. Designed for parking structures, campus pathways, elevator lobbies, and any hardened outdoor call-point application, the E-1600-912-IP (often searched as E 1600 912 IP) integrates directly into standard SIP 2.0 VoIP infrastructure without requiring a dedicated analog gateway or ATA. Pair it with Viking Electronics emergency phones and intercoms for a fully coordinated call-point system.

Key Features

• PoE Class 1 Power (<4W): Draws under 4 watts via IEEE 802.3af — the lightest PoE class available. On a 24-port 802.3af switch with a 185W budget, you can power dozens of these units without approaching the switch's limit. No electrician, no conduit for power, no UPS per device.
• IP66 Ingress Protection: Sealed against dust ingress and direct water jets from any direction. Suitable for covered outdoor alcoves, parking deck columns, and building exteriors where rain exposure is routine. IP66 does not cover submersion — if the enclosure will flood, that's a different problem requiring IP67 or higher.
• Operating Range -40°F to 140°F: Verified for extreme cold (Minnesota winters, refrigerated loading docks) and high heat (unconditioned southern stairwells, rooftop installations). Many SIP phones are rated to only -4°F; this one extends 36°F colder.
• 95 dB SPL at 1 Meter: That is louder than a typical office phone by roughly 25 dB — enough to cut through ambient noise in a parking garage, mechanical room, or loading dock without adding a separate horn speaker.
• SIP 2.0 / RFC 3261 Compliance: Registers natively to any standards-compliant SIP PBX or call server — Cisco UCM, Asterisk, FreePBX, Avaya, Microsoft Teams Direct Routing (with a SIP gateway). No proprietary license required on the call-server side.
• Up to 5 Emergency Numbers + 5 Info Numbers: Configurable dial plan with dedicated emergency escalation paths. Program a primary dispatch, a backup, and three alternates — the phone cycles through them automatically on no-answer, keeping response reliable even if one line is busy.
• G.711u, G.711a, and G.722 Audio Codecs: G.722 wideband (HD voice) doubles the audio bandwidth to 7 kHz versus G.711's 3.4 kHz ceiling. In a loud environment where the caller is already stressed, wideband audio meaningfully improves dispatch comprehension — fewer repeat transmissions, faster response.
• 28-Second Voice Memory: Pre-recorded location announcement plays automatically on answer, so dispatch knows the exact call point before the caller speaks. Critical for unmanned monitoring centers and after-hours response.
• Dual Relay Contacts (2A): Onboard dry-contact relay outputs that can trigger door strikes, strobes, or access control panels on call activation — without requiring a separate relay module or integration server.
• Flush or Surface Mount: The 5.0 x 5.0 x 2.25-inch module mounts either recessed (flush) or proud of the enclosure back panel, giving installers flexibility when the enclosure depth or conduit placement dictates one approach over the other.
• FCC Part 15, CE, Canada ICES-003 Class A: Pre-certified for US, Canadian, and EU deployments. No additional emissions testing required for standard installations.

Integration and Compatibility

The E-1600-912-IP terminates on a single RJ-45 10/100 Base-T port (IEEE 802.3af PoE) and includes three gel-filled butt connectors for field wiring — a weatherproof connection method suited for in-enclosure runs without needing additional weatherproof crimp tooling. The phone supports SIP 2.0 RFC 3261 and 100BASE-Tx, making it compatible with virtually any enterprise SIP call server. For outdoor emergency phone installations, pair this module with Viking VE-9x12 series enclosures. For PoE infrastructure planning, see the PoE switch selection guide to confirm port budgets. The relay contacts (2A) can directly interface with access control systems and door hardware without an intermediary relay board. Humidity tolerance is 5–95% non-condensing for standard configurations; EWP (Enhanced Weather Protection) variants are rated to 100% humidity for enclosures in consistently wet environments.

Frequently Asked Questions

Q: Does the E-1600-912-IP require a separate power supply?

A: No. The E-1600-912-IP is powered entirely by PoE (IEEE 802.3af, Class 1, under 4 watts). A single Cat5e or Cat6 run from a standard 802.3af PoE switch provides both data and power. No external power adapter or dedicated circuit is needed.

Q: What SIP call servers is the E-1600-912-IP compatible with?

A: The phone implements SIP 2.0 per RFC 3261, which is the universal SIP standard. It will register to any compliant SIP PBX or call server, including Cisco Unified Communications Manager, Asterisk, FreePBX, and Avaya platforms. Proprietary protocol adapters are not required.

Q: Is the E-1600-912-IP rated for outdoor use in extreme temperatures?

A: Yes. The operating temperature range is -40°F to 140°F, covering severe cold climates and high-heat unconditioned spaces. The enclosure achieves IP66 ingress protection, meaning it is sealed against dust and direct water jets from any direction.

Q: How many emergency numbers can be programmed?

A: Up to 5 emergency numbers and up to 5 informational numbers can be configured. The phone will cycle through the emergency numbers on no-answer, improving reliability when primary lines are busy.

Q: Can the E-1600-912-IP trigger a door release or strobe on call activation?

A: Yes. The unit includes dual onboard relay contacts rated at 2 amps. These can directly control door strikes, warning strobes, or other access control hardware without a separate relay module.

Q: What audio codecs does the E-1600-912-IP support?

A: The phone supports G.711u (µ-law), G.711a (A-law), and G.722 wideband. G.722 provides HD voice quality at up to 7 kHz audio bandwidth, which meaningfully improves intelligibility in noisy outdoor environments.

Eden Phillips

The E-1600-912-IP is one of the cleaner SIP emergency phone deployments I have specified — the sub-4-watt PoE Class 1 draw is the spec that most installers underestimate. On a mid-range 802.3af switch, you can budget 12 or more of these units on a single switch without worrying about port power exhaustion, which matters when you are wiring a multi-level parking structure with one IDF per floor.

Technical Highlights:

• PoE Class 1 (<4W): The lowest PoE power class — well within any 802.3af port's 15.4W ceiling. No need to upgrade to 802.3at (PoE+) switches, which saves real money at scale across a multi-building campus deployment.
• 95 dB SPL at 1m: Exceeds typical ambient noise in parking structures (70–85 dB) by at least 10 dB — enough to be clearly audible without an external amplified speaker. Factor this against your enclosure's speaker opening size when speccing the VE-9x12 enclosure variant.
• G.722 Wideband Codec: At 7 kHz audio bandwidth versus G.711's 3.4 kHz, dispatch operators can understand callers faster in high-noise environments — directly reducing response time in high-stress emergency calls.

Deployment Considerations:

• The three gel-filled butt connectors are included for field wiring inside the VE-9x12 enclosure — confirm your enclosure knockout aligns with your conduit entry before mounting, as rework in a poured-concrete column is costly.
• EWP (Enhanced Weather Protection) humidity rating extends to 100% — standard units are rated 5–95% non-condensing. If the enclosure will be in a consistently wet or condensation-prone space (covered carwash, tunnel, coastal installation), specify the EWP variant explicitly; they are not interchangeable.

This unit is the right call for university campus blue-light phone networks and parking authority emergency call stations where a single Cat6 home-run per device, SIP registration to an existing call server, and a relay output for a strobe or gate release all need to land in one compact, certified module.
