Viking X-1605-32 IP Emergency Phone 1080p HD Video Stainless Steel

Viking Electronics X-1605-32 IP Emergency Phone with HD Video

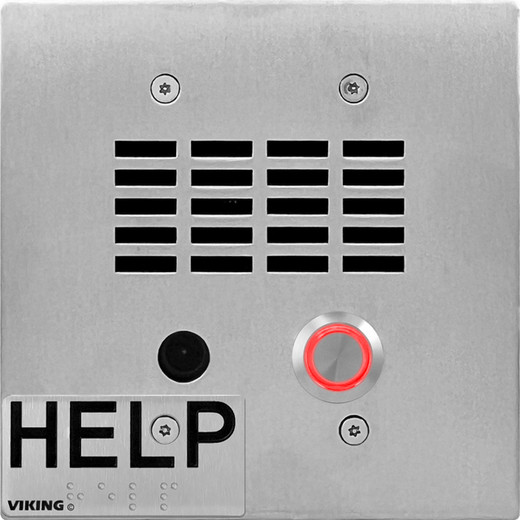

The Viking Electronics X-1605-32 is a flush-mount IP emergency phone that pairs one-way HD video with full two-way audio — purpose-built for elevator cabs, parking structures, stairwells, and controlled-access corridors where a distress call needs to deliver visual context alongside voice. The 1080p camera and SIP-based dialing engine live behind a 14-gauge 316 stainless steel faceplate, engineered to survive the kind of abuse common to public-facing installations. If you need an emergency intercom that can dial programmable numbers, cycle through backup numbers on busy or no-answer, and deliver a usable image of the caller to the receiving station, the X-1605-32 is a well-specified option to evaluate against your project requirements.

Key Features

• 1080p @ 15 FPS HD Video (OmniVision OV5645): The OmniVision OV5645 sensor captures 1080p resolution at 15 frames per second — sufficient frame rate for a stationary emergency call scene. At a sensitivity of 680 mV/lux-second, the sensor can produce a usable image under standard interior lighting without requiring supplemental illumination. For an elevator or lobby installation where the subject is typically within arm's reach, 1080p is enough to identify a caller and log the interaction.
• 126° Diagonal FOV, Fixed 6.35 mm Lens: The fixed 0.25-inch (6.35 mm) lens delivers a 126° diagonal field of view. In tight enclosures like elevator cabs or wall niches, a wide FOV means you capture the caller's face even if they're standing directly in front of and close to the unit — no varifocal adjustment needed at install. Fixed optics also eliminate the drift risk you get with motor-driven lenses over time.
• H.264 and MJPEG Compression: Dual codec support lets you match the stream format to your recording or monitoring platform. H.264 keeps bandwidth lean for continuous recording; MJPEG gives frame-accurate retrieval if your VMS or evidence workflow depends on it. Both codecs are handled without additional transcoding on the receiving end for most SIP-based platforms.
• G.711u / G.711a / G.722 Audio Codecs: G.722 wideband audio is available, which noticeably improves call intelligibility in reverberant spaces like concrete stairwells or parking decks. G.711u/a maintains compatibility with legacy SIP infrastructure that doesn't support wideband. Two-way full-duplex voice is standard — the unit is a phone, not just an annunciator.
• Programmable Dial and Automatic Backup Number Cycling: The X-1605-32 dials programmable destination numbers and automatically cycles to backup numbers on busy signal or no answer. In a 24/7 monitored environment, this matters: if the primary monitoring station is occupied or unreachable, the call escalates without requiring any action from the person in distress.
• 316 Stainless Steel Faceplate, 14-Gauge, #4 Brushed Finish: 316 SS (marine-grade alloy) at 14-gauge resists corrosion and physical deformation better than the 304 SS or painted steel used on lower-cost emergency phones. The #4 brushed finish reduces visible scratching and fingerprinting in high-traffic areas. For outdoor-adjacent installations — covered parking, loading dock entries, building perimeters — the material choice is appropriate.
• Compact Flush-Mount Footprint (5.0″ × 5.0″ × 2.25″): The unit drops into a standard double gang box or accepts an optional VE-Series surface-mount box. At 5.0″ × 5.0″ × 2.25″ (127 mm × 127 mm × 57 mm), the depth is manageable in concrete or masonry walls where box depth is constrained. Surface-mount with the VE-Series box is the practical path for retrofit installs where cutting is not feasible.
• -40°F to 140°F (-40°C to 60°C) Operating Range: The thermal envelope covers unheated parking structures in cold climates and sun-exposed exterior vestibules in warm ones. Residential and light commercial emergency phones often spec only 32°F to 122°F — this unit's range extends the deployment envelope meaningfully for outdoor-adjacent or harsh interior locations.
• 5% to 95% Non-Condensing Humidity Rating: Paired with the stainless faceplate, the humidity tolerance makes the unit viable in loading docks, covered walkways, or equipment rooms where ambient moisture swings are routine.

Integration and Compatibility

The X-1605-32 operates over standard IP networks using SIP, making it compatible with most enterprise and hosted SIP PBX platforms. Video stream access via IP camera-compatible clients using H.264 or MJPEG. Audio codec flexibility (G.711u, G.711a, G.722) ensures the unit registers and calls on virtually any SIP infrastructure without codec negotiation failures. For sites already running Viking Electronics intercom or access control products, the X-1605-32 integrates cleanly within the same management ecosystem. When planning PoE delivery for multi-device deployments, review your PoE switch power budget — the unit draws power over the network connection, eliminating separate power runs. For projects requiring a broader emergency phone solution across multiple zones or access points, Viking's X-1605 series covers several form factors and mounting configurations. Consult your VMS documentation to confirm SIP video intercom integration if live video display at the monitoring station is a project requirement — not all VMS platforms handle SIP video natively. For access-controlled entry points, pairing this unit with a access control door controller enables call-to-unlock workflows where the monitoring station can remotely release the door on a verified call.

Frequently Asked Questions

Q: Does the X-1605-32 support automatic failover if the primary call destination is busy or doesn't answer?

A: Yes. The X-1605-32 dials programmable destination numbers and automatically cycles through backup numbers if the primary line returns a busy signal or goes unanswered. This ensures the call escalates without any action required from the caller.

Q: What mounting options are available for the X-1605-32?

A: The X-1605-32 is designed to flush-mount in a standard double gang electrical box. For retrofit or surface-mount installations, Viking offers an optional VE-Series surface-mount box that accepts the unit without requiring in-wall box cutout.

Q: What video resolution and frame rate does the X-1605-32 deliver?

A: The unit captures 1080p HD video at 15 frames per second using an OmniVision OV5645 image sensor with a 126° diagonal field of view. This is sufficient for caller identification at typical emergency phone standoff distances.

Q: What audio codecs does the X-1605-32 support?

A: The X-1605-32 supports G.711u, G.711a, and G.722. G.722 provides wideband (HD) audio quality, which improves intelligibility in reverberant or noisy environments. G.711 variants ensure backward compatibility with standard SIP infrastructure.

Q: What is the operating temperature range for the X-1605-32?

A: The unit operates from -40°F to 140°F (-40°C to 60°C), making it suitable for unheated parking structures, covered outdoor vestibules, and other environments with wide ambient temperature swings.

Q: What video compression formats does the X-1605-32 use?

A: The X-1605-32 supports H.264 and MJPEG. H.264 is the standard choice for continuous recording due to its bandwidth efficiency; MJPEG is available for frame-accurate evidence capture workflows.

Karl Wilson

The X-1605-32 sits in a specific niche that a standard SIP door station or IP camera doesn't fill cleanly: a ruggedized, flush-mount emergency call point that adds 1080p visual verification to the voice call without requiring a separate camera head. The 126° diagonal FOV from the fixed 6.35 mm lens is genuinely useful here — in a standard elevator cab, a 126° angle captures the full frontal zone in front of the faceplate at close range, which is exactly what a monitoring operator needs to assess the nature of the call before speaking.

Technical Highlights:

• OmniVision OV5645 at 680 mV/lux-second: That sensitivity figure means the sensor can render a usable image under typical interior ambient light (100–300 lux) without IR fill. For elevator and lobby deployments where supplemental IR is unwanted or impractical, this is a practical advantage over sensors rated in the 100–200 mV/lux-second range.
• G.722 Wideband Audio: Most emergency phone installations specify G.711 and call it done. G.722 at 16 kHz sampling doubles the voice frequency range compared to G.711's 8 kHz narrowband — audible difference in concrete stairwells and parking decks where reflections compress intelligibility. Worth specifying on the SIP trunk if the infrastructure supports it.
• 316 Stainless at 14-Gauge: 316 alloy adds molybdenum versus standard 304 SS, which measurably improves resistance to chloride-induced pitting. For coastal installations or sites with regular cleaning chemicals (hospitals, transit, food service), 316 at 14-gauge is the correct material spec — not a marketing upgrade.

Deployment Considerations:

• The unit flushes into a standard double gang box — confirm box depth against the 2.25″ (57 mm) unit depth before rough-in, particularly in masonry or precast walls where available box depth may be constrained to 2.0″ or less. The optional VE-Series surface box eliminates this risk on retrofit jobs.
• Video stream at 15 FPS is below the 30 FPS threshold that some VMS platforms require for smooth motion playback. For call-logging and still-frame evidence capture the frame rate is adequate; if the monitoring station requires smooth live video (e.g., for active surveillance alongside the call), verify your platform's minimum FPS acceptance before specifying.

The X-1605-32 (often searched as X 1605 32) is the right specification for elevator phone compliance, covered parking structure emergency call stations, or any ADA-driven emergency communication point where visual caller verification is a documented requirement and the installation demands a flush-mount stainless unit that survives a -40°F winter without a heater.
