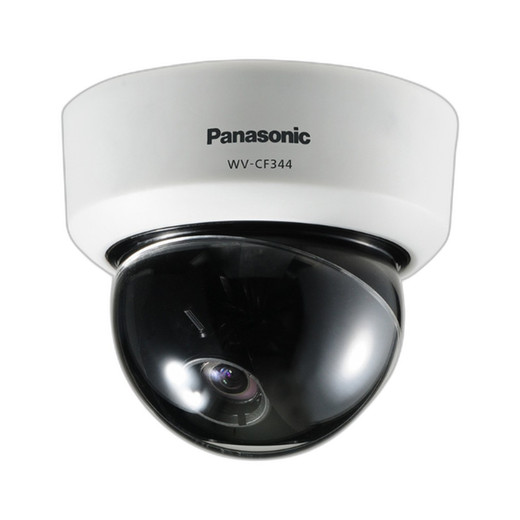

i-PRO WVCF344 Indoor Fixed Analog Dome Camera
Overview
The i-PRO WVCF344 is a 650 TV line analog fixed dome built for permanent indoor surveillance in retail, office, and institutional environments running legacy analog DVR or hybrid NVR systems. The 1/3-inch interline transfer CCD sensor delivers crisp monochrome detail in near-darkness—0.008 lux in B/W mode at F1.4—and color footage down to 0.08 lux, eliminating the need for supplemental lighting in 24/7 monitoring scenarios. The 2.8–10mm varifocal lens (3.6x zoom range) provides 100.3° horizontal coverage, letting you dial in field of view without lens replacement if coverage requirements shift. IR illumination with automatic day/night switching handles complete darkness; adaptive features like Automatic Back Focus (ABF), Adaptive Black Stretch (ABS), and Back-Light Compensation (BLC) cut setup time and reduce manual calibration. The compact ceiling-mount dome fits retail ceilings, warehouse overheads, and institutional corridors without drawing attention. Video Motion Detection (VMD) enables basic movement alerting for DVR-side event triggers.
Compatibility
The WVCF344 integrates directly with any analog DVR, analog hybrid NVR, or analog matrix switcher accepting composite (CVBS) baseband input via BNC connector. Legacy systems from the 1990s through early 2010s handle 650 TV line analog cameras without firmware or driver changes. If you are expanding an existing analog surveillance infrastructure—adding coverage to a retail zone, warehouse aisle, office corridor, or shipping area already served by analog DVRs—the WVCF344 plugs into open BNC inputs with no adapter required. Confirm your DVR or matrix has available composite inputs; no IP conversion or analog-to-digital card is necessary. Analog cable runs support hundreds of feet without active boosting, a practical advantage in older buildings or large open floor plans where IP infrastructure is not in place.
Installation Notes
The 3-way hinge (horizontal, vertical, and swivel rotation) enables ceiling or surface mounting without additional brackets. Power requirement: 24 V AC or 12 V DC, supplied via two-wire field wiring to a BNC connector. The embedded ceiling mount bracket (supplied) accommodates standard 12-inch tile drop-ceiling grids. Lens Distortion Correction and Focus Assist reduce field alignment time. On-screen display menu allows real-time iris and focus adjustment during commissioning.
What's in the Box
- 1x Installation Guide
- 1x Installation CD-ROM
- 1x Installation Template Panel
- 1x Embedded Ceiling Mount Bracket (sail white)
