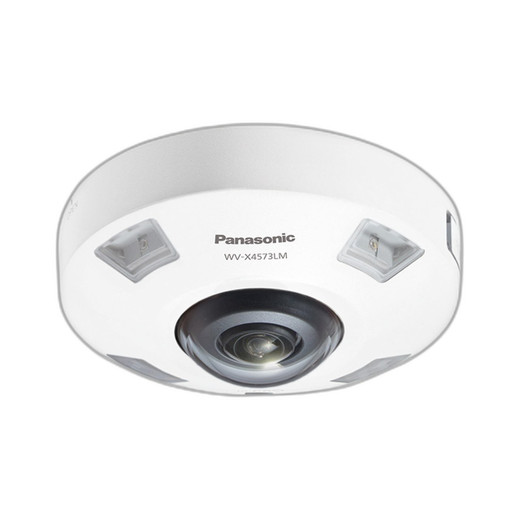

i-PRO WV-X4573LM 12MP Fisheye Weatherproof Outdoor Dome IP Camera
Overview
The WV-X4573LM is a 12MP fisheye network camera built for outdoor environments requiring hemispheric coverage without pan/tilt mechanisms. It delivers 2992×2992 pixel resolution at up to 30 fps, capturing 183° horizontal and 183° vertical field of view—ideal for parking structures, loading docks, industrial yards, and other wide-area surveillance scenarios. The IP66 and IK10 ratings (50J impact compliance) mean direct rain, dust, and significant physical impacts won't disable the unit; onboard dehumidification handles condensation in sealed mounting cavities. H.265 Smart Coding cuts bitstream roughly 50% versus H.264 at equivalent quality—a meaningful reduction when recording 24/7 across multiple cameras on a single PoE switch or NVR. The WV-X4573LM is NDAA-compliant and integrates via standard ONVIF Profile G, S, and T, compatible with any ONVIF-capable VMS platform.
Compatibility
The WV-X4573LM integrates with any network video recorder or VMS platform supporting ONVIF (Milestone, Axis Camera Station, generic NVR systems). PoE (802.3af) powers the unit—verify your PoE switch or injector supplies at least 13W capacity before deployment. The camera outputs H.265 and H.264 streams simultaneously, allowing legacy systems to consume H.264 while modern recorders capture H.265 at half the storage footprint. Audio input supports external microphone integration for event-triggered recording or two-way audio scenarios. Wall and ceiling mounts are both supported; confirm structural load rating before installation.
Installation Notes
Minimum focus distance is 0.5 m (20 inches)—mount above 0.5 m from any obstacle to avoid soft-focus dead zones. Fisheye distortion is inherent to the optics; dewarping or virtual PTZ (crop-and-zoom) is performed in the VMS or client software, not the camera. Mounting angle adjustments allow ±5° tilt correction. Avoid direct sunlight on the lens for extended periods; use a sunshade or baffle to prevent blooming in high-contrast scenes. Low-light performance reaches 0.02 lux color (F1.9, maximum shutter 16/30s, AGC 11) and 0.003 lux B/W under identical conditions—usable imagery in twilight or pre-dawn conditions without IR. Maximum IR irradiation distance is approximately 10 m (33 ft) at 3 m mounting height with peripheral intensity control enabled.
