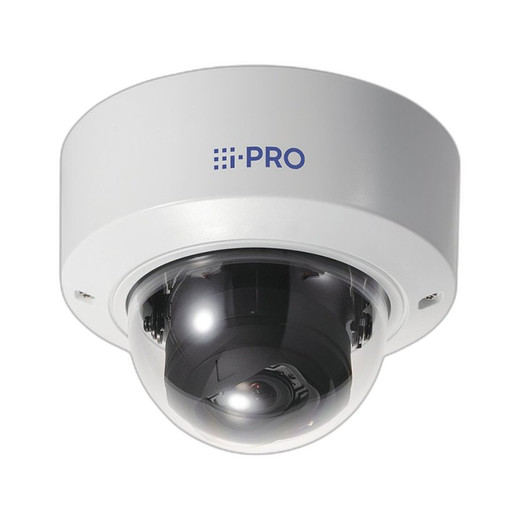

i-PRO WV-X22700-V2L 12MP 4K AI Indoor Dome Camera

i-PRO WV-X22700-V2L 12MP 4K AI Indoor Dome Camera

The i-PRO WV-X22700-V2L is a 12MP X-Series AI-enabled dome camera built on the Ambarella CV52 processor, engineered for high-resolution surveillance in corporate, retail, and institutional environments where facial verification and vehicle detection matter. Native 3840×2160 resolution at 30 fps with motorized 2.0x optical zoom delivers flexibility across access control checkpoints, warehouse perimeters, and facility lobbies without lens changes.

Key Features

• 12MP Native 4K Resolution: Captures 3840×2160 at 30 fps, delivering detail sufficient for facial identification at 6.3 m (wide) / 15.7 m (tele) and vehicle recognition at 12.7 m (wide) / 31.5 m (tele)—critical when post-incident investigation or access audit is the driver.
• Advanced Low-Light Imaging: 1/1.8-inch CMOS sensor with F1.5 aperture and 0.03 lux minimum illumination in monochrome mode. Integrated IR LEDs reach 70 meters at 30IRE with adjustable intensity (High/Middle/Low), eliminating a separate illuminator in most indoor/covered outdoor scenarios.
• Motorized Varifocal Lens (4.3–8.6 mm): 2.0x optical zoom covers 52°–101° horizontal field of view. One dome replaces two fixed-lens cameras at different focal lengths, simplifying installation and reducing inventory. 1.0 m minimum focus distance enables close-range facial and ID card detail.
• 132 dB Dynamic Range with Super Dynamic Mode: Intelligent Auto exposure, Adaptive Black Stretch, and selectable BLC/HLC processing handle extreme lighting transitions (e.g., reflective lobbies, backlit entry doors) without washout or crush—reduces post-processing or manual gain tuning.
• Comprehensive AI Analytics On-Camera: AI Video Motion Detection, Face Detection, People Detection, Vehicle Detection, Non-Mask Detection, Occupancy Detection, and Scene Change Detection run locally on the camera, reducing bandwidth to the NVR and enabling rule-triggered recordings and alerts without a separate analytics appliance.
• H.265 Compression: Reduces bandwidth and storage ~40–60% vs. H.264 at equivalent quality. On 24/7 multi-camera systems, this translates to fewer NVR disks or lower PoE switch port utilization—a real cost factor at scale.
• Gyro-Stabilized Image: Built-in motion stabilization compensates for vibration in HVAC ducts, mounted on flexible hardware, or lightweight ceiling installations—prevents jitter artifacts on recorded video.
• IP67 Environmental Rating & IK10 Vandal Resistance: IP67 handles direct spray and dust ingress (typical in plant floors, warehouse loading docks, outdoor covered areas). IK10 rated die-cast aluminum housing withstands deliberate impact—important in high-traffic or adversarial-risk facilities.
• PoE+ Powered (14 W Typical): IEEE 802.3at Class 4 eliminates separate power supplies and reduces cabling runs. Draws under 14 W, so a standard 90W PoE injector or switch powers 5+ cameras without oversubscription.
• FIPS 140-2 Level 3 Encryption & ONVIF Compliance: NXP EdgeLock SE050F secure element, HTTPS encryption, and GlobalSign device certificate pre-installed support government/healthcare compliance workflows. ONVIF Profile G/S/T/M interoperability integrates with any standard network video recorder or IP security management platform.
• Secure Local Storage: microSDXC/SDHC card slot (up to 512 GB) provides onboard backup without cloud dependency—useful during WAN outages or for isolated edge-site retention.
• Two-Way Audio: G.726/G.711/AAC compression with half- and full-duplex modes enable intercom or security team verbal challenge from a remote console.

Integration & Compatibility

The WV-X22700-V2L connects to any i-PRO IP camera network via standard 10/100 Base-T Ethernet. Supports up to 14 simultaneous users and ONVIF Profile G/S/T/M ensures compatibility with Milestone XProtect, Axis Camera Station, and other major VMS platforms. Mounting flexibility (±180° pan, –30° to +85° tilt, ±100° azimuth) accommodates ceiling or wall installation in tight architectural spaces. Operating temperature range of –10 °C to +50 °C suits temperate indoor and semi-outdoor covered installations; non-condensing humidity 10–90% prevents condensation damage in humid climates.

When planning deployment, consult a camera selection and coverage planning guide to calculate lens FOV overlap and ensure facial recognition distances align with actual checkpoint geometry. PoE budget planning is straightforward (14 W typical), but PoE wattage calculators help confirm your switch can handle the aggregate load if you're adding multiple cameras.

What's in the Box

Verify exact contents with the manufacturer, as packaging may vary by region and distribution channel.

When to Choose a Different Model

The WV-X22700-V2L is a strong fit for medium-range indoor surveillance (facial ID at 6–16 m, vehicle recognition at 12–32 m). If you need longer detection ranges (e.g., perimeter detection at 40+ m), consider a higher-megapixel variant or a purpose-built PTZ in the same i-PRO X-Series family. If the site has outdoor or direct-spray exposure beyond IP67 capability, escalate to an IP68-rated or fully sealed outdoor variant. If AI analytics must run on a central NVR rather than the camera, this model's onboard processing advantage shifts—though ONVIF compliance still allows use in any VMS.

Frequently Asked Questions

Q: Is the WV-X22700-V2L NDAA Section 889 compliant?

A: No certification evidence is available in the product data. Consult i-PRO directly or request a compliance statement if NDAA compliance is a contract requirement.

Q: What's the warranty on the WV-X22700-V2L?

A: Warranty details are not included in the available product documentation. Contact the manufacturer or your specialty distributor for warranty terms.

Q: What is the maximum IR illumination range?

A: The integrated IR LEDs provide 70-meter illumination range at 30IRE (Industry Reference Exposure), with adjustable intensity (High/Middle/Low). At maximum intensity, you can illuminate scenes up to 70 m; reducing intensity lowers power draw but shortens range.

Q: Can the WV-X22700-V2L be mounted on a wall or does it require ceiling mounting?

A: The dome form factor supports both ceiling and wall mounting. Tilt adjustment ranges from –30° to +85°, pan ±180°, and azimuth ±100°, providing flexibility for various installation geometries. Consult mounting documentation for bracket options and load specifications.

Q: Does the WV-X22700-V2L support two-way audio?

A: Yes. The camera includes G.726/G.711/AAC audio compression and supports both half- and full-duplex interactive audio modes, enabling a security team to speak to or challenge individuals on site from a remote console.

Q: How much PoE power does the WV-X22700-V2L draw?

A: The camera draws approximately 14 W via IEEE 802.3at PoE+. This is well within standard PoE+ budgets, so a single 90 W injector can power 5+ cameras without oversubscription.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-X22700-V2L is a solid pick for facilities where you need AI-driven people and vehicle detection baked into the camera itself, eliminating a separate edge analytics appliance. The 12MP sensor and motorized varifocal lens cut down on multi-camera sprawl—one dome with zoom flexibility often replaces two or three fixed-lens cameras. That said, the real value lies in the spec combination: 0.03 lux sensor sensitivity plus 70 m IR reach plus 132 dB dynamic range means this camera performs in difficult lighting without constant tuning. The H.265 compression alone saves real money on storage and PoE switch utilization at scale.

Technical Highlights:

• Facial Identification Distance (12MP): 6.3 m wide / 15.7 m telephoto—sufficient for lobby checkpoints and controlled-access areas where subjects cooperate. If you need identification at 30+ m or in uncontrolled outdoor settings, escalate to a higher-megapixel variant or hybrid PTZ system.
• 132 dB Dynamic Range + Adaptive Black Stretch: This handles backlit entry doors and highly reflective lobbies without manual WDR tuning or frame-by-frame gain adjustment. In real deployments, adaptive tone mapping is faster and cleaner than BLC alone.
• H.265 Bandwidth Savings: 40–60% reduction vs. H.264 at equivalent quality. On a 30-camera warehouse install with 24/7 recording, that's the difference between a 16-port switch (25.5 W × 30 cameras = 765 W) and a smaller, cheaper 10-port PoE switch. Multiply by storage: 30 days of H.264 at 5 Mbps average = ~16.2 TB; H.265 at 3 Mbps = ~9.7 TB—two fewer NVR drives.
• PoE+ Class 4 (14 W Max): Sits comfortably on standard PoE+ injectors. No separate 12 VDC runs needed. Wiring simplification alone saves hours on a multi-camera deployment.

Deployment Considerations:

• AI On-Camera, Not Cloud or Edge: Face Detection, Vehicle Detection, Occupancy, and Motion Detection run locally on the Ambarella CV52. This means lower WAN bandwidth and no cloud SLA dependency—but it also means firmware updates for analytics must be pushed to the camera. Ensure your provisioning workflow includes OTA firmware management.
• IP67 Gotcha: IP67 is rated for direct spray and temporary immersion, not submersion. Avoid mounting directly under gutter downspouts or in areas prone to pooling water. If you need true outdoor submersion capability (e.g., perimeter intrusion detection with potential water exposure), step up to an IP68 variant.
• Minimum Focus Distance (1.0 m): The camera can focus at very close range, useful for ID card readers or badge verification. But in very tight mounting geometry (e.g., jamb-mount at a narrow doorway), confirm the lens can achieve focus before installation.
• Microphone Placement: The camera has onboard audio but no explicit specification of mic sensitivity or directional pickup. If you're relying on audio capture for intrusion detection or conversation logging, test audio levels in your target environment before rollout.

The WV-X22700-V2L makes most sense in corporate campuses, warehouse entry control, and retail environments where 6–16 m facial identification and vehicle detection cover the majority of critical zones. Deploy it where PoE+ infrastructure already exists and where on-camera AI analytics reduce NVR load. Avoid it in long-range outdoor perimeter scenarios or sites where you need onboard PTZ at high magnification—its motorized zoom is good for framing adjustment, not zoom-in pursuit.
