i-PRO WV-S8574L 16MP 4-Sensor Panoramic Outdoor IP Camera

i-PRO WV-S8574L 16MP 4-Sensor Panoramic Outdoor IP Camera

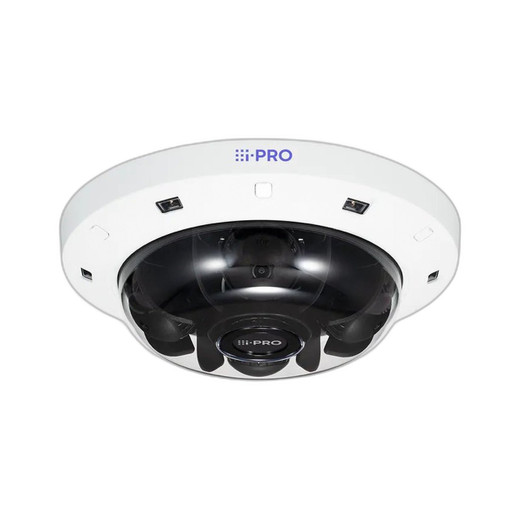

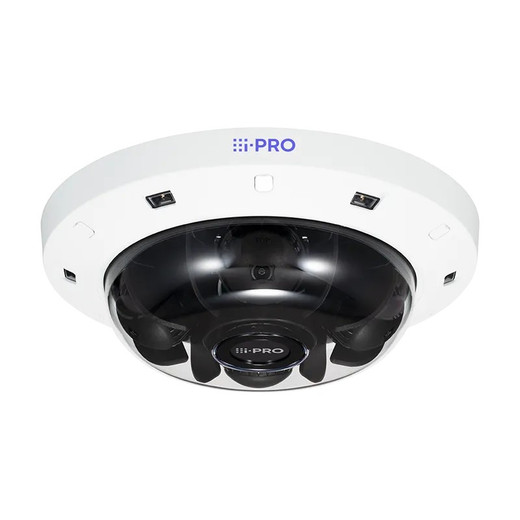

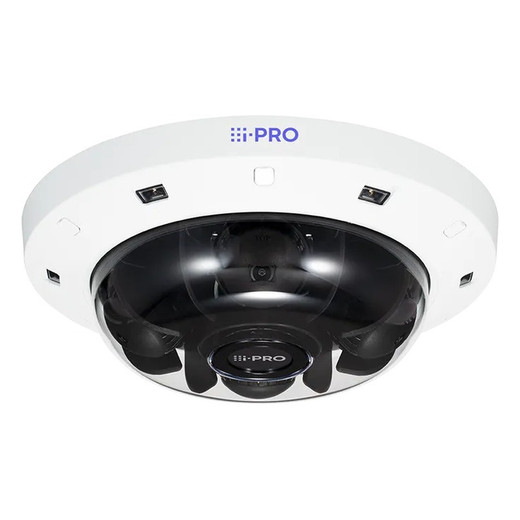

The i-PRO WV-S8574L is a fixed panoramic outdoor IP camera built around four independent 8MP sensors delivering 16MP total resolution in a single dome housing. This multi-sensor design captures 180-degree horizontal panoramic coverage, eliminating the need for multiple camera mounting points and simplifying installation labor on large perimeter deployments. The WV-S8574L targets security integrators managing expansive facility monitoring, critical infrastructure perimeters, and outdoor areas where wide-angle coverage and resolution depth matter equally.

Key Features

• 32MP Sensor Array (4x8MP Configuration): Four independent 1/2.8-inch CMOS image sensors, each capturing 8MP simultaneously. This delivers 16MP aggregate resolution and true 180-degree horizontal panoramic sight lines without digital stitching artifacts — you're recording four parallel streams, not compositing a single image. On a 24/7 recording system, this means you capture detail across a full facility perimeter from one mounting location, reducing camera count and network overhead.
• 4K Ultra HD Frame Rates with Smart Compression: H.265 and H.264 support at up to 3840×2160 resolution and 30 fps. H.265 cuts bitrate roughly in half versus H.264 at equivalent quality — critical for 24/7 recording budgets where you're streaming four sensors simultaneously. Frame-rate control, Advanced, Mid, and Low bit-rate modes let you balance storage costs against scene complexity without re-encoding.
• Extreme Low-Light and IR Illumination: Achieves 0.084 lux in color mode (30IRE, F2.0) and 0.05 lux in black-and-white mode — practically usable in near-darkness. Integrated IR LED array provides up to 40-meter illumination at 30IRE (131 feet) with intelligent color/black-and-white switching (ICR) and Auto modes that eliminate the lag and artifacts common in slower day/night transitions. For perimeter and dock monitoring, 40m IR reach covers most facility edges without overlapping illumination dead zones.
• 120 dB Dynamic Range with Multi-Level Tone Mapping: Maximum dynamic range of 120 dB via Super Dynamic mode (levels 0–31), paired with Adaptive Black Stretch (0–255), Back Light Compensation, High Light Compensation, and fog compensation. Translation: if you're recording a backlit loading dock or a perimeter fence in bright sun with deep shadows, the camera holds detail in both bright and dark regions simultaneously. This eliminates the need for manual exposure tweaking between day and night shifts.
• Embedded AI Video Analytics: On-camera AI includes Video Motion Detection (VMD), AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non-mask Detection, AI Occupancy Detection, Scene Change Detection (SCD), AI Privacy Guard, and AI Sound Classification (Gunshot, Yell, Vehicle horn, Glass break). Up to 4 VMD areas and 1 SCD area reduce false alerts and let you trigger alarms on specific object types — fewer nuisance notifications to security staff means faster response to real threats.
• Independent 4-Module Pan/Tilt/Twist Adjustment: Each of the four sensors supports ±125° horizontal pan, +10° to +105° vertical tilt, ±90° yaw, and ±30° twist rotation. In a complex outdoor space (corners, alcoves, overhead), you can angle each lens module independently without physical repositioning — installation crews can fine-tune coverage in minutes rather than days.
• IP67 and IK10 Rugged Outdoor Rating: IP67/IP66 and Type 4X (NEMA 4X) compliance mean full dust and water resistance; IK10 withstands vandal impact. Anti-condensation system (Temish element + moisture-absorption gel) maintains optical clarity in humid climates. Operating range –40°C to +60°C and wind resistance to 40 m/s (89 mph) handle extreme temperature swings and coastal/industrial weather without performance drift.
• PoE+ Single-Cable Power and Data: IEEE 802.3at PoE+ powered at 25.4W (Class 4 device) via DC 54V input. One network cable delivers both power and data — no separate 12VDC supply, no conduit congestion. Reduces installation cost and complexity, especially on roof or perimeter mounts where power runs are expensive.
• FIPS 140-2 Level 3 Secure Element and 802.1X Authentication: NXP EdgeLock SE050F certified secure element, pre-installed GlobalSign Device Certificate, and 802.1X user/host authentication protect against network spoofing and unauthorized access. HTTPS, SSL/TLS, and data encryption meet enterprise security policies and NDAA/TAA compliance frameworks.
• Flexible Recording and Multi-User Streaming: H.265/H.264/MJPEG encoding with microSDXC card backup (manual, alarm pre/post, and schedule modes). RTSP, RTP/RTCP, MQTT, and TCP/IP streaming support up to 24 simultaneous users. VBR, constant bit-rate, frame-rate control, and best-effort transmission modes let you balance network utilization against recording fidelity in bandwidth-constrained environments.

Integration and Compatibility

The WV-S8574L integrates with i-PRO IP cameras and standard outdoor IP camera ecosystems via ONVIF Profile S/T/G. Its multi-stream capability (up to 24 simultaneous connections) and audio support make it compatible with major network video recorders and VMS platforms that support RTSP/MQTT ingestion. Ensure your PoE switches provision sufficient power (25.4W per camera) and backhaul bandwidth for four parallel high-resolution streams. A camera selection and site planning guide can help calculate total bandwidth and storage needs for multi-sensor deployments.

When to Choose a Different Model

If you need higher resolution per sensor (beyond 8MP), evaluate a higher-megapixel variant in the same i-PRO surveillance line. If the deployment is indoor-only or does not require panoramic coverage, a single-sensor fixed camera will reduce cost and complexity. If you need PTZ (pan-tilt-zoom) motion for active tracking rather than fixed panoramic sight lines, consider the i-PRO PTZ family instead.

Frequently Asked Questions

Q: What does 180-degree panoramic coverage actually mean — is it stitched video or four separate streams?

A: Four independent parallel streams. Each sensor captures 8MP simultaneously with no digital stitching or compositing. You record four separate video feeds that together cover 180 degrees horizontally, eliminating the artifacts and latency issues common in stitched panoramic systems.

Q: How much storage do I need to record the WV-S8574L 24/7?

A: Storage depends on resolution, frame rate, and compression. H.265 at 4K (3840×2160) 30 fps consumes roughly half the storage of H.264 at equivalent quality. For a rough estimate, use an online bitrate calculator with your target resolution and compression codec; then multiply by 4 (four sensors). A network video recorder with RAID-5 or higher redundancy is recommended for 24/7 deployments.

Q: Does the 40-meter IR illumination light up all 180 degrees at once?

A: The integrated IR LED array illuminates the field of view of all four sensors. Coverage is widest at center and tapers toward the perimeter edges; exact pattern depends on mounting height and angle. Test in your actual environment to confirm overlap and dead zones before final installation.

Q: What is the PoE+ power budget, and will a standard 802.3at switch power it?

A: The WV-S8574L draws 25.4W at maximum and requires IEEE 802.3at PoE+ (up to 30W per port). Standard 802.3af (15W max) will not reliably power this camera. Confirm your switch is PoE+ rated and has sufficient per-port power budget before deployment.

Q: Can I adjust each of the four sensor modules independently after installation?

A: Yes. Each module supports ±125° pan, +10° to +105° tilt, ±90° yaw, and ±30° twist rotation. Fine-tuning can be done via the camera's web interface without physical disassembly.

Q: Is the WV-S8574L NDAA Section 889 compliant?

A: The camera includes a pre-installed GlobalSign Device Certificate and FIPS 140-2 Level 3 Secure Element, meeting federal cybersecurity baselines. Verify with your compliance officer and procurement team that this model is approved for your specific NDAA contract terms.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S8574L is a legitimate single-mount alternative to three or four independent fixed cameras on large perimeters, but the decision hinges on storage and network planning. Four 8MP sensors running 24/7 at 4K 30 fps will push 600–800 Mbps aggregate bitrate (uncompressed math); H.265 cuts that roughly in half, so plan for 300–400 Mbps sustained backhaul if you want full-resolution 24/7 recording. That's not trivial — confirm your network infrastructure can sustain it before you commit.

Technical Highlights:

• H.265 Compression at 4K 30 fps: The codec cuts bitrate roughly 40–60% versus H.264 at equivalent perceived quality. At 4K across four sensors, this means the difference between needing two managed network storage appliances and one; over a 3-year deployment, that's real money saved on NVR hardware.
• 0.084 Lux Color / 0.05 Lux B&W Sensitivity: This is low enough to work in parking lots, loading docks, and perimeter areas with minimal ambient light. The 40-meter IR reach covers most facility edges; the intelligent ICR (color/black-and-white switching) eliminates the 1–2 second lag you see in cheaper designs when transitioning from dusk to full night mode.
• Four Independent Adjustment Axes per Module: ±125° pan, ±105° tilt, ±90° yaw, ±30° twist means you can angle each lens post-installation via the web interface. In a real deployment, this saves installation labor and re-work. You mount once, tune four times via software.
• FIPS 140-2 Level 3 Secure Element and 802.1X Support: The NXP EdgeLock SE050F and pre-installed GlobalSign certificate meet federal cybersecurity baselines for NDAA contracts. If you're bidding government work, this is table stakes; if you're not, it's still a hedge against future policy tightening.

Deployment Considerations:

• Network Backhaul Is Non-Negotiable: Four independent 8MP streams at 30 fps demand sustained gigabit connectivity. If your facility backbone is marginal or oversubscribed, you'll have to drop to 15 fps or use lossy compression (Mid/Low bit-rate mode), which defeats the resolution advantage. Audit your network first.
• Storage Math Changes at 4K: H.265 helps, but 16MP aggregate resolution still consumes 50–100 GB per camera per day (depending on scene complexity and motion). A 90-day retention target on a single WV-S8574L requires 4.5–9 TB of usable NVR storage, plus RAID overhead. Budget accordingly; false economy on NVR size will force retention cuts that security teams later regret.
• Panoramic ≠ PTZ: This is a fixed, wide-angle design with independent module adjustment. It does not track motion, pan on alarm, or zoom. If your threat model requires active tracking (vehicle pursuit, suspect follow), you need PTZ cameras alongside this unit.

The WV-S8574L is a smart fit for facility perimeters, loading docks, parking lots, and outdoor infrastructure where you need 180-degree coverage in a single mounting location and your network and storage infrastructure can sustain four parallel high-resolution streams. Skip it if your backhaul is constrained or if you need active motion tracking.
