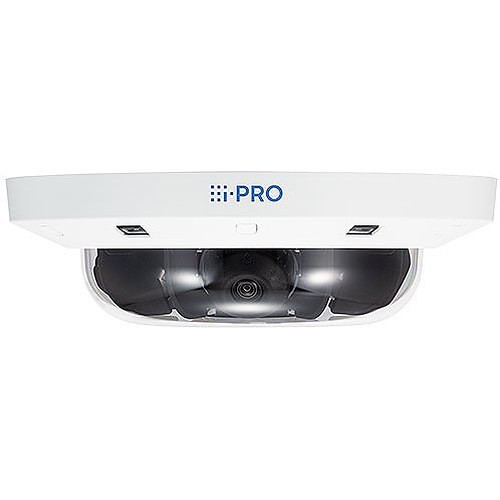

i-PRO WV-S8544L 16MP Quad-Sensor Panoramic Outdoor Dome

The i-PRO WV-S8544L (often searched as WV S8544L) combines four independent 4MP sensors in a single dome housing to deliver continuous 180° panoramic horizontal coverage without blind spots. Each 1/2.7-inch CMOS sensor captures at 2688 × 1520 resolution at 30 fps, totaling 16MP output. This architecture eliminates the need for multiple cameras to cover wide outdoor perimeters — a single mount point replaces what would traditionally require 2–3 separate units, cutting installation labor and PoE infrastructure costs. Rated IP67/IP66 with IK10 vandal resistance and active thermal management (–40°C to +60°C operating range), the WV-S8544L handles demanding industrial, campus, and critical infrastructure deployments where panoramic situational awareness and environmental durability are non-negotiable.

Key Features

• 16MP Quad-Sensor Architecture: Four independent 1/2.7-inch CMOS sensors, each 4MP (2688 × 1520 @ 16:9), enable simultaneous multi-directional observation. Zero blind spots across 180° panoramic sweep means wide perimeter coverage (parking lots, warehouse exterior, campus grounds) with a single device rather than multiple cameras and separate recordings.
• 30 fps Full-Resolution H.265 & H.264: Records all four sensors at 30 fps across all resolutions up to 2688 × 1520. H.265 codec reduces file size roughly 40–60% versus H.264 — a direct reduction in storage cost when recording 24/7 across multiple sensors. Smart Coding (GOP control, frame rate adaptation, mid/low bitrate modes) and Smart VIQS adaptive quality optimize bandwidth on congested networks without sacrificing detection-range performance.
• Motorized 2.5x Optical Zoom with 10.5x Digital Extra Zoom: 2.9–7.3mm focal range delivers 43°–100° horizontal field of view in wide position, 24°–56° vertical. Motorized zoom allows operator-controlled tele positioning for distant target identification. Detection range extends to 447.8 ft (136.5 m) in tele mode. Extra zoom extends to 10.5x at reduced resolution (640 × 360) for scene context when tele zoom is exhausted.
• IR LED Array with 20m Illumination: Integrated IR LEDs with three output levels (High/Middle/Low) reach 20 m at 30 IRE and 15 m at 50 IRE. Minimum illumination 0.12 lux (B&W, 50 IRE, F2.0) and 0 lux with IR active. Super Dynamic Range (max 108 dB) and Intelligent Auto exposure handle extreme low-light scenes (parking structures, night perimeter sweeps) without manual gain adjustment or loss of motion detection sensitivity.
• Embedded AI Analytics Suite: On-camera AI Video Motion Detection, Face Detection, People Detection, Vehicle Detection, Non-Mask Detection, Occupancy Detection, and Scene Change Detection. Audio detection with AI Sound Classification (Gunshot, Yell, Vehicle Horn, Glass Break) enables multi-modal event correlation — e.g., triggering alarm + recording on gunshot + loud yell combination. Reduces false positives and server-side processing load on large deployments.
• Mechanical Adjustment on All Four Sensors: Each camera module supports pan ±125°, tilt +10° to +105°, yaw ±90°, and twist ±30°. Field-configurable aiming means installer can adjust sight lines on-site without software recalibration or firmware updates — critical when mounting position doesn't align perfectly to design intent.
• IP67/IP66 Weather Sealing, Peltier Thermocontrol: Active Peltier element thermocontrol, integrated heater, and moisture absorption gel prevent internal condensation. Operates reliably in –40°C to +60°C ambient (power-on range –20°C to +60°C) with 10–100% humidity. Wind resistance to 40 m/s (89 mph) and IK10 shock rating meet NEMA TS2 and Type 4X standards — suitable for exposed outdoor mounting without auxiliary enclosures.
• PoE+ Single-Cable Power at 25.4W: IEEE 802.3at PoE+ Class 4 device consuming 470 mA @ 54 V DC (25.4 W typical). Runs on a single cable without separate power supply or injectors, simplifying runs over extended distances and reducing junction points prone to corrosion.
• Dual Audio I/O & Three-Terminal Alarm Output: 3.5 mm stereo mic input (plug-in power, –48 dB ±3 dB sensitivity) and monaural audio output. Supports G.726 (16/32 kbps), G.711 (64 kbps), and AAC-LC (64–128 kbps) compression. Three independent alarm terminals support VMD, SCD, and audio-triggered relay events — integrates directly into access control or external alarm panels without intermediary controllers.
• Enterprise Cybersecurity Certification: FIPS 140-2 Level 3 Certified Secure Element (NXP EdgeLock SE050F), GlobalSign pre-installed device certificate, 802.1X authentication, HTTPS/SSL/TLS encryption. IPv4/IPv6 and SNMP v1/v2/v3 support for integration into managed security operations centers. Firmware signing and secure boot prevent unauthorized code execution.
• Onboard SD Card Backup with Scheduled & Alarm Recording: Supports schedule-based or alarm-triggered local backup to microSD card, providing failsafe recording when NVR/cloud connectivity is temporarily interrupted. Reduces reliance on continuous network availability for compliance-critical deployments.

Integration & Compatibility

Outdoor IP cameras like the WV-S8544L integrate via ONVIF Profile S and T, supporting connection to any ONVIF-compliant VMS (Milestone XProtect, Genetec Security Center, Hanwha SmartVMS, etc.). Dual audio I/O and three-terminal alarm output enable integration with third-party access control panels, intercoms, and external relay logic. Firmware signing and FIPS 140-2 certification satisfy regulatory requirements in finance, healthcare, and critical infrastructure environments. For NVR deployments, the WV-S8544L's 25.4 W PoE+ draw and H.265 output work within typical PoE switch and storage budgets — approximately 50–60% storage savings versus H.264 per camera depending on scene complexity and bitrate tuning.

Consult your camera selection guide for lens, coverage, and scene-specific decision trees. The WV-S8544L suits perimeter coverage, parking lot surveillance, and wide-angle industrial observation; for detailed facial recognition or vehicle plate reading at distance, consider higher-resolution single-sensor variants from the i-PRO catalog.

Frequently Asked Questions

Q: What is the maximum range for the WV-S8544L IR illumination?

A: The integrated IR LED array reaches 20 m at 30 IRE and 15 m at 50 IRE (IRE = IRE standard). Coverage extends further in clear conditions and shorter in high-humidity or dusty environments. For longer-distance IR (30+ m), consider external IR illumination or a dedicated IR variant within the i-PRO family.

Q: Does the WV-S8544L support ONVIF?

A: Yes. The WV-S8544L supports ONVIF Profile S and T, enabling integration with any ONVIF-compliant VMS including Milestone, Genetec, Axis, Hikvision, and others. Configure IP address, RTSP stream URL, and credentials in your VMS to begin recording.

Q: Can I control the zoom and pan/tilt remotely?

A: Yes. Each of the four sensor modules supports motorized 2.5x zoom and mechanical adjustment (pan ±125°, tilt +10° to +105°, yaw ±90°, twist ±30°). Zoom control is typically available through the VMS interface if the VMS supports PTZ profile commands. Mechanical adjustment is normally field-configured at installation; some adjustment can be controlled via HTTP API depending on VMS implementation.

Q: What is the power consumption of the WV-S8544L?

A: The WV-S8544L draws 25.4 W typical at 54 V DC (470 mA @ 54 V), classified as IEEE 802.3at PoE+ Class 4. This permits single-cable PoE deployment without auxiliary power supplies over distances supported by your switch's PoE budget.

Q: Is the WV-S8544L certified for compliance (FIPS, FCC, CE)?

A: The WV-S8544L includes FIPS 140-2 Level 3 Certified Secure Element (NXP EdgeLock SE050F), GlobalSign pre-installed device certificate, and 802.1X authentication. Consult the manufacturer datasheet or compliance statement for full FCC, CE, and regional regulatory certifications.

Q: What video codecs does the WV-S8544L support?

A: The WV-S8544L supports H.265 (HEVC), H.264 (AVC), and MJPEG. H.265 reduces file size approximately 40–60% versus H.264, lowering storage and bandwidth costs in 24/7 continuous recording deployments. Smart Coding and Smart VIQS adaptive quality optimize bitrate for scene conditions.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S8544L is a genuinely clever approach to wide-area outdoor coverage: four sensors, one enclosure, one PoE feed, zero blind spots across 180°. That architecture solves a real problem — parking lots and perimeters that traditionally demand 2–3 separate cameras, separate recordings, and installation complexity. The quad-sensor design with integrated motorized zoom and mechanical adjustment on each module gives you both panoramic situational awareness and the ability to tele-zoom into distant events without switching camera feeds.

Technical Highlights:

• H.265 + Smart Coding: 40–60% storage reduction versus H.264 at equivalent quality is not marketing math — it's a direct consequence of HEVC bitrate efficiency. On a 24/7 deployment with 16MP quad-sensor output, that compounds fast. Pair with Smart VIQS adaptive quality and you're tuning bitrate per-scene rather than global fixed rate.
• Quad-Sensor Simultaneity at 30 fps: All four 4MP sensors stream at 30 fps independently. This means no frame-dropping, no frame-rate negotiation between sensors — simultaneous capture of all four angles 24/7. Useful for incident reconstruction where timeline precision matters (vehicle entry/exit, package theft, crowd surge).
• IP67/IP66 + Active Thermocontrol: Peltier element + integrated heater + moisture gel is a more aggressive approach than passive gasket sealing. In humid or coastal environments, that active management prevents condensation buildup inside the lens optics, which degrades image quality faster than external weathering.
• Motorized 2.5x Zoom + Mechanical Adjustment: You get both electrical zoom control (via VMS if supported) and manual field adjustment (pan ±125°, tilt +10° to +105°, yaw ±90°, twist ±30°). That dual capability means installers can aim each module independently at mount time without recalibration — critical when pole-mounted at angle.

Deployment Considerations:

• Bandwidth Footprint: Four simultaneous 4MP streams at 30 fps, even H.265-compressed, demand careful NVR recording strategy. Set up tiered bitrate profiles: high for alarm periods, low for 24/7 baseline. Don't assume a single PoE+ switch port can also backhaul four simultaneous unicast streams to an NVR on a different VLAN without congestion.
• Zoom Trade-off: Motorized 2.5x optical zoom is usable but not aggressive. If your incident-response workflow demands consistent facial or plate detail at 50+ m, this is not the tool — single high-res sensors with longer optics (e.g., 8–40 mm varifocal) will outperform the zoom range here. The WV-S8544L excels at "what happened in the parking lot" not "who was it."
• Mechanical Adjustment Learning Curve: Field adjustment on four independent modules requires discipline and documentation. Mark each module's final aiming (tilt angle, pan offset, yaw) on site. Future maintenance or recalibration becomes easier if you photograph the final settings or log them to your installation sheet.

Best fit: perimeter surveillance (warehouse docks, campus grounds, parking structure exterior), critical infrastructure wide-area observation (utility substations, chemical plant fencelines), and campus security where blind-spot elimination and single-device coverage reduce installation footprint. Not recommended for detail-focused recognition (facial ID, plate reading) or indoor low-light scenes requiring extreme zoom performance.

Key Specifications:
Field of View: 43-100° horizontal, 24-56° vertical
Color: White
