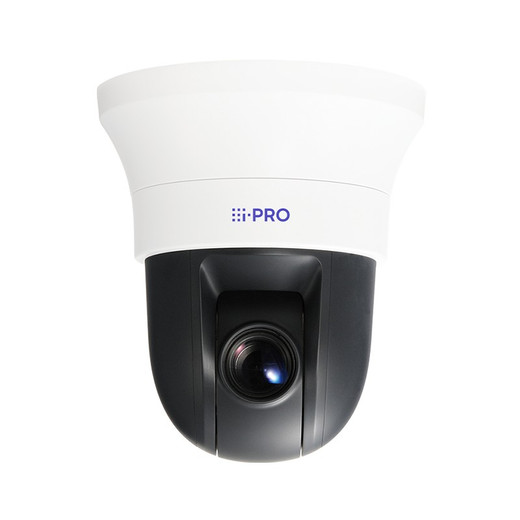

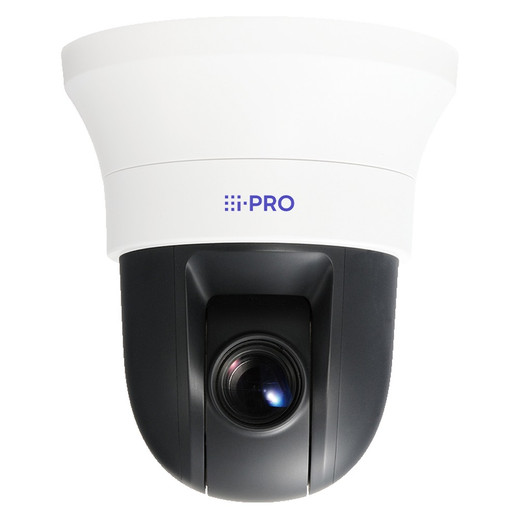

i-PRO WV-S61302-Z4 2MP Indoor AI PTZ IP Camera

i-PRO WV-S61302-Z4 2MP Indoor AI PTZ IP Camera

The i-PRO WV-S61302-Z4 is a motorized indoor PTZ camera designed for facilities requiring wide-area overview coverage combined with precision zoom capability and edge-based AI threat detection. Built on the Ambarella CV25M System-on-Chip, this 2MP dome camera delivers 40x optical zoom spanning 4.25–170mm focal length, 360° endless panning, and comprehensive onboard analytics without external server dependencies. The 144dB dynamic range via Super Dynamic Processing handles extreme lighting transitions—critical in facilities with skylights, retail showrooms, or airport terminals where backlit subjects regularly appear and disappear.

Key Features

• 2MP Resolution with Extended Detection Range: 1920×1080 sensor captures actionable detail at distances most fixed cameras cannot reach. Wide-angle detection extends to 60.3 meters; telephoto mode identifies subjects at 209.5 meters. If coverage spans multiple zones (concourse to entrance, warehouse floor to loading dock), the WV-S61302-Z4 reduces the need for additional fixed cameras in those zones.
• 40x Motorized Optical Zoom (4.25–170mm): Span from 66° wide-angle coverage to 1.9° extreme telephoto without digital degradation. Pan speeds reach 150°/second in manual mode, 500°/second during preset transitions. With 256 preset positions, you can automate multi-point patrol sequences or rapid incident response without operator input. This dramatically accelerates investigation response in large facilities.
• 144dB Dynamic Range via Super Dynamic Processing: Backlight and highlight washout are eliminated across 32-level intensity control, paired with Adaptive Black Stretch and Intelligent Auto exposure. A practical example: a subject silhouetted against a glass storefront wall remains identifiable—you don't lose detail in shadows while bright reflections are held in check. Essential for retail loss prevention and transit security.
• Comprehensive Onboard AI Analytics: AI Video Motion Detection, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non-Mask Detection, AI Occupancy Detection, AI Scene Change Detection, and AI Sound Classification (gunshot, yell, vehicle horn, glass break) run locally on the camera. No external deep-learning server required; alerts trigger immediately, reducing response latency and bandwidth overhead on your network.
• Exceptional Low-Light Performance: Minimum illumination of 0.0004 lux (black and white, 50IRE, F1.6, 16/30s exposure) with built-in IR night vision and automatic day/night ICR switching. Image stabilizer with integrated gyro sensor smooths video during pan/tilt operations, preventing jerky pursuit footage. A camera with unstable panning is difficult to investigate—this feature directly improves usability during fast-motion tracking.
• 360° Endless Panning with Extended Vertical Tilt: Full hemisphere coverage via -25° to +205° vertical range. Auto track, auto pan, preset sequence, and patrol modes enable unattended monitoring. In a warehouse receiving area or airport concourse, the camera can autonomously sweep assigned zones without human intervention, freeing staff for other tasks.
• PoE and Compact Power Footprint: Single IEEE 802.3af PoE cable (Class 0, 12.95W draw) or standalone DC12V (11.6W). Low power consumption means even modest PoE switches can handle multiple units without oversubscription. Operates across -10°C to +50°C—adequate for most climate-controlled indoor spaces.
• Enterprise Security Architecture: FIPS 140-2 Level 3 Certified Secure Element, HTTPS encryption, 802.1X authentication, and ONVIF Profile G/M/S/T support ensure compatibility with mainstream VMS platforms (Milestone XProtect, Genetec, i-PRO storage) and network security standards. Dual codec (H.265/H.264) with MJPEG fallback and microSD local recording provide flexibility in bandwidth-constrained or hybrid-cloud architectures.

Integration and Compatibility

H.265 compression reduces storage bandwidth roughly 40–60% versus H.264 across typical surveillance scenes, a meaningful savings when archiving 24/7 video at 2MP resolution across dozens of cameras. Bi-directional audio (G.726, G.711, AAC-LC) and three alarm inputs enable two-way intercom and rapid incident response workflows. Up to 14 simultaneous users via 10/100 Base-TX Ethernet; IPv4/IPv6 support with TCP/IP, RTSP, MQTT, and SNMP integration for edge analytics and enterprise management systems.

Ideal Deployment Scenarios

The WV-S61302-Z4 excels in large indoor spaces where a single camera must cover wide areas with the flexibility to zoom into specific zones for incident verification. Typical installations include airport terminals and transit hubs (baggage claim, concourse intersections), large retail environments (showroom floor, high-value merchandise zones), warehouse receiving and staging areas, conference centers and large meeting halls, and government building atriums or secure corridors. The onboard AI and rapid preset panning make it particularly valuable for scenarios where real-time alerting and operator intervention are necessary.

Frequently Asked Questions

Q: Does the WV-S61302-Z4 support ONVIF Profile S or T?

A: Yes. The camera supports ONVIF Profile G, M, S, and T, enabling compatibility with major VMS platforms including Milestone XProtect, Genetec, and others that implement standard ONVIF discovery and streaming protocols.

Q: What is the maximum range at which the camera can identify a person?

A: In wide mode, identification is possible at up to 209.5 meters (687.4 feet). In telephoto mode, this range extends significantly, though exact distance depends on lighting and the specific zoom position selected.

Q: Can I record video locally on the WV-S61302-Z4?

A: Yes. The camera supports microSD card recording with pre- and post-alarm buffering, allowing local backup without reliance on a network-attached storage system. Useful for redundancy in bandwidth-limited deployments.

Q: Does the camera include IR illumination for nighttime operation?

A: Yes. Built-in IR night vision with automatic day/night ICR switching enables surveillance in low-light conditions without external lighting infrastructure. Minimum illumination reaches 0.0004 lux in black and white mode with IR enabled.

Q: What power options are available?

A: The WV-S61302-Z4 can be powered via standard IEEE 802.3af PoE (12.95W max) or standalone DC12V (11.6W). PoE is the preferred option for single-cable deployments; DC12V suits applications where PoE infrastructure is unavailable.

Q: Is this camera suitable for outdoor use?

A: No. The WV-S61302-Z4 is rated for indoor environments only. For outdoor PTZ requirements, consult an outdoor-rated variant in the i-PRO PTZ camera family.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S61302-Z4 (often searched as WV S61302 Z4) is a solid tactical choice for medium-to-large indoor surveillance where operator-driven zoom and preset automation matter. The 144dB dynamic range is genuinely useful in mixed-lighting spaces—that level of headroom eliminates the common frustration of losing detail in shadows when highlights are properly exposed. The 40x zoom span and sub-14W PoE draw are competitive, and onboard AI removes the need for external analytics servers in most deployments.

Technical Highlights:

• 144dB Dynamic Range via Super Dynamic Processing: Handles extreme backlight and reflective surfaces without requiring separate lighting adjustment or manual exposure bracketing. In retail or transit environments with skylights or glass walls, this translates directly to fewer dark investigations and faster incident review cycles.
• 0.0004 lux minimum illumination (IR on): Enables full-color detail in daylight down to near-total darkness. Most cameras rated at 0.001 lux or higher require supplemental lighting or accept significant noise. This spec matters if your facility has unlit storage zones or runs 24/7 without perimeter lighting.
• H.265 dual-codec architecture: If your VMS and storage support H.265, you reduce bandwidth 40–60% versus H.264 at equal quality. If you're recording 24/7 on a modest gigabit switch or hybrid cloud setup, this isn't trivial. Legacy VMS platforms may require H.264 fallback—confirm codec support before purchase.
• 12.95W PoE+ budget: Standard 802.3af (Class 0) draw means even a 60-watt switch can power 4–5 cameras safely. No PoE+ injectors or switch upgrades required in most small-to-medium deployments.

Deployment Considerations:

• Indoor-only rating: Do not attempt outdoor or semi-outdoor (covered but exposed to weather) mounting. The WV-S61302-Z4 lacks IP67 rating and will fail in rain or high humidity. If you need outdoor PTZ, stop here and check the i-PRO outdoor PTZ family.
• Preset sequencing requires initial calibration: The 256-preset capacity is powerful, but you must spend time in setup mode positioning the camera at key points and assigning alarm triggers. If you expect 'point-and-play' performance, you'll be disappointed. Budget 2–4 hours for proper configuration in a large facility.
• MicroSD reliability: Local microSD recording is useful for backup, but microSD cards are not enterprise-grade storage. Don't rely on microSD as your primary archive—pair it with network recording on an NVR or cloud vault for resilience.

Deploy the WV-S61302-Z4 in airport terminals, large retail showrooms, warehouse staging areas, or government building atriums where a single operator-controlled PTZ camera must provide both wide overview and precision zoom for incident investigation. The onboard AI and rapid pan/tilt response make it well-suited to real-time monitoring workflows, not 'set it and forget it' passive surveillance.
