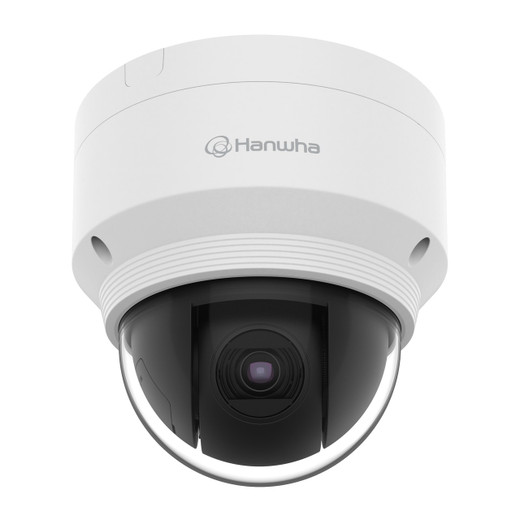

Hanwha XNP-6120HW 2MP Outdoor AI PTZ Camera

Hanwha XNP-6120HW 2MP Outdoor AI PTZ Camera

The Hanwha XNP-6120HW is a compact outdoor PTZ dome engineered for active perimeter surveillance where operators need to pivot from wide-area situational awareness to targeted long-range inspection without repositioning hardware. Built on a 1/2.8-inch CMOS sensor, it delivers 1920×1080 resolution at 60fps with a 12x optical zoom lens spanning 5.2–62.4mm, enabling detection work across 74.4m at wide angle and 829.7m at telephoto. The 150dB wide dynamic range handles high-contrast scenes (bright skies, dark entry points, reflective surfaces) without washout, while 0.003 lux B/W sensitivity paired with 1.5m integrated IR illumination covers gate and entry-point night operations effectively. IP66 and IK10ratings protect against rain, dust, and deliberate impact, making the XNP-6120HW suitable for exposed rooftop, pole, and perimeter mounting in industrial and commercial outdoor environments.

Key Features

• 12x Optical Zoom (5.2–62.4mm): Covers 54.58° horizontal field of view at wide angle and 5.30° at telephoto. This single lens eliminates the need for separate cameras at different focal lengths, reducing mounting points and simplifying installation while maintaining 350°/sec pan/tilt speed for active tracking.
• 360° Endless Pan, -5° to 185° Tilt: Uninterrupted horizontal rotation and nearly complete vertical coverage enable full perimeter monitoring from a single fixed mount. No dead zones on rooftops or pole installations.
• 150dB Wide Dynamic Range: Renders detail in both highlight and shadow simultaneously—critical when cameras face mixed light sources (bright exterior walls, dark recessed entry doors, security bollard shadows). Eliminates the need to manually adjust exposure between daytime and twilight shifts.
• 0.003 lux B/W Sensitivity with 1.5m IR: Operates in complete darkness with integrated IR, though the 1.5m effective range limits night identification detail to close-proximity areas. Suitable for gate/entry scenarios; longer-range night identification requires higher lux performance or auxiliary IR.
• IP66 Weatherproof, IK10 Vandal-Resistant: Direct rain and dust won't compromise operation; IK10 withstands deliberate impact (equivalent to a 5kg weight dropped 2 meters). Aluminum housing resists salt-spray corrosion in coastal or industrial settings.
• IEEE 802.3af PoE Class 3 at 12W Max: Draws minimal power, eliminating the need for dedicated 24VDC infrastructure. Multiple XNP-6120HW units can stack on a single modest PoE switch without exhausting the power budget—a real advantage in retrofit deployments where electrical runs are limited.
• H.265, H.264, and MJPEG Compression: H.265 cuts bitrate roughly 40–50% compared to H.264 for the same quality, reducing storage demands and network bandwidth. Matters when storing 24/7 across 10+ outdoor cameras or distributing over limited WAN links.
• microSD/SDHC/SDXC Edge Storage up to 512GB: Dual slots support local recording and failover without centralized NVR dependency. Useful for remote sites or temporary surveillance where recorder unavailability is acceptable.
• Bi-Directional Audio and ONVIF: Built-in mic and speaker enable two-way communication with personnel at gates or entry points. ONVIF ensures integration into heterogeneous VMS platforms (Milestone XProtect, Genetec, Axis Camera Station, etc.) without vendor lock-in.
• Operating Range -30°C to +55°C: Maintains performance across seasons without thermal cycling shutdowns. Suitable for unheated outdoor cabinets or exposed pole mounts in temperate and cold climates.

Optical Performance and Coverage

The 1.5m minimum object distance eliminates close-focus constraints typical in varifocal designs—standard for outdoor mounting heights. At wide angle (54.58° FOV), detection extends to 74.4m; at telephoto (5.30° FOV), identification capability reaches 83.0m. These ranges assume standard ASIS International detection/identification criteria; actual performance depends on scene contrast, lighting, and target clothing. Operators should factor in that night IR range (1.5m) falls far short of telephoto distance, so long-range night identification is not viable without additional lighting.

Integration and Compatibility

PoE Class 3 via standard RJ-45 10/100BASE-T Ethernet eliminates dual-cable runs and simplifies retrofit work. HTTPS encryption and ONVIF Profile S compliance support secure integration into enterprise security ecosystems. Edge storage via microSD provides optional failover recording without NVR dependency—useful for sites where centralized video infrastructure is unavailable or undesired. The camera's 12W power envelope permits deployment on budget PoE switches in small to mid-size installations without dedicated power injection.

When to Choose a Different Model

The 2MP resolution and 1.5m IR range impose hard limits on facial identification and long-distance night detection. If your deployment requires facial detail beyond 40–50m, or night identification beyond 30–40m, upgrade to a higher-resolution variant in the Hanwha IP camera lineup. If you need IP67 (full submersion) or cooled IR with 50m+ range, consider a higher-tier PTZ camera. If your site has no network infrastructure and requires analog output, this is not the right product—the XNP-6120HW is network-native and requires Ethernet connectivity.

Frequently Asked Questions

Q: Can the XNP-6120HW be wall-mounted horizontally?

A: Yes. The compact aluminum dome supports wall, ceiling, and pole mounting. Ensure the mounting bracket or housing provides adequate drainage and does not obstruct the IR emitter (located on the dome front) or the microSD card access panel (typically on the back or side of the base).

Q: What is the maximum cable run from a PoE switch to the camera?

A: Standard Ethernet runs up to 100 meters (328 feet) per IEEE 802.3. PoE power delivery is reliable to approximately 90–95 meters; beyond that, voltage drop may prevent reliable operation. For distances approaching 100m, verify PoE switch specifications and consider a powered PoE injector or extender.

Q: Does the XNP-6120HW support facial recognition analytics?

A: The camera supports ONVIF-compatible analytics engines and edge-based detection (object, motion, line crossing, intrusion). Facial recognition typically requires third-party VMS software or specialized analytics appliances, not on-camera processing. 2MP resolution also limits facial detail; expect reliable face matching only within 30–40m under good lighting.

Q: How long can microSD cards retain data in outdoor heat?

A: Most industrial-grade microSD cards are rated for continuous operation to +70°C; the camera's operating range is -30°C to +55°C, so thermal stress is within spec. Expect microSD longevity (write cycles before failure) to degrade in sustained high heat; plan for annual replacement in extreme climates. For mission-critical 24/7 recording, use edge storage as temporary failover only and back up to centralized NVR.

Q: Is the XNP-6120HW NDAA Section 889 compliant?

A: Hanwha (South Korean manufacturer) products are not on the NDAA Section 889 exclusion list. If your procurement requires documented NDAA compliance or TAA eligibility, contact the distributor for the most current certification status, as requirements evolve. Do not assume compliance without written confirmation.

Q: What frame rate does the camera deliver at full 1920×1080 resolution?

A: 60fps at 1920×1080 (2MP). Higher frame rates improve motion smoothness for fast pan/tilt tracking and reduce motion blur in low-light scenes. This makes the XNP-6120HW suitable for active perimeter monitoring where operators may track moving targets.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNP-6120HW occupies a pragmatic middle ground in compact outdoor PTZ design. Its 12x optical zoom and 350°/sec pan/tilt speed enable active threat response without the power draw, cooling complexity, or capital cost of full-scale 30x+ PTZ units. The 150dB WDR and 0.003 lux B/W sensitivity handle the toughest outdoor lighting scenarios—dawn backlit entry points, dusk perimeter scans, and high-contrast reflective surfaces—without operator intervention. At 12W max power draw, this camera won't stress a modest access switch, which is a meaningful advantage when retrofit-installing across a 30+ camera perimeter.

Technical Highlights:

• 1920×1080 @ 60fps: Delivers fluid motion during pan/tilt tracking and minimizes motion blur in low-light conditions—essential when operators need to follow a moving subject or when night-mode frame rate drops occur.
• H.265 compression: Reduces bitrate by 40–50% versus H.264 for equivalent quality. On a 24/7 perimeter deployment, this translates to measurable storage savings and reduced WAN traffic for remote site monitoring.
• PoE Class 3 (12W) via 802.3af: No separate 24VDC power or PoE+ injection needed. A single gigabit PoE switch can power 8–12 of these cameras without exhausting per-port budgets.
• IP66 + IK10: Withstands direct rain and deliberate strikes; aluminum construction resists coastal salt spray and industrial dust without degradation.

Deployment Considerations:

• The 1.5m IR range is its hardest limit. Expect night identification detail only to 20–30m; beyond that, IR illumination becomes too sparse for facial or license-plate work. If your site requires 50m+ night detection, you need auxiliary IR or a higher-tier camera.
• 2MP resolution and 0.003 lux sensitivity are well-matched for perimeter scanning and motion detection, but facial recognition across 60m+ requires a higher-megapixel variant or multiple overlapping cameras at closer range.
• The -5° to +185° tilt range covers nearly complete vertical travel, but the -5° lower limit means the camera cannot look straight down if mounted below roof height. Verify mounting height and tilt angle before installation.

Best positioned for mid-tier outdoor surveillance where broad perimeter coverage, compact form factor, low power consumption, and active pan/tilt control outweigh resolution demands. Industrial sites, warehouse perimeters, port facilities, and commercial real estate with modest night-detection requirements will see strong ROI. Pair it with a network video recorder supporting H.265 and ONVIF to maximize edge-storage failover and bitrate efficiency.

Key Specifications:
Color: White
