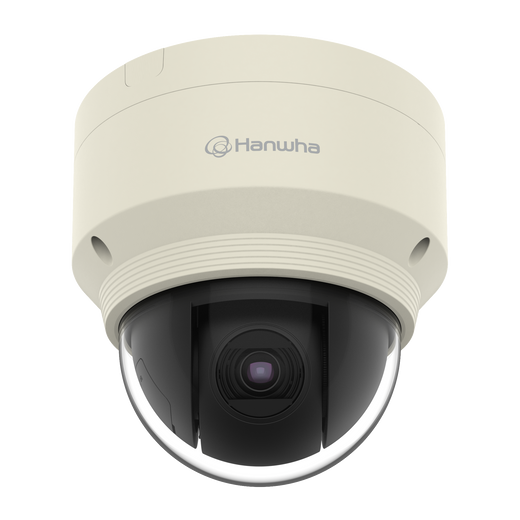

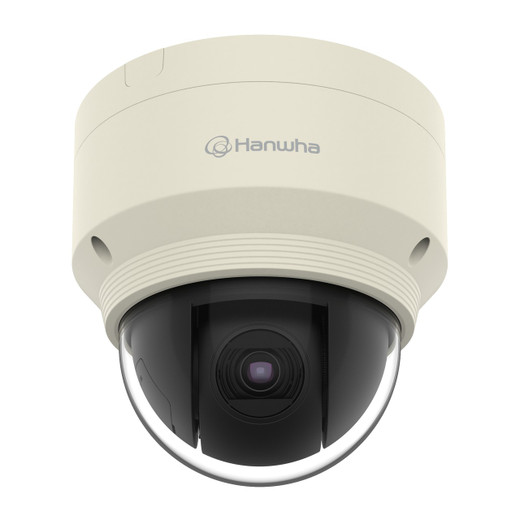

Hanwha XNP-6120H 2MP Outdoor PTZ Dome Camera

Hanwha XNP-6120H 2MP Outdoor PTZ Dome Camera

The Hanwha XNP-6120H is a compact mini PTZ dome camera engineered for professional outdoor surveillance in demanding environments. With 2MP resolution, 12x optical zoom, and 360° endless pan capability, it delivers flexible, high-performance monitoring for expansive commercial properties, parking facilities, and campus perimeters. Built for 24/7 operation with advanced day/night technology and robust weatherproofing, the XNP-6120H combines affordability with enterprise-grade surveillance features.

Key Features

• 12x Optical Zoom (32x Digital, 512x Total): Extensive zoom capability enables precise identification and monitoring across large outdoor areas without resolution loss
• 2MP 1/2.8" CMOS Sensor: 1920×1080 native resolution with support for multiple output formats up to 60fps H.265/H.264
• 360° Endless Pan & 190° Tilt: Full directional coverage with preset accuracy of ±0.2° and preset/manual pan speeds up to 350°/sec
• Day/Night Auto ICR Mode: Seamless transition between color and B/W imaging with 0.003 Lux minimum illumination in night mode
• Wide Dynamic Range (150dB): WDR, HLC, BLC, and SSDR technologies preserve detail in high-contrast lighting conditions
• IP66/IK10 Certified: Fully sealed against dust and water; vandal-resistant design rated for harsh outdoor environments
• PoE Powered (Class 3): Single cable for power and data; maximum 12W consumption
• Built-in Gyro Stabilization: Digital image stabilization reduces vibration artifacts in moving scenes
• Advanced Analytics: Motion detection, directional detection, face detection, tampering alerts, loitering, virtual line crossing, and audio detection
• Dual Edge Storage: Two microSD/SDHC/SDXC slots supporting up to 512GB total capacity for local recording
• Auto Tracking Support: Intelligent tracking of moving subjects within defined zones
• Multiple Protocol Support: ONVIF Profile S/G/T, Wisenet open platform, SUNAPI HTTP API for broad integration flexibility

Technical Specifications

Imaging: F1.6 (wide) to F3.0 (tele) aperture; DC auto iris lens; one-shot autofocus; 54.58° horizontal field of view (wide) to 5.30° (tele); minimum object distance 1.5m (wide) to 2.0m (tele).

Video Compression: H.265, H.264 (Main/High profile), MJPEG with configurable CBR/VBR bitrate control and WiseStreamII smart codec for bandwidth optimization.

Connectivity: 10/100BASE-T Ethernet RJ-45; RS-485 serial control (Samsung-T, Pelco-D/P, Panasonic, Bosch, Honeywell, and other protocols); 1 alarm input, 1 alarm output; audio in/out support.

Security: HTTPS/SSL encryption, Digest authentication, IP filtering, 802.1X (EAP-TLS/EAP-LEAP), user access logging.

Environmental: Operating temperature -30°C to +55°C; up to 90% RH (non-condensing); compact 168mm dome housing (1.9kg); aluminum construction with ivory finish.

Applications

Ideal for retail parking lots, warehouse perimeters, university campuses, municipal facilities, and any outdoor installation requiring zoom flexibility and reliable all-weather performance. The combination of 12x optical zoom, comprehensive PTZ control, analytics, and edge storage makes it suitable for sites where capturing fine detail and autonomous event recording are critical.

Karl Wilson

The XNP-6120H strikes a practical balance between cost and capability. Its 2MP sensor with 12x zoom reaches 829.7m detection range (telephoto), adequate for most mid-to-large outdoor deployments. The 150dB WDR and SSDR noise reduction address real outdoor challenges—backlighting, lens flare, and motion blur.

Preset accuracy of ±0.2° ensures reliable position recall, essential for guard tours and alarm response. Native H.265 encoding and WiseStreamII codec reduce bandwidth demand, critical for sites with limited network infrastructure. Dual microSD slots allow continuous edge recording with failover capability.

ONVIF and Wisenet API compatibility enables integration into multi-vendor environments. The 12W PoE Class 3 power consumption is efficient, supporting longer cable runs. For organizations balancing surveillance coverage with budget constraints, this camera delivers dependable outdoor monitoring with built-in intelligence and flexible deployment options.
