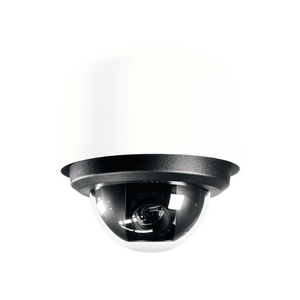

Pelco SPDE8-2X30-PD0 2MP 30x PTZ Pendant Dome
The Pelco SPDE8-2X30-PD0 is a 2MP PTZ dome camera engineered for pendant (surface-mount) installation in large interior spaces where a single vantage point must cover expansive areas. The pendant form factor eliminates the need for ceiling cutouts, making it practical for retrofits and new builds in facilities with exposed or drop ceilings. With 30× optical zoom, continuous 360° pan, and -90° to +1° tilt range, this PTZ camera delivers comprehensive area coverage from one mounting location without visible infrastructure modifications.
Key Features
- 2MP resolution at 60 fps: Captures 1920 × 1080 at full frame rate, delivering crisp detail across the entire zoom range. At 60 fps, motion blur is minimized during pan-tilt sequences and in high-activity environments, so forensic review remains sharp even at playback speeds.
- 30× optical zoom (4.7–141 mm): Reads license plates and faces from 60+ feet away without pixelation loss that comes with digital zoom. You maintain 2MP detail across the entire focal range—critical when you need to zoom in on distant areas without sacrificing image quality.
- 120 dB SureVision wide dynamic range: In scenes with bright windows and dark shadows, SureVision prevents washout and shadow crush. Retail and warehouse environments with mixed indoor-outdoor sight lines benefit immediately—you see detail in both the brightly lit loading dock and the dim shelving unit simultaneously.
- 360° continuous pan, -90° to +1° tilt: Full azimuth coverage means one camera replaces what might require two or three fixed cameras. Tilt range includes nearly vertical downward (-90°) for overhead mounting, and +1° allows slight upward viewing for perimeter scanning without dead zones.
- 256 preset positions and patrol tours: Reduces operator workload. Program the camera to cycle through high-interest areas on a schedule, or jump to a preset with a single click when an alarm triggers. Patrol tours run unattended during slow periods.
- H.265, H.264, and Motion JPEG compression: H.265 cuts bandwidth and storage roughly in half compared to H.264 for the same quality—a tangible saving on 24/7 multi-camera systems. Motion JPEG is useful for archival or legacy VMS systems that lack H.265 support.
- Smart Analytics and motion detection onboard: Built-in analytics reduce false alarms and server load. Edge processing means you flag events at the camera before streaming to the NVR, freeing recorder CPU and bandwidth for other cameras.
- ONVIF Profile S, T, G, and M compliance: Integrates with management platforms from Milestone, Genetec, and others without proprietary plugins. Multi-vendor environments remain flexible and future-proof.
- IP52 ingress protection, IK10 impact resistance: IP52 withstands dust and splash but not direct washdown—appropriate for indoor facilities. IK10 means the pendant dome resists hammer blows and rough handling; vandal-resistant for public-facing or high-traffic areas.
- PoE++ powered: Draws sufficient power from a high-power PoE switch (802.3bt Class 4 capable), eliminating separate power supplies and reducing cable runs. Pendant mounting already keeps the cable path clean; PoE means no additional conduit.
- 0.018 lux low-light sensitivity with integrated IR and day/night switching: In dimly lit warehouses or after-hours spaces, integrated infrared IR illumination engages automatically. Day/night switching optimizes the sensor—color in daylight, monochrome and IR-enhanced at night.
- Operating range -10°C to +60°C: Suitable for heated and cooled indoor spaces; verify that your climate-controlled environment stays within this band, as outdoor pendant mounts or unheated spaces may exceed the lower limit.
Integration & Compatibility
The SPDE8-2X30-PD0 supports network video recorders and VMS platforms via ONVIF Profiles S, T, G, and M. Ethernet connectivity is wired only—no WiFi. USB port is available for future firmware or accessory extensions. microSD card slot allows local backup or edge recording if the NVR connection drops. The camera integrates with PoE++ switches rated for Class 4 power delivery; confirm your switch supports 90W per port if planning multiple high-power PTZ domes on one device.
When to Choose a Different Model
If your space requires outdoor weather resistance (rain, snow, salt spray), step up to the weatherized variant in the Spectra Enhanced 8 family—the SPDE8-2X30-PD0 is indoor-rated (IP52). If 2MP resolution is insufficient and you need 4K+ detail across the zoom range, consider higher-megapixel PTZ variants in the same Pelco line. If your NVR platform lacks ONVIF support or requires proprietary plugins, verify compatibility before purchase—ONVIF eliminates vendor lock-in but your existing system must already speak the protocol.
Frequently Asked Questions
Q: Can the SPDE8-2X30-PD0 be wall-mounted, or is it ceiling-only?
A: The pendant form factor allows both ceiling and wall mounting via bracket extensions. Pendant mounting suits exposed or drop ceilings; wall mounting works for perimeter scanning in retail or warehouse spaces. Confirm your mounting structure can support the dome weight before installation.
Q: What is the warranty on the SPDE8-2X30-PD0?
A: The evidence indicates a 5-year warranty is included. Verify with your supplier for regional variations or extended coverage options.
Q: Does the SPDE8-2X30-PD0 work with Milestone XProtect or Genetec Security Center?
A: Yes. ONVIF Profile S, T, G, and M compliance means it integrates with Milestone, Genetec, and other mainstream VMS platforms without proprietary drivers. Test integration in your lab before full deployment to confirm preset and analytics pass-through.
Q: What is the maximum infrared range on the SPDE8-2X30-PD0?
A: The evidence specifies integrated IR with 0.018 lux low-light sensitivity and day/night switching, but does not provide a maximum IR range in meters or feet. Consult the manufacturer datasheet or contact technical support for exact illumination distance in your intended indoor space.
Q: Is the SPDE8-2X30-PD0 suitable for outdoor use?
A: No. IP52 rating means it resists dust and splash, but is not rated for direct rain or snow. Outdoor applications require IP66 or higher. Consider weatherized variants in the Spectra family for exterior mounting.
Q: How much bandwidth does the SPDE8-2X30-PD0 consume when streaming H.265?
A: Bandwidth depends on resolution, frame rate, scene complexity, and bitrate settings. H.265 typically cuts bandwidth 40–60% versus H.264 for identical quality. Test your NVR and network with expected scene content and zoom patterns before committing multi-camera deployments.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SPDE8-2X30-PD0 is a workhorse PTZ for facilities managers who need to cover 5,000+ sq ft from a single pendant mount. The 30× zoom and 360° continuous pan eliminate the guesswork of fixed-camera placement, and the pendant form factor means you don't have to saw through finished ceilings. At 2MP and 60 fps, it's not a 4K powerhouse, but the detail holds up across the entire focal range—critical when you're zooming from a wide overview to read a document 80 feet away.
Technical Highlights:
- 120 dB SureVision WDR: The dynamic range handling is why you choose this over a cheaper PTZ. Retail and warehouse environments with mixed indoor-outdoor sightlines (think glass loading docks with bright exterior and dim interior) will show detail in both the blown-out window and the shadowy shelf simultaneously. You avoid the common trap of choosing between readable foreground or readable background.
- H.265 compression with on-board analytics: Reduces storage by ~50% versus H.264, which compounds fast across a multi-camera system. Edge analytics flag motion and objects before streaming to the NVR, meaning your recorder's CPU isn't wasting cycles on every pixel from every camera. Real bandwidth and storage savings, not marketing spin.
- 256 presets and patrol tours: Automates coverage during unmanned shifts. Set up a 10-preset sequence to cycle through high-value areas (entrance, loading dock, till zone, storage aisles) every 30 seconds, then jump to a specific preset when an alarm triggers. Operator workload drops measurably in 24/7 facilities.
- IK10 impact rating: In public spaces or retail, IK10 means the dome resists baseball-bat-level abuse. A cheaper IK05 dome will crack under deliberate impact; IK10 is built to survive rough environments without frequent replacement.
Deployment Considerations:
- IP52 is indoor-only. Do not mount on exterior overhangs or outdoor walls—direct rain will find its way in. If you need weather resistance, step up to the IP66 variant in the Spectra family.
- PoE++ power is non-negotiable here. Standard PoE+ (802.3at, 30W) is insufficient. Confirm your switch supports 802.3bt Class 4 (up to 90W per port) before deploying multiple SPDE8-2X30-PD0 units on the same infrastructure. A single high-power PTZ can starve lower-power cameras on a budget switch.
- Tilt range (-90° to +1°) is deliberate. The +1° upper limit prevents the camera pointing straight up (which would confuse preset logic and operators). If you need upward-angle mounting, account for this in your bracket planning.
- The 0.018 lux low-light and integrated IR assume you're in a space with some ambient light or IR reflective surfaces. Pitch-black spaces (no windows, no ambient light) will still struggle even with IR—IR requires something to reflect back to the sensor. Unlit basements and interior vaults are the edge cases where IR fails.
Use the SPDE8-2X30-PD0 in retail environments with high-ceiling layouts (grocery stores, big-box warehouses, light manufacturing), transportation hubs (loading docks, receiving areas), and institutional facilities (educational campuses, corporate atriums) where a single pendant PTZ can eliminate 4–6 fixed cameras and improve coverage. Skip it if you need outdoor weather hardening, 4K resolution for ultra-distant forensics, or integration with legacy analog systems.
