Pelco SPDE8-4X30-PD0 4MP 30x Pendant PTZ Dome Camera

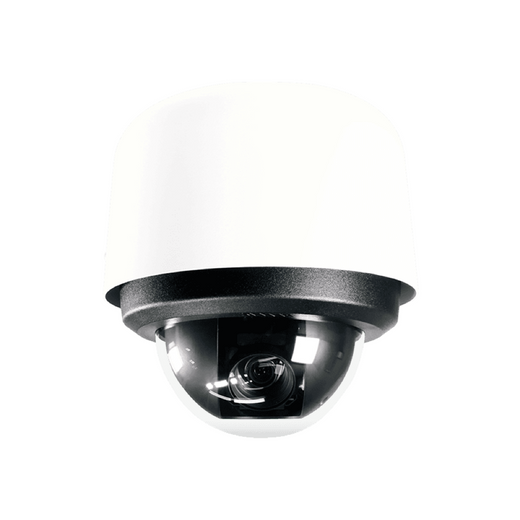

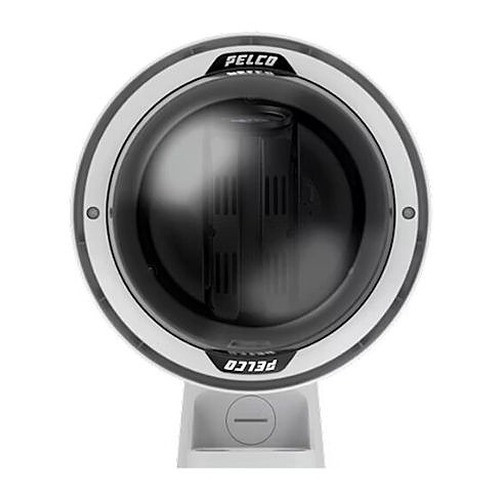

The Pelco Spectra Enhanced 8 SPDE8-4X30-PD0 is a professional-grade PTZ dome camera designed for pendant (surface-mount) installation in commercial and enterprise security environments. Delivering 4MP resolution at 60 fps with exceptional 30× optical zoom, this camera captures fine detail across expansive interior spaces without requiring ceiling cutouts. The pendant mounting configuration makes it ideal for exposed ceilings, drop-ceiling grids, and wall-bracket extensions where flush recessed installation is not feasible.
Key Features
- 4MP resolution at 2560 × 1440 maximum resolution; 60 fps frame rate
- 30× optical zoom with 4.7–141 mm focal length range (63° to 2.3° HFOV)
- 120 dB SureVision WDR for mixed-lighting and high-contrast environments
- Continuous 360° pan with full tilt range (-90° to +1°)
- 256 preset positions for automated patrol tours and multi-zone monitoring
- Smart Analytics, EIS, and motion detection onboard
- Pendant surface-mount form factor for exposed ceiling installation
- PoE++ powered for simplified cabling and integration
- IP52 ingress protection and IK10 impact rating for durability
- Operating range: -10°C to +60°C
Technical Highlights
Video Compression & Streaming: H.265, H.264, and Motion JPEG support optimizes bandwidth and storage efficiency across diverse network environments.
ONVIF Compliance: Full compliance with ONVIF Profile S, Profile T, Profile G, and Profile M ensures seamless integration with third-party VMS platforms and enterprise security ecosystems.
Day/Night Capability: Built-in IR and day/night switching enable 24/7 surveillance. Low-light performance down to 0.018 lux supports monitoring in near-darkness without supplemental lighting.
Network Security: HTTPS encryption protects video streams and configuration data. microSD card slot enables local recording for backup and compliance archiving.
Sensor & Optics: 1/2.8" CMOS sensor paired with precision glass optics delivers sharp, color-accurate imagery in day mode and reliable thermal performance during night operations.
Installation & Applications
Ideal for retail environments, office complexes, transportation hubs, and public facilities requiring expansive field coverage from a single camera position. The 30× zoom enables operators to identify subjects and read fine details without panning to new locations. Preset automation reduces staffing requirements for continuous multi-zone monitoring.
Note: For flush recessed ceiling installation, specify the SPDE8-4X30-ID0 variant. For 2MP resolution at lower cost, the SPDE8-2X30-PD0 pendant model offers the same mounting style with reduced pixel density.
Backed by a 5-year manufacturer warranty and NDAA Section 889 compliant.
