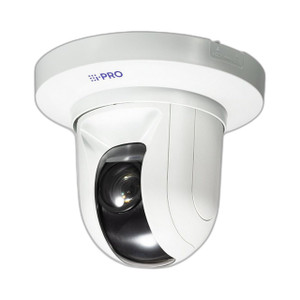

i-PRO WV-S61301-Z1 2MP Indoor AI PTZ IP Camera

i-PRO WV-S61301-Z1 2MP Indoor AI PTZ IP Camera

The i-PRO WV-S61301-Z1 is a compact, AI-enabled PTZ (pan-tilt-zoom) camera engineered for flexible surveillance in office, retail, hospitality, and educational environments. This 2MP indoor unit pairs motorized 10x optical zoom with intelligent video analytics and 256 preset positions, enabling rapid threat detection and seamless coverage of large indoor spaces from a single mounting point. Built on i-PRO's surveillance platform, the WV-S61301-Z1 integrates superior image processing, enterprise-grade AI capabilities, and FIPS 140-2 Level 3 security in a compact form factor.

Key Features

• 2MP 1/2.8-Type CMOS Sensor: Delivers 1920×1080 resolution at 30 fps with maximum 144 dB dynamic range (Super Dynamic mode, Level 31) — this level of dynamic range means you recover detail in harsh backlit scenes (think checkout lines with windows behind them) without blown highlights or crushed shadows.
• 10x Motorized Optical Zoom (4.7–47mm): Motorized focus from 1.5m to infinity ensures sharp imagery across all zoom levels. Field of view spans 62° (wide) to 6.7° (tele) in 16:9 mode, plus 15x digital zoom at 720p resolution — useful for identifying details on distant objects without sacrificing too much resolution.
• Full PTZ Control with 256 Presets: Pan range of 350° (0.065°/s to 150°/s manual; up to 500°/s preset speed) combined with 105° tilt (-30° to +90° operational) delivers flexible coverage. Auto-track, auto-pan, preset sequence, and patrol modes reduce manual intervention and enable hands-free monitoring of predictable activity patterns.
• Advanced Image Processing: Dual auto white balance modes (ATW1, ATW2), manual color temperature, adaptive shutter control (1/30 to 1/10000 second), fog compensation, and backlight/highlight compensation adapt to variable lighting without requiring manual adjustment — saves configuration time on initial deployment.
• Comprehensive AI Analytics: Includes AI Video Motion Detection, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non-Mask Detection, AI Occupancy Detection, AI Privacy Guard, AI Scene Change Detection, and AI Sound Classification (gunshot, yell, vehicle horn, glass break). These reduce false alarms by running analytics on-camera rather than flooding your NVR with raw video, and accelerate incident response by flagging relevant events automatically.
• Extreme Low-Light Sensitivity: Reaches 0.0004 lx in black-and-white mode (F1.6, 16/30s exposure) with built-in IR illumination and gyro-based image stabilization — critical for 24/7 monitoring in dimly lit storage areas, stairwells, or after-hours facilities where traditional cameras struggle.
• Enterprise-Grade Security: FIPS 140-2 Level 3 Secure Element, GlobalSign pre-installed certificate, 802.1X authentication, HTTPS/TLS encryption, and signed firmware prevent unauthorized access and ensure firmware integrity — essential for compliance-sensitive deployments (healthcare, finance, education).
• H.265 Compression with Flexible Codec Support: H.265 cuts storage requirements roughly in half compared to H.264 at equivalent quality — a real factor when recording 24/7 across dozens of cameras. Falls back to H.264 or MJPEG for legacy VMS integration, with intelligent GOP control (variable 1s–16s or fixed 60s keyframe) balancing bitrate and responsiveness.
• PoE Connectivity (IEEE 802.3af): Draws minimal power, keeping your switch's power budget intact. Supports up to 14 simultaneous users over IPv4/IPv6 networks with TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, SMTP, DNS, NTP, SNMPv1/v2/v3, MQTT, and SFTP — standard integration points for most VMS platforms and edge analytics systems.
• Audio & Alarm I/O: 3.5mm stereo audio input/output plus 3 external alarm terminals with configurable AUX output enable two-way audio announcements and integration with door release, strobe lights, or other alarm devices without additional control modules.
• microSD Card Recording: Onboard microSD slot supports manual, alarm, or schedule-based recording as a local backup — useful during network outages or as a tamper-proof secondary recording chain for compliance audits.

Performance & Detection Ranges

Detection capabilities follow ISO 19762 standards: Tele mode achieves 656m detection range, 262.4m observation range, 131.2m recognition range, and 65.6m identification range. Wide mode operates at 64.2m detection and 6.4m identification. These numbers matter when deciding whether this camera can reliably identify an individual in a parking structure or merely detect motion — test against your actual mounting height and target distance before final purchase.

Environmental & Integration

Operating temperature range of -10°C to +50°C (power-on 0°C to +50°C) supports most indoor climates; humidity tolerance of 10–90% non-condensing handles typical office and retail environments but not steam rooms or unheated damp cellars. Compact dimensions (ø117mm × 155mm height) and 1.2 kg weight permit ceiling or wall mounting in spaces where larger PTZ housings won't fit. Supports nine GUI languages (English, Chinese, Japanese, and major European variants) reducing localization overhead on multinational deployments. ONVIF Profile G, M, S, and T compliance ensures compatibility with most IP camera management platforms, though vendor-specific features (Panasonic's proprietary analytics extensions) require native integration with NVR systems that explicitly support i-PRO cameras.

When to Choose a Different Model

The WV-S61301-Z1 is optimized for indoor, non-hazardous environments. If your deployment requires outdoor mounting, weather sealing (IP66 or higher), or operation in explosion-hazard zones (ATEX/IECEx certification), explore i-PRO's outdoor PTZ lineup or fixed-dome camera alternatives. For applications needing higher than 2MP resolution or faster preset speeds, consider a higher-megapixel variant in the i-PRO PTZ family. If you need thermal imaging, analog backup outputs, or higher frame rates (60 fps), those capabilities fall outside this model's scope and warrant evaluation of purpose-built alternatives.

Deployment Considerations

Verify PoE switch capacity before installation — while the WV-S61301-Z1 is power-efficient, deploying multiple PTZ units on a single non-PoE-capable network interface can exceed port budgets. Plan for network bandwidth: H.265 streams at 4–8 Mbps are typical, but multiple simultaneous users (14 concurrent sessions max) can consume significant LAN capacity if configured for wide distribution. Test storage retention with your chosen codec and resolution before committing to hardware; 24/7 recording across multiple cameras demands adequate NVR capacity or cloud integration to avoid overwriting important footage.

Frequently Asked Questions

Q: Does the WV-S61301-Z1 support ONVIF?

A: Yes. The camera supports ONVIF Profile G, M, S, and T, enabling integration with any ONVIF-compliant VMS. Vendor-specific i-PRO features (proprietary AI tuning, advanced privacy masking) may require i-PRO's native management software for full access.

Q: What is the IR range and night vision capability?

A: The WV-S61301-Z1 includes built-in IR illumination and achieves 0.0004 lx sensitivity in black-and-white mode (F1.6, 16/30s). Exact IR range depends on mounting height and ambient light; no hard maximum distance is specified in the datasheet. Test in your actual environment before deployment.

Q: Can I record locally on the camera?

A: Yes. The camera supports microSD card recording (manual, alarm, or schedule-based). microSD capacity limits maximum local storage; verify card compatibility with your organization's retention policy before purchase.

Q: Is the WV-S61301-Z1 suitable for outdoor use?

A: No. This is an indoor-only camera (no IP rating for weather sealing). For outdoor deployments, choose an outdoor-rated PTZ or dome camera with IP66/IP67 rating.

Q: What is the power consumption?

A: The camera operates on PoE (IEEE 802.3af Class 0) with minimal power draw, suitable for standard PoE switch infrastructure. Exact wattage varies with zoom position and IR activation; verify your switch's remaining power budget before connecting multiple units.

Q: Does the camera support two-way audio?

A: Yes. The WV-S61301-Z1 includes 3.5mm stereo audio input and output, enabling announcement or interrogation workflows. Audio quality and latency depend on network bandwidth and VMS configuration.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S61301-Z1 represents a mature, AI-forward solution for organizations requiring flexible, single-point coverage of large interior spaces without the footprint or cost of fixed multi-camera deployments. The combination of 10x motorized zoom, 256 presets, and comprehensive on-camera AI analytics means you can detect, track, and classify people and vehicles at useful distances without overloading your network or NVR storage.

Technical Highlights:

• 144 dB Dynamic Range (Super Dynamic Level 31): Recovers shadow detail and bright highlights simultaneously — critical in retail or educational settings where windows, skylights, and fluorescent fixtures create extreme contrast. You won't need heavy post-processing or manual exposure compensation.
• 0.0004 lx Sensitivity with IR + Gyro Stabilization: The combination of extreme low-light performance and image stabilization means 24/7 operation in near-total darkness (stairwells, overnight storage) without vibration artifacts. This removes the need for supplemental lighting in many indoor-only deployments.
• H.265 Compression with 14 Concurrent Streams: H.265 halves storage consumption compared to H.264. At 24/7 recording across 4–6 cameras, that difference translates to measurable savings in NVR capacity and retention runway — particularly important on smaller deployments where adding extra storage is expensive.
• 256 Presets + Auto-Track: Reduces operational burden. Instead of live pan-tilt-zoom control, configure presets for known risk zones (entry points, cash handling areas, server room doors) and let auto-track follow detected persons between presets — intelligent coverage without full-time operator attention.

Deployment Considerations:

• Network Bandwidth Planning: Multiple simultaneous PTZ users consuming H.265 streams at 4–8 Mbps can saturate older gigabit networks if VMS, mobile viewing, and archival systems are all pulling concurrently. Size your switch and uplinks accordingly.
• PoE Budget Constraint: While the WV-S61301-Z1 is power-efficient under IEEE 802.3af, deploying 6+ units on a single non-PoE+ switch can exceed available power. Check your switch's per-port and total power budget before installation.
• Indoor-Only Limitation: No weather sealing (IP rating). Covered loading docks, unheated warehouses, or outdoor-exposed mounting will require a different camera family.

The WV-S61301-Z1 is a strong fit for retail chains, office campuses, hospitality properties, and educational institutions where a small number of high-capability PTZ cameras can replace larger fixed-camera deployments. The AI suite is sufficiently mature to reduce false alarms and speed incident response, making it a practical choice for security operations with limited staff.
