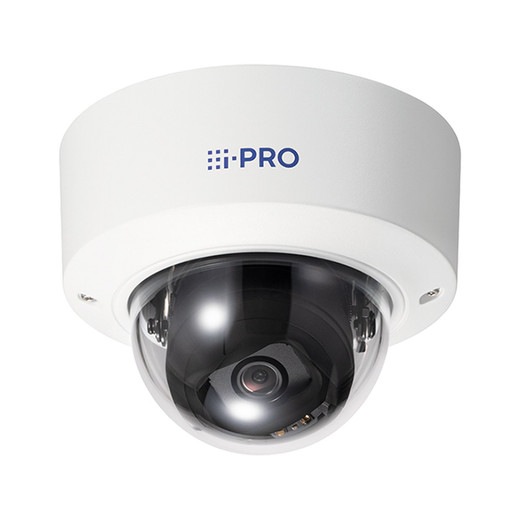

i-PRO WV-S22500-F6L 5MP Vandal-Resistant Indoor Dome IP Camera

i-PRO WV-S22500-F6L 5MP Vandal-Resistant Indoor Dome IP Camera

The i-PRO WV-S22500-F6L is a compact dome camera built for environments where impact resistance and forensic image quality matter: retail floors, school hallways, transit stations, and public facilities. Its IK10 vandal rating means it will survive a direct 20-joule impact without optical or structural failure—the polycarbonate dome and aluminum die-cast housing are engineered to absorb punishment that would disable a standard camera. If your deployment includes unsupervised areas or high-risk public access, this durability rating eliminates a common failure mode.

Key Features

• 5MP Resolution, 30fps — Captures 3072×1728 (16:9) or 3072×2304 (4:3) at 30 frames per second. At 25 pixels-per-meter (DORI standard), you get 138m detection range; at 62.5ppm you maintain 55m observation distance. Translates to readable facial detail at roughly 50 feet in good light—forensic-quality for retail or transit investigations.
• IK10 Impact Certification — Rated for 20-joule direct strikes (IEC 62262 standard). Stainless steel fasteners resist corrosion, and the impact-rated polycarbonate dome survives ball-bearing and pipe-strike tests. Eliminates cost of repeated camera replacement in high-touch areas.
• 132 dB Super Dynamic Range — Adaptive Black Stretch, Back Light Compensation, and High Light Compensation allow the camera to extract detail in mixed sunlight and shadow simultaneously. Configurable Super Dynamic levels (0–31) let you tune the tradeoff between contrast and noise. Real benefit: usable footage in retail aisles with skylights, or hallways with windows, without repeated re-adjustment.
• 25m IR with Switchable Output — Integrated 850nm IR LEDs with High/Middle/Low settings. At 0.07 lx minimum illumination in B&W mode (F1.6, 1/30s, 50IRE), the camera delivers color or monochrome night vision with no additional external lighting. ICR (Intelligent Color Recognition) switches automatically or on demand. Useful for 24/7 surveillance without the heat and power draw of external floods.
• AI-Powered Analytics On-Camera — Video Motion Detection, Face Detection, People Detection, Vehicle Detection, Non-Mask Detection, Occupancy Detection, and Sound Classification (gunshot, yell, horn, glass break). These run locally on the camera—no server needed for initial triage. Reduces false alarms and accelerates manual review of high-value events.
• H.265, H.264, and MJPEG Codecs — H.265 cuts storage bandwidth roughly 40–50% versus H.264 for the same visual quality. Smart Coding adjusts GOP and frame rate dynamically, so high-motion scenes don't bloat your NVR storage. 14 simultaneous client connections allow multi-user review without performance lag.
• PoE Powered, Gigabit Network — Draws 10.6W via standard 802.3af PoE (Class 0). No separate 12VDC power supply required, no cable clutter. Gigabit Ethernet (10/100Base-T compatible) future-proofs for bandwidth-heavy analytics and 4K-capable infrastructure.
• MicroSD Storage and Cloud Connectivity — Supports microSD/SDHC/SDXC up to 512GB for local backup or edge recording. SMTP, FTP, SFTP, and MQTT enable cloud upload of motion-triggered clips or snapshots. Useful hedge if your NVR fails or network drops.
• FIPS 140-2 Level 3 Secure Element — Pre-installed GlobalSign® certificate, HTTPS/SSL/TLS, IEEE 802.1X authentication, and user/host validation. Meets federal cybersecurity baselines for government and higher-ed deployments. Reduces risk of unauthorized access or firmware tampering.
• Compact Form Factor — ø129.5mm × 102.5mm height, 800g weight. Fits standard ceiling cutouts and low-profile mounting scenarios where bulkier domes create sightlines issues.

Integration & Compatibility

The WV-S22500-F6L supports ONVIF Profile G, M, S, and T, so it integrates with most mainstream IP camera management platforms. IPv4 and IPv6 dual-stack networking ensures compatibility with modern enterprise infrastructure. For network video recorder deployments, the low PoE draw and H.265 codec support reduce switching and storage costs across multi-camera systems.

Environmental Operating Range

Operates –10°C to +50°C (14°F to 122°F) with 10–90% humidity (non-condensing). UL62368-1, CE, and FCC Part 15 Class A certified. Suitable for indoor retail, educational, transit, and municipal spaces; not rated for outdoor exposure or full submersion.

When to Choose a Different Model

If you require outdoor durability (rain, direct sun), look to a higher-grade weatherproof variant in the i-PRO line. If your deployment needs pan-tilt-zoom capability, consider a PTZ model instead. For applications requiring sub-lux performance in complete darkness without IR, evaluate low-light optimized alternatives, though none in this family combine IK10 vandal protection with ultra-high sensitivity.

Frequently Asked Questions

Q: Does the WV-S22500-F6L support two-way audio?

A: Yes. The camera includes microphone and audio output support, enabling live listen-in or speaker playback via compatible NVR or management platform. Audio can also be configured for AI sound classification (gunshot, yell detection).

Q: What is the maximum storage capacity via microSD?

A: Up to 512GB microSD/SDHC/SDXC cards are supported. At 5MP 30fps H.265, that typically provides 4–7 days of continuous local backup, depending on scene complexity and codec settings.

Q: Is the WV-S22500-F6L NDAA Section 889 compliant?

A: Evidence does not confirm NDAA compliance. Consult the manufacturer or your distributor for Section 889 eligibility if federal procurement is required.

Q: Can I wall-mount the dome, or only ceiling?

A: The standard mount is recessed ceiling. Wall mounting is possible with appropriate bracket adapters, though the compact dome form factor is optimized for ceiling installation.

Q: What is the warranty on the WV-S22500-F6L?

A: Warranty terms are not specified in the available technical documentation. Contact the manufacturer or your specialty distributor for details.

Q: Does the camera handle fog or condensation?

A: The camera includes Fog Compensation and operates in 10–90% humidity (non-condensing). Heavy condensation or submersion is not supported; ensure mounting location provides adequate ventilation and drainage.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S22500-F6L balances durability and optical performance in a way most dome cameras don't. IK10 impact certification is the standout—20-joule strikes (roughly a pipe strike or sledge-hammer blow from chest height) won't crack the lens or knock it offline. Pair that with 132 dB Super Dynamic Range and 0.07 lx night sensitivity, and you're not sacrificing image quality for toughness. The on-camera AI analytics (Face Detection, People Detection, Sound Classification) run locally, so you don't need a separate GPU appliance for first-pass triage.

Technical Highlights:

• IK10 + Polycarbonate Dome: Survives ball-bearing and pipe-strike test standards; aluminum die-cast body with stainless fasteners resists corrosion and repeated impact. Real deployment win: low TCO from avoided replacement cycles in high-traffic retail or transit hubs.
• H.265 Codec: Cuts storage bandwidth 40–50% versus H.264. On a 16-camera retail system recording 24/7 at 5MP, that's the difference between filling one 8TB NVR drive in 45 days versus 20 days. Meaningful when budgeting for backup or cloud offload.
• 132 dB Super Dynamic Range + Adaptive Compensation: Handles sunlit retail floors with shadowed stockrooms in a single frame. No post-processing needed; works out of the box in mixed-lighting retail or school hallways with skylight wash.
• 25m IR + ICR Color/Mono Switching: Integrated 850nm LEDs eliminate external IR emitter procurement and power strain. Auto or manual switchover keeps color until ambient drops below ~5 lux, then goes B&W to preserve range. Useful for 24/7 retail without external floods.
• PoE (802.3af, 10.6W): Fits comfortably on standard PoE switches. No 12VDC injector supply needed, no separate circuit; simplifies ceiling wire-runs and reduces UPS load.

Deployment Considerations:

• IK10 durability doesn't extend to the mounting bracket or back-box—use impact-rated hardware if you expect strikes to hit the junction. Standard ceiling mounts may flex under direct impact.
• 132 dB WDR is aggressive; in high-contrast scenes (e.g., storefront glass reflection), shadow detail can appear grainy. Configurable Super Dynamic levels (0–31) let you tune, but there's no free lunch with sensor size and light.
• PoE 802.3af (10.6W) leaves little headroom on legacy switches with marginal budgets. Verify your switch can deliver at least 15W per port if you're daisy-chaining other PoE devices.
• Recessed ceiling mount is standard; if you need surface-mounted or wall-mounted options, source bracket adapters and test fit first—not all third-party mounts are rated for IK10 impact.

Deploy the WV-S22500-F6L in retail loss-prevention, school security, and transit authority environments where camera tampering is a real risk and you can't tolerate frequent replacement cycles. The combination of IK10 rating, 25m IR, on-camera AI, and H.265 efficiency makes it a solid middle ground between durable entry-level domes and high-end PTZ systems. Not designed for outdoor use—if rain or direct UV exposure is in scope, choose a weatherproof variant instead.
