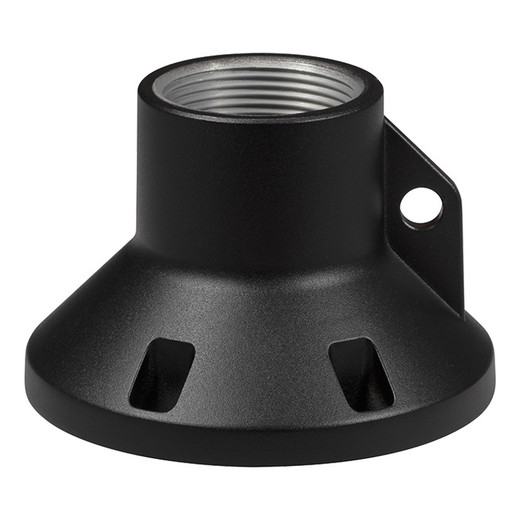

i-PRO WV-QCL101-B Pendant Mount Bracket for PTZ Cameras

i-PRO WV-QCL101-B Pendant Mount Bracket for PTZ Cameras

The WV-QCL101-B is a ceiling-suspended pendant mount bracket engineered for PTZ cameras in environments where traditional wall or pole mounting creates blind spots or obstructs critical sightlines. This bracket solves a concrete installation problem: when HVAC ducts, structural beams, or architectural elements block optimal camera placement at or above ceiling level, the pendant rod drops the camera below those obstructions to deliver uninterrupted pan-tilt-zoom coverage without relocating your mounting infrastructure.

Key Features

• Ceiling and pendant suspension configuration: Mount directly to ceiling structure, then suspend the PTZ camera below via the pendant rod. This eliminates the need to relocate the mounting point when obstruction avoidance is required — a meaningful labor saver on retrofit jobs where ceiling-mounted infrastructure is already in place but needs repositioning.
• Aluminum alloy construction with corrosion-resistant finish: Lightweight material reduces structural load on ceiling anchors while the protective finish prevents rust and oxidation. In humid warehouse environments, coastal installations, and outdoor perimeter deployments, steel brackets degrade within months; aluminum maintains integrity across temperature and moisture cycles without maintenance.
• Structurally rigid design: Aluminum's stiffness minimizes vibration and sway, ensuring PTZ pan-tilt movements remain smooth and video stays stable even when the camera reposition during active tracking. Vibration directly translates to soft video during zoom or panning — not acceptable for forensics or real-time threat response.
• Internal cable routing for power and network: Runs power and network cabling through the mounting structure itself, protecting RJ-45 and power connectors from UV, rain, and accidental damage. External cable runs attract dust, invite tampering, and create trip hazards on open warehouse floors and loading docks.
• Compatible with i-PRO PTZ mounting ecosystem: Works across i-PRO IP cameras in the PTZ dome range, streamlining inventory and ensuring standardized installation practices across multi-site deployments. Confirms mounting compatibility before ordering — not all PTZ brackets accommodate all dome weights and pan-tilt mechanisms.
• Suitable for both indoor and outdoor environments: The corrosion-resistant finish handles temperature swings and moisture exposure, whether installed inside a climate-controlled warehouse or exposed on an uncovered loading dock or perimeter canopy.

When Pendant Mounting Makes Sense

Pendant brackets are the right choice for warehouse aisles, manufacturing floors, and open-architecture spaces where you need PTZ coverage but ceiling-height obstacles or structural constraints prevent direct overhead mounting. Common deployment scenarios include:

• Warehouse monitoring: Suspend cameras below HVAC ductwork to monitor rack heights and aisle traffic without relocating infrastructure or accepting blind spots.
• Manufacturing and assembly lines: Drop cameras into the production space for quality inspection and safety monitoring without mounting on fragile equipment housings or production machinery.
• Transportation hubs and loading docks: Mount cameras below structural trusses or canopy frameworks to track vehicle and personnel movement in high-ceiling bays with unobstructed sightlines.
• Outdoor perimeter security: Pendant suspension from overhang or canopy structures provides elevated vantage points for pan-tilt-zoom coverage without separate pole installations or ground-level conduit runs.

Integration and Compatibility

The WV-QCL101-B is designed specifically for i-PRO PTZ camera models. Confirm your camera model is listed in the official compatibility matrix before ordering — incompatible mounting can result in load failure or unstable pan-tilt behavior. If you are building out a multi-camera PTZ ecosystem, verify your chosen models support the same recording codecs and network protocol as your archival strategy to avoid stream-conversion bottlenecks during live playback or forensic review. Internal cable routing means you'll need to pre-plan power and network runs through the pendant rod during installation — retrofitting cabling after mounting is not practical.

Frequently Asked Questions

Q: Is the WV-QCL101-B compatible with all i-PRO PTZ cameras?

A: No. The WV-QCL101-B is designed for i-PRO PTZ dome models within a specific weight and pan-tilt mechanism range. Always confirm your camera model against the official compatibility matrix before ordering — mounting an out-of-spec camera risks structural failure or degraded pan-tilt performance.

Q: Can I use the WV-QCL101-B indoors and outdoors?

A: Yes. The aluminum alloy construction with corrosion-resistant finish is rated for both indoor and outdoor environments, handling temperature swings and moisture exposure in warehouses, loading docks, and uncovered perimeter deployments.

Q: Does the pendant bracket protect power and network cables?

A: Yes. Internal cable routing runs power and network cabling through the mounting structure, protecting connectors from UV, rain, dust, and tampering. This is a significant advantage over external cable runs on open warehouse floors.

Q: What is the maximum load the WV-QCL101-B can support?

A: Load capacity depends on the dome weight and ceiling anchor type used. Consult the official datasheet for your specific PTZ camera model and confirm with a structural engineer if mounting on non-standard ceiling materials (e.g., existing ductwork or lightweight materials).

Q: Can I wall-mount the WV-QCL101-B instead of ceiling-mounting?

A: No. The WV-QCL101-B is engineered exclusively for ceiling suspension. For wall-mounted PTZ installations, consult i-PRO's wall bracket lineup.

Q: Is installation difficult?

A: Installation complexity depends on your ceiling type and pre-existing anchor points. Pendant mounting simplifies retrofits by dropping the camera below obstructions without relocating infrastructure, but you will need to pre-plan power and network runs through the pendant rod before final mounting.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-QCL101-B (often searched as WV QCL101 B) is a straightforward solution for a real warehouse and manufacturing problem: obstructions above the ideal camera height. I've seen too many PTZ installations compromised by HVAC ducts or structural beams that force the camera into a suboptimal sightline. A pendant mount solves that without ripping out ceiling infrastructure or accepting blind spots. The aluminum construction is the right choice here — it's light enough not to overload your anchors, rigid enough to keep pan-tilt video stable, and corrosion-resistant enough to survive humidity and temperature swings that would rust a steel bracket in months.

Technical Highlights:

• Aluminum alloy with corrosion-resistant finish: Eliminates rust and oxidation in humid warehouse, coastal, and outdoor perimeter environments. Steel brackets in similar conditions require replacement within one year; this design outlasts five or more with zero maintenance.
• Internal cable routing: Protects power and network connectors from UV, rain, dust, and physical tampering. External cable runs on warehouse floors attract debris, invite damage, and create compliance liability in safety audits.
• Pendant suspension configuration: Drops the camera below ceiling obstructions without relocating mounting infrastructure. On retrofit jobs, this cuts labor costs dramatically — you anchor once, then adjust camera depth as needed without moving the bracket.
• Rigid aluminum structure minimizes vibration: Smooth pan-tilt movements translate to stable video during active tracking, critical for real-time threat detection and forensic playback quality.

Deployment Considerations:

• Compatibility is non-negotiable. The WV-QCL101-B is designed for specific i-PRO PTZ dome weights and mechanisms. An oversized or undersized camera will either strain the bracket or experience sloppy pan-tilt behavior. Check the compatibility matrix before ordering — there's no workaround if you get this wrong.
• Internal cable routing means you must pre-plan power and network runs through the pendant rod before final mounting. You cannot retrofit cabling after the bracket is ceiling-mounted. Budget extra time in your design phase to verify ceiling penetration points and wire management.
• Load capacity depends on your ceiling anchor type and installation surface. Confirm with a structural engineer if you're mounting on non-standard materials (e.g., lightweight suspended ceiling grids or existing HVAC penetrations). Failure is not an option in a high-traffic warehouse.

The WV-QCL101-B is a match for warehouse aisles, manufacturing floors, and outdoor loading docks where ceiling obstructions block direct PTZ mounting and you need stable, unobstructed pan-tilt-zoom coverage. It's not a universal bracket — it's a targeted solution for a specific problem. If your ceiling is clear and your mounting point is ideal, a wall or standard ceiling bracket is simpler and cheaper. But if obstructions force you to choose between suboptimal sightlines and relocated infrastructure, pendant suspension delivers the right answer without compromise.
