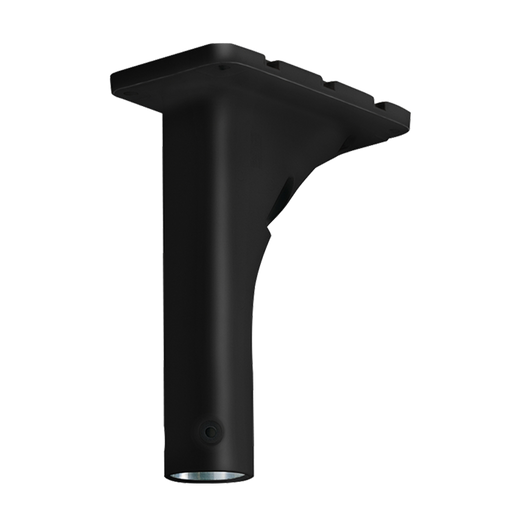

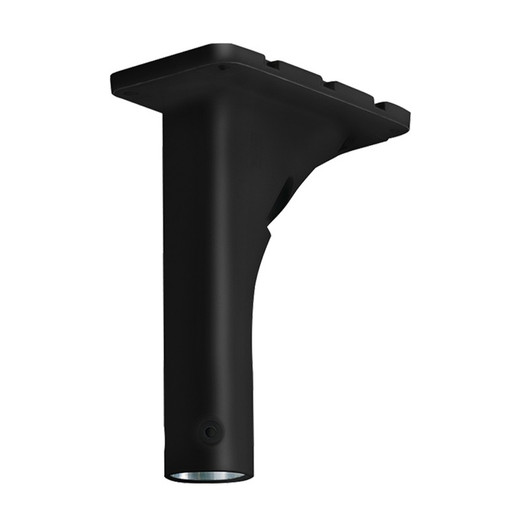

i-PRO WV-QCL501-B Flush Ceiling Mount Bracket for PTZ Domes
The WV-QCL501-B is a ceiling-mounted pendant bracket engineered for i-PRO PTZ dome cameras. It delivers a clean architectural footprint — mounting hardware and cable entry points stay above or within the ceiling plane, eliminating visible bracket arms, conduit, and cable clutter. That matters in customer-facing environments: retail, hospitality, corporate lobbies, and institutional facilities where both security function and finished appearance drive buyer confidence. This is not a generic universal bracket; it's built specifically to match i-PRO PTZ dome geometry and pendant mounting requirements.
Key Features
- Flush-mount design: Brackets and fasteners remain concealed above the ceiling line, maintaining a clean sight line in high-visibility areas. The pendant configuration allows the camera body to hang smoothly from the junction point without protruding hardware or visible fasteners.
- Concealed cable management: Cable entry is sealed and routed through the mounting assembly itself, protecting RJ-45 connectors and power feeds from dust and airborne particulate. This sealed routing also preserves plenum barrier integrity — a critical detail in commercial buildings where the ceiling cavity serves as a return-air plenum and must comply with fire codes (typically requiring plenum-rated materials).
- Supports suspended grid and structural ceilings: The WV-QCL501-B mounts to both drop-ceiling grids (T-bar systems common in office and institutional buildings) and direct structural attachment to concrete deck or steel. This flexibility eliminates the need for separate brackets across different building types within a single deployment.
- Integrated junction box accommodation: The bracket is designed to work with standard electrical junction boxes, simplifying rough-in and final trim-out. You tie the mechanical support and electrical feeds into a single control point — one inspection, one location to verify load rating and wiring compliance.
- Temperature rated -50°C to +60°C (-58°F to 140°F): While most office deployments sit at 20–25°C, this range covers unconditioned spaces: warehouses, loading docks, atriums with skylights, or building perimeters exposed to external temperature swings. The bracket won't embrittle or degrade in these conditions. If you're deploying purely indoors in climate-controlled environments, this spec confirms you have margin for thermal cycling without material failure.
- Hardware kit included: Mounting fasteners, anchors, and installation guides are bundled in the box. You won't be hunting for the correct bolt size or anchor type mid-installation.
Integration & Compatibility
The WV-QCL501-B is purpose-built for i-PRO PTZ dome cameras configured in pendant mounting. Before ordering, verify your specific camera model against i-PRO's compatibility matrix — pendant mounting depends on the camera's weight, mounting thread pitch, and cable entry location aligning with the bracket's suspension points. If you're migrating from another PTZ manufacturer, cross-check dimensional drawings from your camera's datasheet against the WV-QCL501-B mechanical interface.
For integrators managing mixed camera types across a site, confirm pendant compatibility early in the design phase. Some PTZ domes support only wall or corner mounting and cannot be repurposed as ceiling pendants without additional adapters or alternative bracket models.
Installation & Code Compliance
The sealed cable entry and plenum-rated design support fire code requirements in commercial construction. Mount the bracket per local building codes for load ratings and fastener spacing, especially in seismic zones or high-wind areas where ceiling-mounted equipment may require additional bracing or restraint systems. The integrated junction box approach simplifies structural inspection and electrical verification — both mechanical support and power feeds are tied to one control point.
When to Choose a Different Approach
If your PTZ camera requires wall mounting, corner installation, or a different pendant geometry, look for alternative i-PRO bracket variants in the same family. If aesthetic requirements are secondary and budget is the primary driver, a basic universal ceiling bracket may offer cost savings, but verify compatibility with your specific camera's mounting thread and weight distribution before ordering.
Frequently Asked Questions
Q: Is the WV-QCL501-B compatible with all i-PRO PTZ domes?
A: No. The WV-QCL501-B is designed for i-PRO PTZ cameras in pendant configuration. Verify your specific model against i-PRO's compatibility matrix before purchase. Camera weight, mounting thread pitch, and cable entry location must align with the bracket's design.
Q: Can I mount the WV-QCL501-B on a drop-ceiling grid?
A: Yes. The bracket supports both suspended grid (T-bar) ceilings and direct structural attachment to concrete or steel deck. Confirm that your grid is rated for the combined camera and bracket weight per local building code.
Q: Does the bracket maintain plenum code compliance?
A: Yes. The sealed cable routing and plenum-rated design preserve fire code barriers in commercial buildings where the ceiling cavity serves as a return-air plenum. Follow local fire codes and building inspector requirements for material certification.
Q: What is the temperature operating range for the WV-QCL501-B?
A: The bracket is rated -50°C to +60°C (-58°F to 140°F). This covers unconditioned spaces like warehouses and loading docks, but typical office deployments at 20–25°C are well within the safe range.
Q: Is mounting hardware included?
A: Yes. The WV-QCL501-B includes a hardware kit with fasteners, anchors, and installation aids. You will not need to source additional brackets or fasteners for a standard ceiling installation.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WV-QCL501-B (often searched as WV QCL501 B) solves a real problem: PTZ domes in customer-facing spaces. You need clean sightlines without compromise on mechanical security. The -50°C to +60°C operating range means this bracket won't fail in unconditioned warehouses or loading dock areas where thermal swings are common — that's a detail many generic brackets skip.
Technical Highlights:
- Sealed concealed cable routing: Protects RJ-45 and power connections from dust and particulate, and maintains plenum barrier integrity. Fire code compliance is not negotiable in commercial builds — this bracket handles it without retrofit work.
- Pendant geometry for i-PRO PTZ domes: Camera weight and mounting thread pitch must match the bracket design. Verify compatibility in i-PRO's matrix before ordering — there is no universal pendant mount for all PTZ cameras.
- Dual ceiling support (suspended grid and structural): Eliminates the need for separate brackets across office drop-ceilings versus concrete deck. Load rating is still your responsibility — confirm with local building code and the grid or structural engineer.
Deployment Considerations:
- Pendant mounting requires precise alignment of camera weight, mounting thread, and cable entry. Misalignment creates uneven load distribution and potential sag or rotational drift over time.
- Plenum compliance is mandatory in commercial buildings, but local fire marshals may require material certification documents. Have i-PRO's plenum rating statement ready for inspection.
This bracket is purpose-built for retail and hospitality deployments where aesthetics and code compliance matter equally. If you're retrofitting a non-pendant PTZ or deploying in a space where visible hardware is acceptable, explore lower-cost universal alternatives — but verify mechanical compatibility first.
