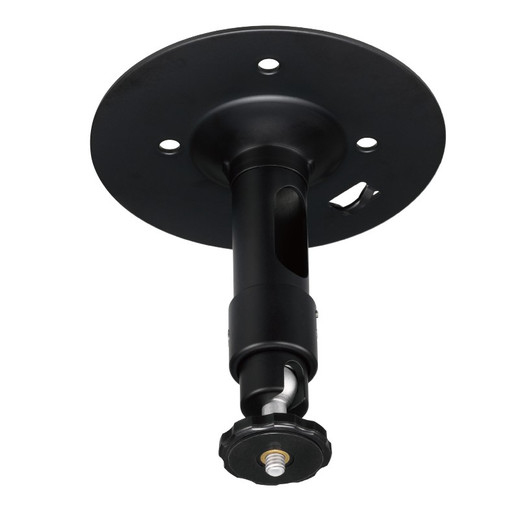

i-PRO WV-QCL102-B Universal Camera Mounting Bracket
Overview
The WV-QCL102-B is a universal mounting bracket for i-PRO network cameras on walls, ceilings, or rack surfaces. It solves the core installation problem: positioning compact and mid-size dome, bullet, or turret cameras without factory-integrated mount points. The bracket carries up to 2 kg (4.4 lbs), covering most i-PRO compact and small form-factor models. Aluminum and steel construction with ABS components resist surface corrosion in climate-controlled indoor environments. Available in white or black finish to blend with institutional ceilings and walls. The WV-QCL102-B includes 360° pan rotation and 90° tilt adjustment — useful for orienting a camera after mounting without repositioning the entire fixture.
Compatibility
The WV-QCL102-B works across the i-PRO camera line. Verify your specific model against the manufacturer's compatibility list (supplied in the installation guide) to confirm load rating and mounting thread compatibility. The bracket accepts M4 and M6 anchor bolts or machine screws, accommodating standard wall anchors and fastening systems found in most commercial installations. If your camera requires a threaded stud interface (not a flat pad), confirm thread type before installation.
Installation Notes
Mount using four M6 anchor bolts or screws for primary fixture attachment and one M4 bolt or screw for the camera mounting interface. Maximum envelope is 120 mm diameter × 130 mm height (not including camera). Operating temperature range is –50°C to +60°C (–58°F to +140°F), suitable only for climate-controlled indoor spaces — the bracket is not rated for outdoor exposure or prolonged direct sunlight. Do not install near heaters or air-conditioning vents; thermal cycling can degrade the ABS components and aluminum finish. Always secure to solid substrate (wall studs, solid backing board, or properly rated anchors) to prevent sag or fall risk.
What's in the Box
- 1x WV-QCL102-B universal mounting bracket
- 4x M6 anchor bolts or mounting screws
- 1x M4 anchor bolt or mounting screw
- Installation guide
