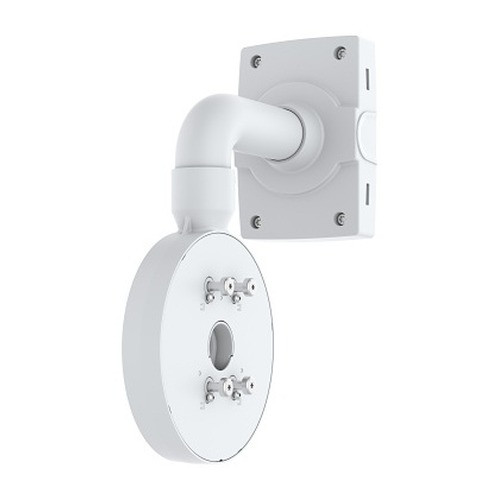

Axis 01457-001 Dual Camera Mount

The Axis T94V01C (01457-001) is a dual camera mount that puts two Axis cameras on a single mounting point instead of two separate brackets — useful where you need overlapping fields of view (e.g., a wide scene shot plus a close-in identification shot) at an entryway, dock door, or corridor junction but only have one clean mounting location or conduit run. Consolidating two cameras onto one T94V01C cuts the number of wall or ceiling penetrations in half versus mounting each camera independently, which matters on finished facades or when conduit runs are already tight.

Compatibility

The mount accepts Axis dome cameras, box cameras, and bullet cameras through a 1.5" NPS threaded interface, which is the standard mounting thread used across most Axis IP cameras pendant and wall accessories. Confirm your specific camera model uses the 1.5" NPS thread before ordering — some compact Axis domes use a different base pattern. Because the interface is a generic thread rather than a model-specific bracket, the 01457-001 works across mixed camera-type deployments, not just a single product line.

Installation Notes

The housing is IK10-rated, meaning it holds up against deliberate impact — relevant on the 01457-001 itself since it's an exposed mounting point in public-facing or high-traffic areas like transit stations, parking structures, or retail entrances where vandalism is a real risk, not just the cameras it carries. The white housing finish is a fixed spec, so check it against your building's fascia or ceiling color before install if aesthetics matter on the job. Pair this mount with the appropriate wall or pole adapter for your structure type, since the T94V01C's 1.5" NPS interface is a camera-side connection, not a structural fastening system on its own.

This dual mount fits naturally alongside a broader outdoor IP camera deployment where dual coverage angles are needed at single chokepoints. For guidance on where dual-camera setups make sense versus separate single mounts, see the camera selection guide. If you're running conduit to a mount like this, plan the drop alongside your PoE switch capacity for both camera ports. Model number 01457-001 (also searched as Axis 01457001) covers this specific dual-mount configuration only — verify against your exact camera SKUs before purchase.
