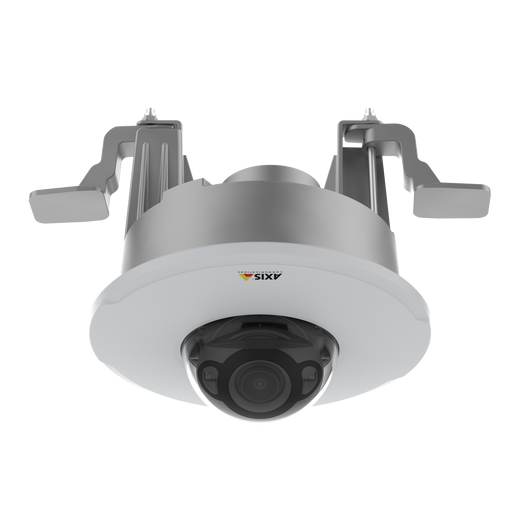

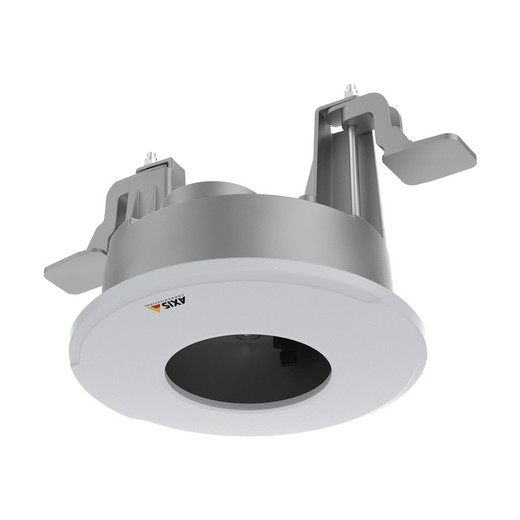

Axis 02383-001 Recessed Mount for Dome Cameras
The Axis 02383-001 is a recessed ceiling mount engineered for discrete installation of Axis dome and panoramic cameras. Its aluminum construction and concealed design deliver a clean aesthetic while providing robust mechanical support in demanding surveillance environments. This accessory is built to handle the weight and positioning demands of professional surveillance deployments without introducing visual clutter into monitored spaces.
Key Features
- Recessed mount design: Hides the camera body within the ceiling cavity, creating a minimal visual footprint — critical in retail, hospitality, and corporate settings where overt surveillance equipment can affect customer perception or interior design.
- Aluminum construction: Lightweight yet rigid material resists corrosion and thermal expansion, ensuring the camera position remains stable across seasonal temperature swings without drift or vibration.
- Adjustable tilt and rotation: Allows fine-tuning of camera angle after installation without removing the mount — saves commissioning time when field-of-view adjustments are discovered during handoff.
- Integrated cable management: Routes network and power cables through the mount structure, reducing visible wire runs and protecting cabling from accidental damage or tampering.
- Plenum-rated design: Complies with building codes requiring flame-rated materials in plenum spaces (the area between the ceiling and the floor above), essential for commercial installations where local fire codes mandate this certification.
- Indoor and outdoor deployment capability: Durable construction handles both climate-controlled interiors and exposed outdoor installations, though outdoor use typically requires weatherproof housing or camera dome protection.
Integration & Compatibility
The 02383-001 is engineered for Axis dome camera models and panoramic variants. Before ordering, confirm your specific camera model is listed in the compatibility documentation — dome cameras vary in weight and mounting footprint, and mismatches can result in improper support or cosmetic gaps. The recessed design assumes standard 2x4 or metal ceiling grid construction; pre-installation inspection of your ceiling structure is strongly recommended.
When planning deployment across multiple ceiling-mounted cameras, coordinate with your network video recorder sizing and cabling runs. Recessed mounts often require longer cable drops than surface-mounted alternatives, which can impact PoE voltage drop on long runs — factor this into your power budget planning.
Deployment Considerations
Recessed mounting works best in controlled interior spaces and covered outdoor areas. In full outdoor weathering scenarios (direct rain, salt spray), pair the mount with additional weatherproof camera housings. The adjustable positioning is a strength during commissioning, but once set, verify the tilt/rotation is locked — vibration from HVAC systems or building movement can occasionally loosen mounts if not properly secured.
Installation requires ceiling access and basic hand tools. Coordinate with building management or maintenance to schedule work that doesn't disrupt operations. The plenum rating is valuable documentation for compliance audits — keep the datasheet accessible for future facility inspections.
When to Choose a Different Approach
If your deployment requires a surface-mounted or wall-mounted camera, or if you need a pendant or corner-mount variant, explore the broader Axis mounting accessory family. For environments where extreme temperature swings, high moisture, or corrosive atmospheres are present, verify with the manufacturer whether additional protective coating or material upgrades are necessary beyond the standard aluminum construction.
Frequently Asked Questions
Q: Is the Axis 02383-001 compatible with all Axis dome cameras?
A: No. Compatibility depends on your specific camera model and weight. Always confirm against the manufacturer compatibility list before purchasing — dome camera weight ratings and mounting footprints vary within the Axis line.
Q: Can the 02383-001 be used in outdoor environments?
A: The aluminum construction and plenum-rated materials support outdoor deployment, but in high-moisture or corrosive environments (salt spray, coastal), additional weatherproof housings or protective coatings are recommended to extend mount life.
Q: What tools are required for installation?
A: Basic hand tools and ceiling access are required. The exact toolkit depends on your ceiling type (drywall, metal grid, or concrete). Consult the datasheet for detailed installation steps and hardware requirements.
Q: Does the 02383-001 support repositioning after installation?
A: Yes. The adjustable tilt and rotation design allows fine-tuning of camera angle without removing the mount — useful for field-of-view refinements during commissioning. Ensure tilt and rotation locks are fully tightened to prevent drift.
Q: What is the weight rating of the mount?
A: Weight capacity depends on your ceiling structure and the specific camera model. Verify the load rating in the datasheet and ensure your ceiling framing can support both the mount and camera assembly.
Q: Is integrated cable management sufficient for long cable runs?
A: The integrated system routes cables efficiently through the mount, but long drops (beyond 100 feet) may require additional conduit or cable trays. Plan your run carefully and account for potential PoE voltage drop on extended distance deployments.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02383-001 is a no-nonsense recessed mount that solves a real problem in commercial surveillance: keeping cameras hidden without sacrificing structural integrity. The aluminum construction delivers the rigidity you need for cameras that weigh 2–4 pounds, and the plenum rating isn't just a nice-to-have — it's a code requirement in many jurisdictions, and you'll need that documentation during compliance audits.
Technical Highlights:
- Aluminum + plenum-rated materials: Handles seasonal temperature swings without warping or drift. The plenum certification closes a box for building compliance — you'll save time in the pre-installation review phase when facilities management confirms code alignment.
- Adjustable tilt and rotation: Eliminates the need to disturb the ceiling a second time if field-of-view tweaks emerge during camera handoff. Lock it tight once positioned; loose mounts will drift over months due to HVAC vibration.
- Integrated cable management: Keeps network and power runs contained, reducing accidental damage and visible clutter. On long runs, verify your PoE budget — extended cable drops can introduce voltage loss that matters on 802.3af-powered cameras.
Deployment Considerations:
- Recessed mounting demands ceiling access and planning — coordinate with facilities early. Metal grid ceilings are easiest; drywall or concrete require different hardware and planning.
- The 02383-001 works outdoors, but salt spray or coastal environments need additional protective coating on the aluminum to prevent oxidation and corrosion over 3–5 years.
- Always confirm camera model compatibility before ordering — weight and footprint variation across Axis dome lines can cause fitment issues or inadequate support.
Deploy the 02383-001 in retail, corporate office, or institutional settings where aesthetic integration is a requirement and you have standard ceiling infrastructure. It's not a universal mount, but within its envelope it's a solid, spec-compliant choice that will remain invisible and reliable for years.
