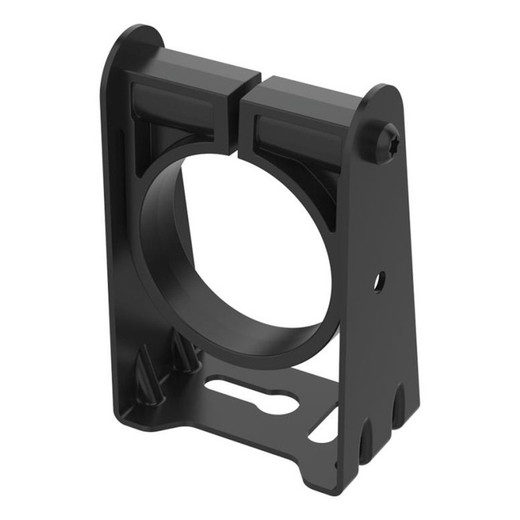

Axis TF1901-RE 360-Degree Swivel Mount 4-Pack - 02212-001

Axis 02212-001 TF1901-RE Swivel Mount 4-Pack

Overview

The Axis 02212-001 is a pack of four swivel mounts designed to retrofit and reposition compatible Axis thermal and standard sensor units. Each mount delivers full 360-degree rotation, allowing you to dial in viewing angles after initial installation without unmounting the camera or sensor — a practical advantage when site layouts shift or coverage gaps emerge post-deployment.

Key Features

• 360-Degree Swivel: Full rotation in the horizontal plane eliminates the need to physically relocate the mount itself. Useful for fine-tuning coverage angles on thermal cameras where repositioning the entire unit risks disrupting calibration or alignment with mounting hardware.
• IP66 Environmental Rating: IP66 means direct water spray and dust won't compromise the mount or cause corrosion at the pivot joint — critical for outdoor thermal deployments where condensation and salt spray can degrade standard hardware. This is not submersion-rated (that requires IP67 or higher), so avoid enclosures that trap standing water.
• Compatibility with Thermal and Standard Sensors: Works with F2105-RE Standard Sensor Unit, F2135-RE Fisheye Sensor Unit, P1280-E Thermal Network Camera, and FA1080-E Thermal Sensor Unit. Thermal cameras are often deployed in fixed locations, so the ability to adjust viewing angle without reinstallation reduces service calls.
• Durable Metal Construction: Metal build withstands vibration and movement without loosening over time — a real issue with plastic mounts in high-traffic or industrial environments.
• Compact Footprint: Each mount measures 5.5" × 5.5" × 2.3", keeping the overall assembly low-profile and suitable for tight mounting spaces such as warehouse racks or ceiling cavities.
• Lightweight Per Unit: At 0.62 lbs per mount, installation is straightforward and doesn't require reinforced wall anchors or ceiling brackets — standard fasteners suffice for most applications.

Integration & Compatibility

The 02212-001 is a direct-fit accessory for Axis thermal and standard sensor modules. Installation involves bolting the sensor to the swivel base using the supplied mounting hardware, then securing the assembly to a wall, ceiling, or pole. No electrical connections are required — the swivel is purely mechanical. Compatible with thermal network cameras and sensor units in Axis's Frame portfolio, making it a straightforward retrofit for existing deployments.

What's in the Box

• 4 x Axis TF1901-RE Swivel Mounts
• Mounting Hardware
• Installation Guide

When to Choose a Different Model

If you require adjustment in multiple planes (tilt and pan), or if you need motorized remote repositioning, a PTZ or articulated bracket system will be necessary. The TF1901-RE is rotation-only — it solves single-axis fine-tuning, not full-range repositioning. For indoor thermal deployments where environmental sealing is less critical, standard aluminum mounts may suffice and cost less.

Frequently Asked Questions

Q: Can I use the Axis 02212-001 with non-Axis thermal cameras?

A: The mount is designed specifically for the listed Axis sensor units. Cross-compatibility depends on the mounting interface of third-party cameras, which is not documented here. Contact the camera manufacturer to confirm.

Q: What is the maximum weight the swivel can support?

A: The evidence supplied does not specify a load rating. Consult the datasheet or contact Axis technical support for safe working load limits, especially for heavier thermal sensor assemblies.

Q: Is the IP66 rating sufficient for high-pressure washdown environments?

A: IP66 handles direct spray but not high-pressure jets or full submersion. For washdown areas, verify the mount's spray-jet tolerance, and consider sealed conduit for any electrical connections near the pivot point.

Q: Do I need additional fasteners beyond what is supplied?

A: The kit includes mounting hardware for installation. For specialized surfaces (concrete, stainless steel), you may need site-specific anchors or fasteners, which are not included.

Q: Can the 02212-001 be installed indoors, or is it outdoor-only?

A: The IP66 rating makes it suitable for either indoor or outdoor use. The design is not application-restricted, so it can be deployed in dry indoor spaces or wet exterior locations.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02212-001 addresses a real workflow friction point: thermal and sensor unit repositioning after mount. Most installers don't anticipate angle tweaks post-commissioning, but coverage gaps and shadow zones reveal themselves only after live deployment. This 4-pack gives you the mechanical flexibility to rotate each sensor up to 360 degrees without breaking the electrical circuit or risking calibration drift that sometimes happens when thermal units are unmounted and remounted.

Technical Highlights:

• IP66 Sealing: Direct-spray resistance keeps the swivel pivot and fastener hardware protected in salt fog, humidity, and washdown-adjacent zones. This matters for thermal sensors near loading docks or cooling towers where corrosion is a silent killer of mechanical joints.
• 4-Pack Pricing Efficiency: Bundling four units costs less per unit than buying individually. If you're deploying a thermal monitoring array (warehouse perimeter, thermal battery racks), the 02212-001 delivers economy of scale while keeping spares on hand.
• Compact 5.5" × 5.5" Footprint: Fits into constrained overhead or wall space without requiring additional support brackets or reinforcement — a win for retrofit projects where mounting real estate is already spoken for.

Deployment Considerations:

• Load rating is not specified in the evidence. Thermal sensor units vary in weight; confirm the swivel's safe working load before committing to permanent installation, especially for ceiling-mounted P1280-E thermal cameras where failure is a fall hazard.
• Single-axis rotation only. If you need tilt or pan adjustment, you'll need a separate articulating or PTZ mount. Don't retrofit this into a scenario demanding true 2D repositioning.

Best fit: multi-camera thermal deployments (cold-chain warehouses, data-center perimeter scans, battery-storage facilities) where post-installation angle refinement is routine and IP66 sealing is a cost saver versus replacing corroded hardware annually.
