Axis TF1204-RE Recessed Mount 4-Pack - 03511-001

Axis 03511-001 Recessed Mount 4-Pack for F-Series Sensors

Overview

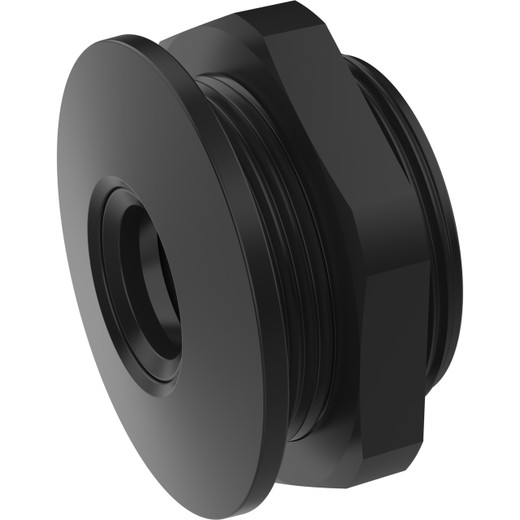

The Axis 03511-001 is a 4-pack of black aluminum recessed mounts engineered for flush-mount installation of AXIS F-series sensor units into walls, glass, plastic, and metal panels. Each mount assembly seals the sensor cavity against moisture ingress — a critical requirement when embedding surveillance optics in panel materials where standing water or condensation can degrade image clarity and sensor lifespan. The recessed design eliminates protrusions, delivering the discrete aesthetic demanded in corporate, retail, and hospitality environments without sacrificing weathertight performance.

Compatibility

Fits AXIS F210X-RE and F213X-RE sensor units. Accommodates panel thicknesses from 1–15 mm, supporting installation into drywall, tempered glass partitions, acrylic, powder-coated metal, and modular wall systems. Verify your F-series sensor model includes the '-RE' suffix for recessed-mount compatibility before ordering.

Installation Notes

Black aluminum casing is corrosion-resistant in both indoor and outdoor environments — no additional protective coating required. The waterproof gasket seals the mounting cavity; ensure panel surfaces are clean and dry before installation. Panel thickness measurement is critical — verify actual material depth falls within the 1–15 mm tolerance to achieve proper seal engagement. Operating temperature range is –20°C to 60°C (–4°F to 140°F); storage rated to –40°C to 70°C (–40°F to 158°F), so recessed mounts can be safely stocked and shipped in cold climates. Each mount includes a drill template and installation guide.

What's in the Box

• 4x TF1204-RE recessed mount assemblies (black aluminum)
• 4x drill templates
• 4x installation guides
• Weatherproof sealing gaskets
