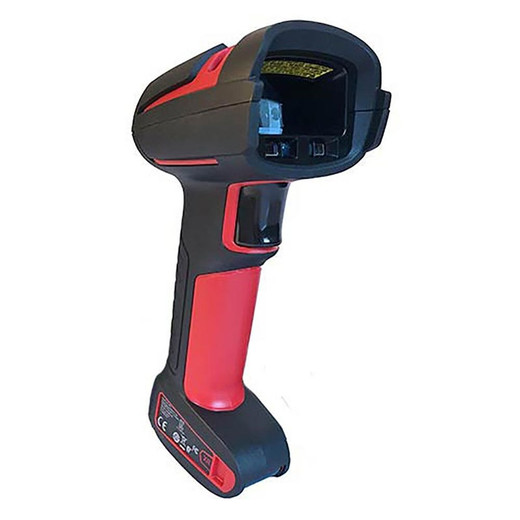

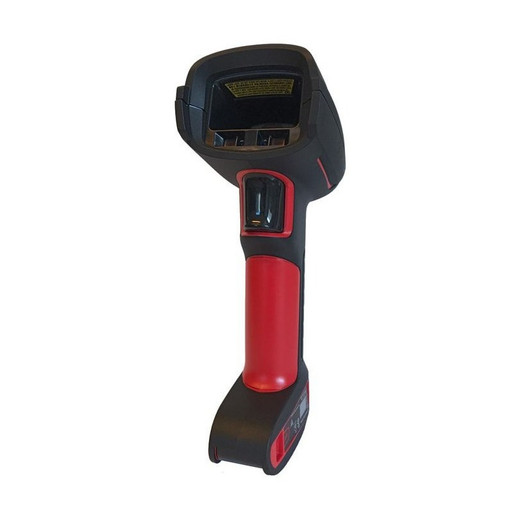

Honeywell 1990IXR-3USB-N Granit XP 199Xi Area Imager Barcode Scanner
The Honeywell 1990IXR-3USB-N is a wired area imager scanner built for point-of-sale and warehouse environments where durability and universal barcode compatibility matter more than portability. This corded USB device decodes both 1D and 2D barcodes—EAN, UPC, Code 128, QR Code, Data Matrix, and more—without firmware changes, eliminating the need to maintain separate scanner SKUs for different barcode types across your operation.
Key Features
- Area Imager 1D/2D decoding: Single device reads linear and 2D barcodes with first-pass accuracy. No more swapping between laser and 2D scanners for mixed-format workflows. Critical when supply chains now blend traditional UPCs with QR codes for track-and-trace.
- IP65 ingress protection: Dust and spray-water resistant without sealed enclosures or special cooling. Suitable for checkout lanes, humid warehouse zones, and outdoor receiving docks. Not submersion-rated (that requires IP67), so avoid dunking or pressure-wash spray.
- 2.0 m (6.5 ft) drop rating: Handles concrete floor impacts typical in active picking and packing areas. Reduces replacement costs in high-traffic warehouse environments where daily drops are expected.
- 5–80 cm working range: Close-range distance accommodates both handheld scanning at arm's length and fixed-mount installation on checkout conveyor lines or inbound scan stations. Longer-range scanners (12+ meters) aren't needed here—this is purpose-built for near-field capture.
- USB corded connectivity: Wired connection to POS terminal or WMS workstation eliminates battery management and Bluetooth pairing overhead. Guarantees power availability during 24/7 sort-line or checkout operations; no surprise downtime from dead batteries mid-shift.
- Operating temperature –40°C to 70°C (–40°F to 158°F): Bridges climate-controlled retail environments and unheated cold-storage zones without degradation. Field operations in seasonal outdoor logistics or frozen-food warehouses remain reliable. Verify site conditions fall within this range before deployment to high-altitude or extreme-cold sites.
- Multi-symbology support: Decodes EAN, UPC, Code 128, QR Code, Data Matrix, Code 39, Interleaved 2 of 5, and more in a single device. Reduces inventory complexity when rolling out new barcode standards (e.g., transitioning to 2D track-and-trace codes) without hardware replacement.
Integration & Compatibility
The 1990IXR-3USB-N connects via standard USB to modern barcode scanners integration points: POS systems, warehouse management software, mobile computing terminals, and label-printing stations. Plug-and-play driver support is typical across Windows and Linux environments. No network configuration required—ideal for offline checkouts or field devices in low-connectivity zones. If your WMS or retail system supports USB HID (Human Interface Device) keyboard emulation, this scanner integrates without custom middleware.
Consider this device for fixed-position scanning workflows where the corded limitation is an asset, not a constraint: checkout lines, inbound receiving tables, and sort-line sort stations. If operators need to roam across a 50-meter warehouse floor with handheld scanning, wireless barcode scanners in the same Honeywell Honeywell scanner family may be a better fit.
When to Choose a Different Model
If your operation requires long-range scanning (5+ meters for overhead shelf-height or dock-door labels), this close-range scanner will frustrate operators and create bottlenecks. Similarly, if mobile scanning across a dispersed warehouse is essential, the corded design won't support that—consider a wireless 2D area imager instead. For ultra-high-volume throughput exceeding 1,500 scans per hour with aggressive accuracy SLAs, verify performance benchmarks against the 1990IXR-3USB-N in your specific barcode density and lighting conditions before committing to a large rollout.
Frequently Asked Questions
Q: Does the 1990IXR-3USB-N decode high-density or damaged barcodes?
A: Area imager technology (versus laser) handles degraded and cramped bar-spacing better than single-line laser scanners. Performance depends on barcode print quality and resolution. Test with your actual labels before full deployment.
Q: Is the scanner OPOS (OLE for Point of Sale) compatible?
A: Evidence supports USB HID keyboard emulation. OPOS device class support is not confirmed in the available specification—verify with your POS vendor or contact the manufacturer for driver details.
Q: What's the maximum cable length for USB connectivity?
A: Standard USB 2.0 cables support reliable power and data transmission up to 5 meters (16 feet) without active hubs. Longer runs require a powered USB hub.
Q: Can the 1990IXR-3USB-N be wall-mounted or fixed to a conveyor?
A: The compact handheld form factor supports mounting brackets typical in scanning-station setups. Mounting hardware is not included—specify a third-party bracket compatible with the scanner's grip dimensions.
Q: Does it work in bright outdoor sunlight?
A: Area imagers perform better in high ambient light than laser scanners, but strong direct sunlight can wash out the image sensor. Outdoor mounting should avoid direct sun glare; a sun hood or awning improves reliability.
Q: What's the warranty period for the 1990IXR-3USB-N?
A: Warranty specifics are not documented in available product evidence. Contact the manufacturer or authorized distributor for terms and coverage details.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 1990IXR-3USB-N strikes a practical balance between environmental durability and cost in fixed-position scanning. The IP65 rating and 2.0 m drop protection confirm this is built for active warehouse floors, not just desktop checkout stands. The area imager engine—delivering genuine 1D/2D decode in one SKU—eliminates the operational friction of maintaining parallel scanner inventories for mixed barcode formats. USB corded operation is often dismissed as a liability, but in high-throughput sorting lines or retail checkout banks, wired connectivity is a feature: consistent power, no battery-change delays, and immediate availability.
Technical Highlights:
- 5–80 cm close-range working distance: Optimized for arm's-length handheld scanning and fixed-mount scan-station integration. Eliminates dead zones common in longer-range scanners; trades distance for accuracy and speed in near-field workflows.
- –40°C to 70°C operating window: Bridges climate-controlled retail and unheated cold-storage without downgrade. Cold-chain logistics, seasonal outdoor receiving docks, and indoor sort lines all operate reliably within spec.
- IP65 + 2.0 m drop survival: Concrete floor resilience cuts replacement cycles in high-traffic areas. IP65 means dust and spray-water (rain runoff, hose-down) won't degrade performance—but full submersion or high-pressure washdown exceeds the rating.
Deployment Considerations:
- USB corded design locks the scanner to a fixed station or tethered workstation. This is not a roaming device for dispersed warehouse zones. If operators need to carry scanning across 50+ meters of floor, mobility wins and a wireless 2D scanner becomes necessary.
- Multi-symbology decode removes barcode-type guessing, but barcode print quality (density, contrast, reflectance) still drives performance. Poor label printing will frustrate even the best imager—test with your actual label stock before committing to a bulk order.
Deploy the 1990IXR-3USB-N where stationary scanning dominates: retail checkout lanes, warehouse receiving tables, fulfillment sort-line positions, and outdoor dock scanning under cover. High-volume, near-field barcode capture with rugged environmental tolerance. Not a mobile solution, and that's by design.
