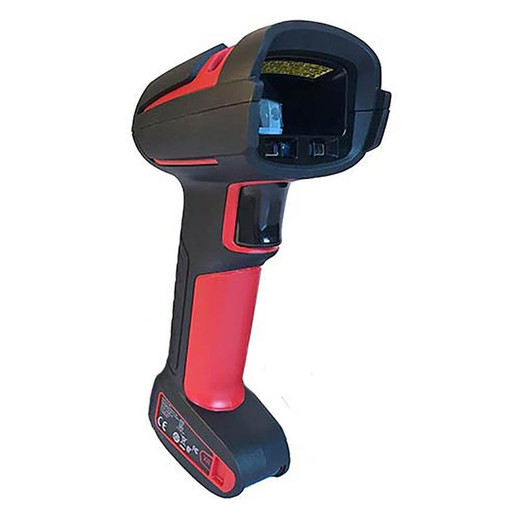

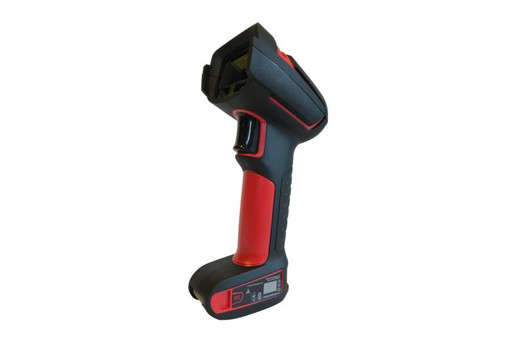

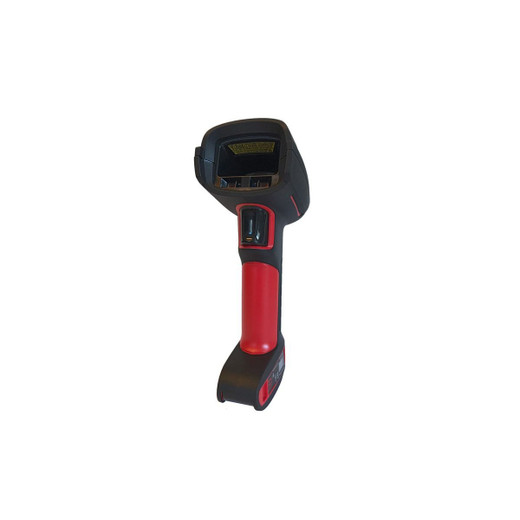

Honeywell 1990IXR-3SER-N Granit XP 199Xi Area Imager Scanner
The Honeywell 1990IXR-3SER-N is a corded area imager scanner built for warehouse receiving, retail point-of-sale, and field service environments where durability and consistent barcode capture matter more than form-factor novelty. This device decodes both 1D and 2D symbologies—including Code 128, EAN, UPC, QR Code, and Data Matrix—without requiring alignment adjustment, a practical advantage when operators are rushing or handling damaged labels. The IP65 rating means moisture, dust, and splashing won't degrade performance, and the 2.0 m (6.5 ft) drop tolerance reflects real warehouse conditions where scanners get dropped, not babied.
Key Features
- Area Imager optics: Captures 1D and 2D barcodes simultaneously without mode switching. Outperforms laser scanners in variable lighting—critical for outdoor receiving docks or facilities with uneven illumination where laser reflection becomes unreliable.
- IP65 environmental protection: Wet, dusty, or splashing warehouse environments won't cause failures. Corrosion-resistant housing handles daily washdowns and humidity without protective cases.
- 2.0 m drop rating: Survives accidental impacts from typical pallet-jack height. Reduces total cost of ownership by eliminating frequent scanner replacement after drops.
- Close-range working distance (5–80 cm): Flexible scanning from near-contact retail checkouts to mid-distance warehouse inventory labels. Accommodates both small package UPCs and large bin labels without refocusing.
- Corded RS-232 and USB connectivity: Direct integration into legacy point-of-sale systems, warehouse management platforms, and modern computing devices. No pairing delays or battery management overhead.
- Extended operating temperature range (-40° to 70°C): Deploys in cold storage facilities, outdoor loading docks, and southern climate warehouses without thermal throttling or shutdown.
- Multi-symbology support: Handles Code 128, EAN, UPC, QR Code, Data Matrix, and standard industrial barcodes in a single pass. Eliminates the need for multiple dedicated scanners per workstation.
Deployment Scenarios
The 1990IXR-3SER-N fits warehouse receiving operations where high-volume scanning meets harsh conditions—receiving clerks use it all day at dock doors exposed to weather. Retail point-of-sale checkout lines benefit from the close working range and quick multi-symbology decode. Manufacturing quality control and asset-tracking teams rely on the consistent first-pass read accuracy across high-density barcodes and variable label conditions. Field service technicians working outdoors or in temperature-variable environments find the extended operating range and IP65 durability essential. Logistics and proof-of-delivery operations use the 1990IXR-3SER-N because corded deployment simplifies integration into mobile carts and stationary workstations without battery concern.
Why Area Imager Over Laser
Laser scanners excel in controlled retail settings with consistent lighting. Area imagers work harder in variable light—warehouses with skylights, outdoor docks, and facilities with uneven fixture coverage. The 1990IXR-3SER-N uses camera-based image capture, so it reads barcodes at odd angles and handles reflective or damaged labels better than laser bounce-back methods. This flexibility reduces scan failures and operator frustration, directly improving throughput in high-volume operations.
Integration & Compatibility
RS-232 and USB connectivity enable plug-and-play integration into existing systems. Legacy point-of-sale platforms and modern inventory management software both recognize standard barcode scanner input. No proprietary drivers required for basic operation; configuration and advanced settings manage through standard terminal commands or manufacturer utilities.
Frequently Asked Questions
Q: Will the 1990IXR-3SER-N handle damaged or faded barcode labels?
A: Area imager technology provides superior performance on worn or partially obscured labels compared to laser scanners. However, heavily damaged labels beyond machine readability will fail on any scanner technology. Test with your actual label stock before deployment.
Q: Can I use the 1990IXR-3SER-N outdoors in rain?
A: IP65 protection handles splash and moisture in wet conditions, but it is not submersible. Direct heavy rain or spray may eventually find seams; consider a protective overhang or mounting position at loading docks. For fully submersible deployment, specify IP67 or higher.
Q: What happens if I drop the scanner more than 2 meters?
A: The 2.0 m drop rating is tested per manufacturer specification and does not guarantee survival beyond that height. Drops from higher elevations or onto hard surfaces like concrete may cause damage. Evaluate your actual drop risk before purchase.
Q: Does the 1990IXR-3SER-N work with my warehouse management system?
A: Standard RS-232 and USB input are recognized by virtually all modern WMS platforms and legacy systems. Verify your WMS supports barcode scanner input; configuration is typically straightforward. Contact your WMS vendor or system administrator if integration questions arise.
Q: Is the cord length fixed, or can I replace it?
A: The 1990IXR-3SER-N is a corded device; cord length and connector type are fixed. Plan your workstation layout around cable routing before deployment. Extensions or adapters may be available through the manufacturer.
Q: What barcode formats does the 1990IXR-3SER-N support?
A: Code 128, EAN, UPC, QR Code, Data Matrix, and standard 1D/2D industrial symbologies are supported. Consult the datasheet for a complete list of supported formats and configuration options.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Granit XP 199Xi 1990IXR-3SER-N represents Honeywell's no-nonsense approach to industrial barcode capture. The IP65 rating and 2.0 m drop tolerance address real warehouse challenges where equipment encounters moisture, dust, and accidental impacts daily. Area imager technology delivers a genuine operational advantage in variable lighting—outdoor receiving areas or facilities with inconsistent fixture coverage show measurably fewer read failures compared to laser-based alternatives.
Technical Highlights:
- Area Imager optics: Camera-based image capture eliminates laser reflection failures in variable lighting. Outdoor docks and skylighted warehouses see fewer scan retries and faster throughput.
- IP65 environmental rating: Direct spray, dust, and washdown don't require protective cases. Corrosion-resistant housing survives coastal salt air and high-humidity cold storage longer than consumer-grade scanners.
- 2.0 m drop survival: Tested impact tolerance reflects pallet-jack height. Real cost savings when scanners stay in service after accidental drops instead of requiring replacement every six months.
- –40° to 70°C operating range: Cold storage facilities and southern climate outdoor deployments run without thermal throttling. Enables geographic flexibility and seasonal variation without equipment swaps.
Deployment Considerations:
- Corded design eliminates battery management but requires fixed workstation planning. Cable routing and connector placement should be finalized during site layout, not after installation.
- Area imagers can struggle with highly reflective or holographic labels under certain angles—test sample labels from your operation before committing volume orders.
- USB and RS-232 support modern and legacy systems equally; verify cable pinout and protocol settings match your host device before first deployment.
Choose the 1990IXR-3SER-N for high-volume warehouse receiving, retail checkout, and outdoor logistics where durability and consistent multi-symbology decode outweigh the need for cordless mobility. The -40° to 70°C range positions this device for cold storage, southern distribution centers, and outdoor docks where environmental stress is routine, not exceptional.
