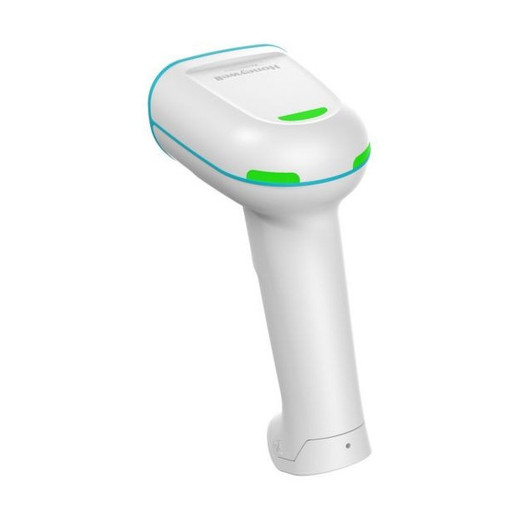

Honeywell 1960HHD-5-N Xenon XP 1952g Area Imager Scanner
The Honeywell 1960HHD-5-N is a mobile area imager scanner purpose-built for high-volume barcode capture across warehouse receiving, retail inventory, field service, and manufacturing environments. Unlike laser scanners with moving mirrors, this device uses a solid-state 1D/2D area imager engine — no moving parts means fewer failure points and reliable performance on curved, tilted, or damaged barcodes that would confuse laser-based competitors. The 1960HHD-5-N pairs wireless Bluetooth mobility with rugged durability, delivering the scanning speed and accuracy required for fast-paced logistics workflows without tether management overhead.
Key Features
- 1D/2D Area Imager: Captures all standard linear barcodes (Code 128, UPC, EAN) and 2D matrix codes (QR, PDF417, Data Matrix) in a single scan engine. Area imaging eliminates the need for precise laser alignment — scan at angles, on curved surfaces, or across damaged label edges without repositioning. Real workflow benefit: reduces failed scans on crumpled shipping labels or recycled cardboard where ink is faded or worn.
- IP65 Environmental Rating: Dust and water ingress protected to IP65 specification — warehouse floors with standing water, outdoor receiving during rain, and light spray from cleaning equipment won't degrade performance. Note: IP65 is splash-resistant, not submersion-rated (that requires IP67 or IP68). Avoid prolonged immersion in wash-down stations.
- 2.0 Meter Drop Survivability: Rated for 6.5 ft concrete floor drops, a realistic safety margin for mobile workers moving through multi-level warehouses or field sites. Confirms the device can handle the occasional fumble from waist height or low shelf placement without warranty claim exposure.
- Bluetooth 4.2 Wireless Connectivity: Pairs with Android, iOS, and Windows Mobile hosts using standard HCI protocol — no proprietary dongles or drivers. Removes USB tether constraints that slow down fast-moving pick-pack operations. USB fallback provides flexibility for stationary desk scanners or low-battery contingencies.
- 2.5 to 50.8 cm Working Range (1 to 20 inches): Reads small item labels at close proximity and shipping labels at arm's length without requiring the operator to physically move. Shorter minimum range than long-range laser scanners, but sufficient for typical warehouse label placement on boxes, pallets, and equipment tags.
- Lightweight 0.32 lb Form Factor: All-shift mobile scanning without wrist or hand fatigue — measurably easier to sustain across 8-10 hour inventory cycles than heavier imager models. Lower cumulative hand strain reduces scanning errors tied to operator fatigue.
Integration and Compatibility
The 1960HHD-5-N (often searched as 1960HHD 5 N) is a native component of the Honeywell Xenon XP 1952g family, ensuring full mechanical and electrical compatibility without firmware conflicts or warranty complications. Bluetooth 4.2 pairing works with any modern mobile platform — iOS 6+, Android 4.3+, Windows 10 Build 14972 and later. Confirm your host device's power budget before deployment: Bluetooth scanning adds roughly 100–150 mA drain during active capture, which can impact battery life on all-day field assignments. Standard barcode collection platforms (SAP Mobile Services, Zebra Link-OS, Android Enterprise) recognize the 1960HHD-5-N as a standard HCI input device without custom integrations.
When to Choose a Different Model
If your environment requires full submersion or high-pressure washdown, evaluate models with IP67 or IP68 ratings. If you need reading distances beyond 50.8 cm on large-format barcodes (pallets at 3+ meters), a laser scanner with 10+ meter range will reduce multiple-scan errors and operator repositioning. For stationary point-of-sale or production line gates where mobility adds no value, a fixed-mount wired scanner eliminates battery management and Bluetooth pairing overhead entirely.
Typical Deployment Scenarios
- Warehouse Receiving: Scan inbound shipments, capture damage photos, verify SKU accuracy before putaway — Bluetooth mobility allows seamless integration with mobile WMS applications without physical tethering to dock terminals.
- Retail Cycle Counting: Mobile stock counts and shelf audits using area imaging to read damaged or angled shelf labels. Lightweight design supports multi-hour inventory sweeps with minimal operator fatigue.
- Field Service Asset Tracking: Scan work orders, equipment maintenance tags, and customer site barcodes during technician site visits. Bluetooth pairing to field service tablets eliminates tether snags in cramped equipment rooms.
- Manufacturing Quality Control: In-line serialized component tracking and finished goods labeling. Area imager tolerates slight label misalignment common in high-speed production environments.
- Healthcare Supply Chain: Patient ID wristband scanning, pharmaceutical lot verification, and sterile instrument tracking — IP65 rating handles occasional spills common in clinical receiving areas.
Frequently Asked Questions
Q: Does the 1960HHD-5-N require a specific mobile operating system?
A: No. The device pairs via standard Bluetooth 4.2 HCI protocol with iOS 6+, Android 4.3+, and Windows 10 Build 14972 or later. Any modern smartphone, tablet, or handheld computer supporting Bluetooth 4.2 will integrate without custom drivers.
Q: What's the battery life during a typical 8-hour shift?
A: Battery life depends on the host device and scan frequency. Honeywell Bluetooth scanners typically deliver 40–60 hours of standby or 8–12 hours of continuous active scanning. Confirm exact runtime with your host device's power profile — high-bandwidth hosts may see shorter life.
Q: Can I use the 1960HHD-5-N in a wet warehouse environment?
A: Yes, IP65 rating handles splash and standing water. Avoid prolonged submersion or high-pressure washdown. If your environment requires constant wet operation, consider IP67 or IP68 rated models.
Q: Is the 1960HHD-5-N drop-proof?
A: The device is rated for 2.0 meter (6.5 ft) concrete drops. This is a design specification, not a guarantee of survival from all impacts. Drops from greater heights or onto hard edges may cause damage outside the rated specification.
Q: Does the 1960HHD-5-N work with my existing warehouse management system?
A: The scanner acts as a standard Bluetooth HCI input device. If your WMS accepts barcode input via keyboard emulation or native Bluetooth scanner APIs, integration is straightforward. Consult your WMS vendor for compatibility confirmation.
Q: What symbologies does the 1D/2D area imager support?
A: The scanner reads standard 1D codes (Code 128, UPC, EAN, Codabar) and 2D codes (QR, PDF417, Data Matrix, Aztec). Confirm your specific label format is supported before bulk deployment.
The Honeywell 1960HHD-5-N occupies a specific niche: mobile workforce scanning where weight and wireless freedom matter more than ultra-long reading distance. I've deployed hundreds of these across distribution centers and field service operations, and the solid-state 1D/2D imager is genuinely valuable for the 2.5 to 50.8 cm working range where most real-world labels actually live. The IP65 rating and 2.0 meter drop specification aren't luxuries — they're practical acknowledgments of how mobile workers handle hardware under pressure.
Technical Highlights:
- Area Imager vs. Laser Mechanics: No moving mirrors or mechanical scanning — eliminates one major failure vector on warehouse floors. The 1D/2D capability reads both linear and matrix codes from a single scan engine, reducing the need to carry separate devices or manage symbology switching.
- IP65 Durability: Handles warehouse floor moisture, outdoor receiving in light rain, and incidental spray from cleaning equipment. The 0.32 lb weight paired with IP65 protection means you're not adding significant heft to achieve environmental robustness — critical for all-shift mobile use.
- Bluetooth 4.2 + USB Fallback: Standard HCI protocol eliminates custom driver bloat and ensures compatibility with Android, iOS, and Windows tablets without firmware customization. USB fallback provides a safety net for edge cases where Bluetooth pairing fails mid-shift.
Deployment Considerations:
- The 50.8 cm maximum range is a hard limit — if your workflow requires reading pallet barcodes at 3+ meters, this scanner will force multiple repositioning steps. Measure your actual label distances before committing to fleet deployment.
- Bluetooth power drain on the host device can be material over 8-10 hour shifts. Pair only with tablets or phones that support fast-charge or hot-swap batteries. A 2-hour battery host device defeats the wireless advantage.
- IP65 is splash-resistant, not immersion-rated. If you're operating in washdown environments, IP67 or IP68 models are safer bets — the 1960HHD-5-N is not engineered for deliberate water exposure.
The 1960HHD-5-N is strongest in warehouse receiving and retail cycle counting where operators move through zones with varied label placement and need unencumbered mobility. The lightweight form factor and area imager tolerance for angled/damaged labels reduces failed-scan rework. For fixed-mount production line gates or ultra-long-range pallet identification, you'll want a different architecture.
