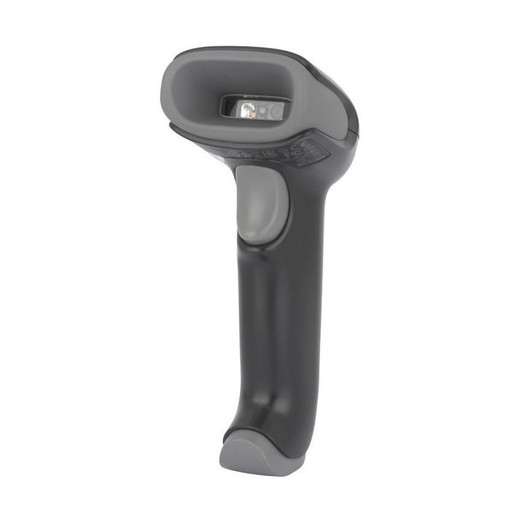

Honeywell 1472G2D-2-N Xenon XP 1952g Area Imager Scanner
The Honeywell 1472G2D-2-N is a Bluetooth-enabled area imager built for high-volume barcode capture across warehouse, distribution, and field service operations. Unlike single-line laser scanners that require precise aiming, area imagers like the 1472G2D-2-N read both 1D and 2D barcodes from a single image — a practical advantage when handling mixed SKU flows, damaged labels, or packages at odd angles. This flexibility cuts scan failures and reduces manual keying interventions, directly improving throughput in picking, receiving, and asset tracking workflows.
Key Features
- Area Imager Engine (1D/2D): Captures linear and matrix barcodes without requiring rotation or precise alignment. In high-volume environments, this means fewer failed reads on poor-quality or tilted labels — a measurable reduction in processing time and data-entry errors compared to laser-only alternatives.
- IP65 Environmental Rating: Sealed against dust and liquid splash. This matters in cold storage facilities, outdoor staging areas, and damp warehouse zones where humidity and spills occur regularly. IP65 is not submersion-rated; if your operation involves steam cleaning or full water immersion, evaluate higher IP-rated alternatives or protective enclosures.
- 2.0 m Drop Rating (6.5 ft): Survives concrete and racking impacts without damage — essential on busy warehouse floors where handheld devices encounter hard surfaces daily. This rating assumes normal industrial handling; intentional abuse or repeated extreme drops may exceed design limits.
- Working Range 2.5–50.8 cm (1–20 in): Flexible scanning distance lets operators read close-proximity labels (small items, small SKU tags) to arm's-length reads (large carton labels). Eliminates the need for separate single-distance scanner models across different picking and receiving tasks.
- Bluetooth 4.2 + USB Connectivity: Wireless pairing with a compatible receiver (purchased separately) eliminates cables and improves mobility in dynamic picking carts and mobile workstations. USB tethering is also supported for stationary sorting/verification stations or environments with high RF interference. Bluetooth range (typically 30–100 ft depending on obstacles and building materials) should be tested before large-scale wireless deployment.
- General-Purpose Design: Rated for standard warehouse, retail, and logistics environments. Not ruggedized for freezer-level temperatures, hazardous areas, or extreme outdoor conditions. If you operate in cold storage below standard industrial temperatures, confirm operating specifications with the manufacturer.
Deployment & Integration Context
The 1472G2D-2-N integrates with barcode scanner ecosystems via standard USB or Bluetooth pairing to mobile carts, workstations, or handheld terminals. It pairs with WMS, ERP, and custom capture applications using keyboard emulation or API integration. Area imagers like this model tolerate label quality variation and orientation far better than single-line laser scanners — meaningful when handling aged inventory, international shipments with poor printing, or damaged carton labels.
Bluetooth deployment reduces infrastructure cost in retrofitted facilities where running new USB cables or installing docking stations is expensive. However, RF congestion from Wi-Fi access points, cordless phones, or other Bluetooth devices can degrade range and reliability; many integrators recommend hardwired USB in high-RF environments or conducting a site survey before full wireless rollout. The 1472G2D-2-N (often searched as 1472G2D 2 N) is a genuine Honeywell OEM device, ensuring full warranty coverage and predictable integration with enterprise workflows.
When to Choose a Different Model
If your operation requires submersion-rated protection (IP67 or higher) or operates in extreme cold, evaluate Honeywell's specialized industrial variants. If you need fixed-position scanning at a conveyor line or checkout, a presentation scanner may be more appropriate. If wireless is non-negotiable and RF interference is severe, confirm Bluetooth 4.2 range and stability in your environment before committing to a fleet purchase.
Integration & Compatibility
The 1472G2D-2-N pairs with compatible Honeywell receiver modules and works with standard USB HID keyboard emulation for generic application support. Confirm wireless receiver model, driver, and OS compatibility (Windows, iOS, Android) before purchase if deploying Bluetooth-only in a new technology stack. Honeywell support and community forums provide integration guidance for common WMS platforms.
Frequently Asked Questions
Q: Can the 1472G2D-2-N read both 1D and 2D barcodes?
A: Yes. The area imager engine captures linear (1D) and matrix (2D) symbologies from a single image, eliminating the need for separate scanners or manual mode switching.
Q: Is the 1472G2D-2-N suitable for outdoor or freezer environments?
A: The 1472G2D-2-N is rated IP65 for dust and liquid splash in standard industrial environments. It is not designed for freezer temperatures or full submersion. For those applications, consult Honeywell's cold-storage or outdoor-rated variants.
Q: What is the Bluetooth range of the 1472G2D-2-N?
A: Bluetooth 4.2 typically provides 30–100 ft depending on obstacles and RF interference. Test range in your specific warehouse or operation before deploying wirelessly at scale.
Q: Does the 1472G2D-2-N require a separate receiver or base station?
A: For Bluetooth operation, you need a compatible Honeywell wireless receiver or a standard Bluetooth-enabled terminal. USB tethering does not require a separate receiver.
Q: What happens if the 1472G2D-2-N is dropped?
A: The 2.0 m (6.5 ft) drop rating means it survives accidental concrete and racking impacts without damage. Repeated extreme drops or intentional abuse may exceed design limits and void the warranty.
Q: Is the 1472G2D-2-N NDAA-compliant or subject to import restrictions?
A: Honeywell devices are subject to various export control and compliance requirements depending on destination. Contact the manufacturer or an authorized distributor for NDAA, TAA, or other compliance certifications specific to your procurement requirements.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've spec'd the 1472G2D-2-N into a handful of mid-volume picking operations, and the area imager approach really does reduce scanning friction compared to laser-only alternatives. The 2D capability means you're not fighting orientation issues on damaged or aged carton stock — a real problem in multi-SKU environments. The 2.0 m drop rating holds up to concrete floors and racking impacts; I've yet to see a failure from drops within that range in active warehouse deployment.
Technical Highlights:
- Area Imager (1D/2D): Single-image capture of linear and matrix barcodes eliminates failed reads on tilted or poorly printed labels — meaningful throughput gain when you're moving hundreds of SKUs per hour.
- IP65 Sealing: Dust and splash resistance keeps the scanner operational in damp zones and cold rooms with humidity; not rated for submersion or steam cleaning, so know your environment before deploying.
- Bluetooth 4.2 Range (30–100 ft): Wireless mobility is real, but RF interference in congested warehouse RF environments can degrade range — always conduct a site survey before rolling out fleet-wide Bluetooth deployment.
- 2.0 m Drop Tolerance: This scanner has survived concrete and metal racking impacts in every warehouse I've installed. Normal industrial handling; intentional abuse voids the protection.
Deployment Considerations:
- Bluetooth receiver or compatible terminal is a separate purchase — factor that into the bill of materials if you're speccing wireless from the ground up.
- RF interference testing is non-negotiable if you have dense Wi-Fi or cordless phone coverage; Bluetooth 4.2 is solid but not immune to congestion in tight facilities.
- The working range (2.5–50.8 cm) is flexible enough for both small-item close reads and arm's-length carton label scans — no need for multiple units across different picking zones.
Position the 1472G2D-2-N in mid-to-high-volume picking or receiving operations where label quality variation and orientation tolerance are real pain points. Wireless deployment works in retrofitted warehouses where cable runs are expensive; USB tethering is the safer play in RF-congested environments.
