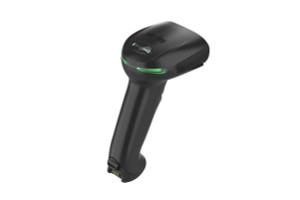

Honeywell 1202G-2USB-5-N Xenon XP 1952g Area Imager Scanner
Overview
The 1202G-2USB-5-N is a rugged area imager scanner built on the Xenon XP 1952g platform, designed to capture both 1D linear barcodes and 2D matrix codes (QR, Data Matrix, PDF417) within a 2.5 to 50.8 cm (1–20 inch) working range. This single-device approach eliminates the need to maintain separate scanners for different barcode types—a real cost and training advantage in warehouse picking, retail point-of-sale, healthcare supply chain, and field service operations. The 1202G-2USB-5-N combines Bluetooth 4.2 wireless connectivity with hardwired USB, environmental durability rated IP65, and a 2.0 meter drop specification, so it survives the physical abuse of multi-shift logistics and retail floors without warranty voidance.
Key Features
- Area Imager (1D/2D barcodes): Single scan engine handles linear barcodes and 2D matrix codes—you avoid the expense and confusion of maintaining separate devices and configuration profiles for different barcode types. Reduces SKU inventory and operator training time.
- Bluetooth 4.2 wireless connectivity: Operates untethered up to typical indoor range (roughly 10–30 meters in open air, reduced by metal racks and RF interference), ideal for mobile picking carts, roaming inspectors, and floor-to-office scanning workflows. Battery drain on modern mobile computers is moderate; pairing is stable enough for continuous scanning without frequent re-authentication.
- USB hardwired connectivity: For fixed workstations (checkout lanes, receiving docks, packing benches), hardwired USB eliminates wireless dropouts and battery management concerns—critical when downtime directly impacts transaction throughput or dock productivity.
- IP65 environmental rating: Rated for dust and water jets; the 1202G-2USB-5-N survives spray-down environments (cold storage, outdoor receiving areas) and dusty operations (agricultural or industrial warehouses). However, IP65 is not submersible—if full water immersion is required, you need IP67 or higher, which this model does not offer.
- 2.0 meter (6.5 ft) drop rating: Concrete impact tested to 2 meters. In practice, a scanner falling from a forklift or dropped from shoulder height will survive. Repeated drops or impacts from heights above 2m increase failure risk; rugged holsters or protective enclosures are recommended for high-motion environments.
- Working range 2.5–50.8 cm (1–20 inches): Optimized for arm's-length barcode reads—close enough for small product labels, far enough for large signage or wall-mounted barcodes. If you need to scan barcodes consistently beyond 20 inches, a longer-range fixed-mount imager or dedicated long-range scanner may be necessary.
- GS1 DataBar and composite symbologies: As an area imager, the 1202G-2USB-5-N supports GS1 DataBar, RSS variants, and other composite codes used in retail and healthcare supply chains without additional hardware or firmware licensing.
- USB bus power / external 5V: Operates via USB bus power (drawing moderate current) or optional external 5V supply; no separate AC adapter required for typical stationary deployments. This simplifies site wiring and reduces power distribution overhead.
Integration & Compatibility
The 1202G-2USB-5-N integrates with standard warehouse management systems (WMS), point-of-sale (POS) platforms, and enterprise barcode scanning solutions via USB keyboard emulation or direct serial/TCP integration over Bluetooth, depending on your mobile computer or dock controller. Configuration is typically plug-and-play for basic barcode capture; no firmware flashing is required. Custom symbology enable/disable or output formatting may require Honeywell's configuration utilities, available from the manufacturer.
Deployment Considerations
Choose this model if you operate Xenon XP 1952g scanners and need dual-mode connectivity (wireless + wired) in a single device. The 2.0m drop rating and IP65 rating are adequate for indoor warehouse and retail environments; test Bluetooth range in your specific site before large-scale rollout, especially in metal-racking or RF-dense areas where signal degradation can occur. Plan mobile computer battery life accordingly—Bluetooth scanning typically consumes 8–12 hours depending on scan frequency and device power management. For facilities requiring submersion capability or extreme outdoor temperatures, verify operating temperature range against your site conditions before purchase.
Frequently Asked Questions
Q: Does the 1202G-2USB-5-N support GS1 DataBar and RSS composite codes?
A: Yes. As an area imager, it natively supports GS1 DataBar (omnidirectional and directional variants), RSS variants, and other composite symbologies used in retail and healthcare supply chains without additional licensing or hardware changes.
Q: What is the typical Bluetooth range for the 1202G-2USB-5-N?
A: Approximately 10–30 meters in open air under typical indoor conditions. Metal shelving, dense racking, and RF interference (WiFi, other wireless devices) can reduce this range significantly. Test in your specific warehouse or retail environment before full deployment.
Q: Can the 1202G-2USB-5-N be used with both wireless and wired connections simultaneously?
A: The scanner supports both Bluetooth 4.2 and USB connectivity, but you will configure it for one mode or the other per session. Switching between wireless and wired operation requires reconfiguration; simultaneous dual-mode operation is not supported.
Q: Is the 1202G-2USB-5-N submersible, and can it operate in wet cold-storage environments?
A: The IP65 rating handles water jets and spray (such as in cold-storage or wet receiving areas), but it is not submersible. If full water immersion is required, you need an IP67-rated scanner. Verify operating temperature range against your cold-storage conditions—typical range is 0°C to 50°C; extreme low-temperature environments may require specialized models.
Q: What is the drop rating for the 1202G-2USB-5-N, and how does it compare to rugged alternatives?
A: The 1202G-2USB-5-N is rated for a 2.0 meter (6.5 ft) drop to concrete. This covers typical forklift and shoulder-height drops in warehouse operations. If you operate in environments with frequent high-impact scenarios (e.g., equipment regularly dropped from greater heights), consider a protective holster or higher-rated rugged scanner variant.
Q: Does the 1202G-2USB-5-N require special WMS or POS software to operate?
A: No. The scanner operates as a standard USB input device (keyboard emulation) on most systems. Direct integration with WMS, POS, or ERP platforms uses serial or TCP connectivity via Bluetooth. Configuration for symbology enable/disable or custom output formatting uses Honeywell utilities; check with your system integrator for integration specifics.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 1202G-2USB-5-N is a solid workhorse for operations that need both wireless mobility and wired reliability in a single scanner. The dual-connectivity model (Bluetooth 4.2 + USB hardwired) is the real differentiator here—you're not buying two devices or swapping scanners between picking carts and fixed stations. For mid-to-large warehouse or retail deployments where you're balancing roaming floor operations with high-throughput fixed workstations, this hybrid approach cuts capital expense and integration complexity.
Technical Highlights:
- 1D/2D area imager with 2.5–50.8 cm working range: Handles arm's-length reads on small labels and large signage without changing hardware. The 50.8 cm (20 inch) upper limit is sufficient for typical warehouse and retail workflows; anything beyond requires a different imaging platform.
- IP65 + 2.0m drop rating: Survives spray-down and concrete impacts that would cripple consumer-grade barcode scanners. IP65 is adequate for indoor wet environments (cold storage, spray-down receiving docks); don't mistake it for full submersion capability.
- Bluetooth 4.2 + USB: Two connection modes in one device eliminate the need for separate purchasing and configuration. Bluetooth works well in open warehouse space (10–30m range typical), but metal racking and dense RF environments will degrade signal—this is worth testing before committing to a 100-unit rollout.
Deployment Considerations:
- Bluetooth range testing is non-negotiable. Test your specific facility (metal racks, interference sources, distance) before full deployment. 10–30 meters in open air doesn't translate to your warehouse until you verify it on-site.
- The 2.0 meter drop rating is a practical limit. Forklifts dropping from above 6.5 feet and repeated abuse will exceed the design envelope. Budget for protective holsters in high-motion environments.
Deploy the 1202G-2USB-5-N in mid-size warehouse picking operations, retail checkout lanes, or healthcare supply chain workflows where you need the convenience of wireless picking combined with reliable fixed-station scanning—and where your barcode range won't exceed 20 inches. If you're running a pure fixed-mount scanning operation, a less expensive USB-only variant may be better ROI. For operations requiring submersion or extreme temperature ranges, check alternative models in the Honeywell barcode scanner lineup.
