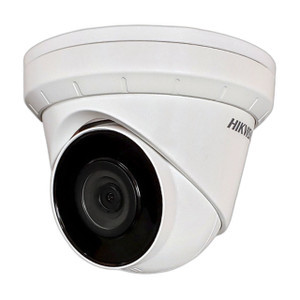

Hikvision ECI-T28F2 8MP 4K Outdoor Turret IP Camera

Hikvision ECI-T28F2 8MP 4K Outdoor Turret IP Camera

The Hikvision ECI-T28F2 is a professional-grade 8MP outdoor turret camera designed for demanding surveillance deployments where low-light performance and environmental durability matter. Delivering native 4K resolution at 3840 × 2160 pixels, this camera captures forensically useful detail across large outdoor areas without excessive bandwidth consumption. The combination of Starlight technology, EXIR 2.0 infrared illumination, and 120 dB wide dynamic range makes the ECI-T28F2 effective in mixed-lighting scenarios common to industrial perimeters, parking facilities, and retail environments.

Key Features

• 8MP 4K Resolution (3840 × 2160): Captures at up to 15 fps in 60 Hz mode. This resolution level delivers sufficient pixel density for identification-class detail (16–32 pixels on face at 3 meters) without forcing excessive storage or network bandwidth compared to higher-megapixel alternatives.
• Starlight + EXIR 2.0 Low-Light Performance: Achieves 0.01 Lux color output and 0 Lux B/W with active IR. The 30-meter infrared range means you cover medium-distance outdoor areas without blind spots during night hours — meaningful when perimeter cameras must work reliably 24/7 without supplemental lighting infrastructure.
• 120 dB Intelligent WDR: Handles simultaneous bright and dark areas in a single frame — critical for backlit loading docks, sunlit parking lots with shadowed building entrances, or mixed indoor/outdoor transitions. Without WDR, you lose either detail in shadows or get washed-out bright zones.
• 2.8mm Fixed Lens, 108° Horizontal FOV: Wide field of view covers expansive areas with a single camera, reducing total deployment cost. The fixed focal length simplifies installation and eliminates focus drift issues common in motorized zoom lenses.
• IP67 Metal Enclosure: Rated for direct rain, dust, and high-pressure jet spray. IP67 means you can deploy this camera without additional weatherproof housings in most outdoor environments — direct cost and complexity savings during installation.
• PoE Powered (802.3af Class 3, ~6.5W max): Operates on standard 802.3af midspan injectors or PoE switches without requiring dedicated power supplies. At under 6.5W, this camera won't exhaust your PoE budget on fully loaded switches, keeping total system power requirements manageable.
• H.265+ Video Compression: Reduces storage overhead 40–60% compared to H.264 at equivalent quality, depending on scene complexity. On 24/7 continuous recording across multiple cameras, this compression efficiency directly lowers NVR storage requirements and network bandwidth consumption.
• Built-in Microphone with Noise Filtering: Mono audio with environment noise filtering provides situational awareness for incidents at the camera location without requiring external audio modules.
• MicroSD Local Recording (up to 256 GB): On-board storage enables failover recording if the network link drops, protecting footage during WAN outages without requiring separate edge storage appliances.
• Pan/Tilt/Rotation Adjustment (0–360°/0–75°/0–360°): Flexible mounting orientation allows you to angle the turret body for cable routing, sun positioning, or clearance without repositioning the bracket — practical on retrofit installations where mount location is fixed.

Detection and Recognition Capability

The ECI-T28F2 delivers 81 meters detection DORI (Detect, Observe, Recognize, Identify distance), with 32 meters observation and 16 meters recognition range. At 16 meters recognition distance, you capture facial detail useful for suspect identification in law enforcement or critical infrastructure scenarios.

Integration and Compatibility

Full network protocol support includes TCP/IP, RTSP, ONVIF Profile S and G, ISAPI, and SDK integration. Enterprise security features include 802.1X authentication, HTTPS encryption, and IP address filtering. Supports dual-stream H.265+/H.264+ encoding with flexible bit rate control (32 Kbps to 16 Mbps), enabling codec fallback for legacy VMS systems while newer deployments benefit from H.265 efficiency. Compatible with iVMS-4200 and Hik-Connect client software for centralized management. Supports up to 6 simultaneous live view channels with 32 user accounts across three privilege levels — sufficient for multi-operator SOC environments or distributed monitoring roles.

When to Choose a Different Model

If your deployment requires telephoto coverage of distant perimeters (100+ meters recognition distance), consider a higher-resolution variant or varifocal lens model in the Hikvision IP camera portfolio. If you need pan/tilt/zoom motion control, explore the Hikvision PTZ line instead. The ECI-T28F2 is fixed-lens and stationary — optimized for wide fixed coverage, not active target tracking.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ECI-T28F2 (often searched as ECI T28F2) strikes a pragmatic balance for mid-to-large outdoor surveillance deployments. The 8MP 4K resolution paired with Starlight + EXIR 2.0 delivers forensically usable nighttime imagery without the bandwidth overhead you'd incur on 12MP or higher-megapixel fixed-lens models. The 120 dB WDR capability is particularly valuable for mixed-lighting industrial and commercial environments — parking structures, loading yards, and retail perimeters where sun position shifts throughout the day.

Technical Highlights:

• H.265+ Compression: Reduces storage footprint 40–60% vs. H.264, a real factor on 24/7 multi-camera NVR deployments. A 30-camera site recording continuously at 8MP can save 10–15 TB of storage per week depending on scene complexity and motion density.
• PoE Class 3 at 6.5W: Enables reliable power delivery across extended runs (100+ meters with Cat6A cabling) without midspan injector overload. On a 48-port PoE+ switch, you can deploy 20–25 of these cameras safely, versus forcing expensive PoE++ infrastructure.
• 30-Meter IR Range + 0.01 Lux Color: The combination means you capture usable detail in total darkness or near-darkness without supplemental lighting infrastructure — a practical cost advantage on perimeters where lighting installation is difficult or impossible.
• ONVIF Profile S/G + ISAPI: Full protocol support means this camera integrates with Milestone XProtect, Genetec, and vendor-agnostic VMS platforms — no lock-in to Hikvision's iVMS-4200 ecosystem, though that option is available if preferred.

Deployment Considerations:

• The 2.8mm fixed lens locks you into ~108° horizontal coverage. If your site requires multiple coverage zones from a single mount point, you'll need multiple cameras or a PTZ — factor that into perimeter planning.
• PoE 802.3af Class 3 draws 6.5W max, but thermal stress on long summer days can edge that higher. If you're in high-ambient-temperature regions, verify your switch's PoE budget includes headroom for thermal margin.
• The turret form factor excels at weather resistance but does create a larger visual footprint than a dome. On aesthetic-sensitive retail or hospitality sites, confirm stakeholder acceptance before deployment.

The ECI-T28F2 is a well-matched choice for perimeter security, parking facilities, and industrial outdoor sites where you need extended nighttime performance, environmental durability, and efficient compression without paying for excessive megapixel count. The engineering supports 24/7 operation with manageable storage and bandwidth costs.

Frequently Asked Questions

Q: What's the maximum IR range on the ECI-T28F2?

A: The camera delivers 30 meters of EXIR 2.0 infrared illumination, extending visibility in complete darkness. Beyond 30 meters, IR fall-off reduces illumination effectiveness; recognition-class detail is typically maintained to 16 meters.

Q: Does the ECI-T28F2 work with Milestone XProtect or other third-party VMS platforms?

A: Yes. The camera supports ONVIF Profile S and G, RTSP, and TCP/IP protocols, making it compatible with Milestone, Genetec, and most vendor-neutral VMS systems. Hikvision's iVMS-4200 and Hik-Connect are also supported for native integration.

Q: How much bandwidth does the ECI-T28F2 consume at 8MP?

A: Bandwidth depends on frame rate and H.265 vs. H.264 encoding. At 15 fps in 4K with H.265+, typical bit rates range 2–6 Mbps depending on scene complexity. H.265+ efficiency reduces this by 40–60% compared to equivalent H.264 streams, allowing multiple cameras on a single Gigabit Ethernet link.

Q: Can the ECI-T28F2 be wall-mounted, or is it ceiling-only?

A: The turret form factor supports flexible mounting orientations via pan/tilt/rotation adjustment (0–360°/0–75°/0–360°). Wall, ceiling, and corner mounting are all feasible depending on your bracket selection and cable routing path.

Q: What's the storage capacity on the microSD card slot?

A: The ECI-T28F2 supports microSD cards up to 256 GB, providing local failover recording. At 8MP with H.265+ compression, a 256 GB card typically holds 24–48 hours of continuous footage depending on scene motion and bit rate settings.

Q: Is the ECI-T28F2 suitable for freezing temperatures and high heat?

A: Yes. The camera is rated for outdoor operation across a wide temperature range. Verify the exact operating temperature specification in the datasheet for your region's seasonal extremes, but outdoor turret construction handles both freeze/thaw cycles and high-ambient-temperature environments.
