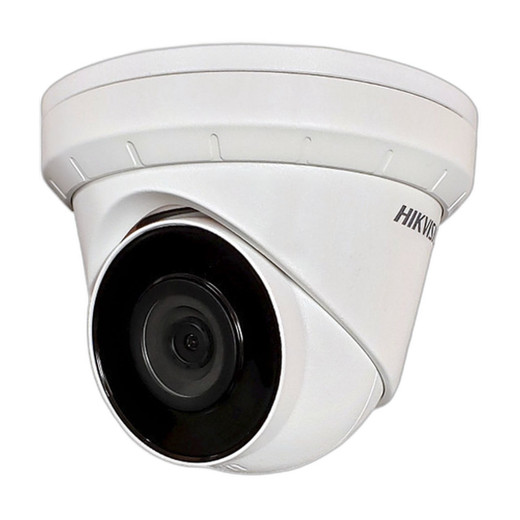

Hikvision ECI-T24F4 4MP Outdoor Turret IP Camera

Hikvision ECI-T24F4 4MP Outdoor Turret IP Camera

The Hikvision ECI-T24F4 is a fixed 4MP outdoor turret designed for perimeter and entry-point surveillance in environments where weather and dust exposure demand rugged construction. Built on a 1/3" CMOS sensor with 2560 × 1440 resolution, it delivers 20 fps at full resolution—enough clarity to identify faces and vehicles at distance without excessive bandwidth drain. The turret form factor minimizes blind spots during wall or corner installations, and the compact footprint (110 mm diameter × 85.3 mm height) fits tight mounting spaces that larger housings cannot.

Key Features

• 4MP resolution (2560 × 1440) at 20 fps: Provides detailed imagery for identification tasks; 25–30 fps available at lower resolutions (1920 × 1080, 1280 × 720) if your NVR or VMS prefers higher frame rates for motion-heavy scenes.
• EXIR technology with 30-meter IR range: Illuminates subjects without visible light spillover—critical for covert monitoring and reducing light pollution in industrial yards or residential perimeters. 0 Lux (black & white with IR) ensures round-the-clock coverage in complete darkness.
• 120 dB Wide Dynamic Range (WDR): Balances exposure when the sun strikes a loading dock while a shadowed warehouse interior remains visible in the same frame. Prevents washout and shadow crush common in scenes with mixed outdoor and indoor lighting.
• Smart supplement lighting: Adapts to ambient conditions—adds subtle fill light when infrared alone would leave faces underexposed, without blinding approaching vehicles. Useful for entry gates and toll booths where driver cooperation matters.
• IP67 weatherproof rating: Withstands rain, dust, and minor submersion (up to 1 meter for 30 minutes). Skip this model only if you need prolonged submersion or active wash-down; for standard outdoor mounted installations, IP67 is sufficient.
• H.265/H.264/H.265+/H.264+ codec support: H.265+ cuts storage footprint 40–60% versus H.264 on modern NVRs—meaningful when recording 24/7 across 8+ cameras. Fallback to H.264 for older recorders or VMS systems that lack H.265 decoding.
• PoE (802.3af, Class 3) with 12 VDC fallback: Draws under 13W, so it won't starve power budgets on budget PoE switches. Optional 12 VDC input lets you pair it with local power if PoE distance exceeds IEEE limits (100 meters on Cat5e/Cat6).
• MicroSD card slot (up to 256 GB): Provides 48–72 hours of onboard backup at H.265+ main stream rates—hedge against network outages or NVR downtime without adding cost.
• Fixed lens options (2.8 mm or 4 mm): 2.8 mm delivers 98° horizontal FOV (wider entrance coverage, more context); 4 mm narrows to 78.7° FOV (tighter detail, longer throw distance). Choose 2.8 mm for parking lots and driveways; 4 mm for gates and corridors where subject detail outweighs breadth.
• Motion detection, tampering alerts, and exception reporting: Built-in triggers reduce false positives by filtering wind-blown debris or lighting flicker. Flagged events integrate with mobile alerts via Hik-Connect or third-party ONVIF clients.
• ONVIF compliance and multi-client support: Works with Hikvision IP cameras in mixed vendor environments via ONVIF Profile S/T. iVMS-4200 (proprietary Hikvision VMS) and Hik-Connect (cloud/mobile) included; browser-based access via Chrome 57.0+ or Firefox 52.0+ without plug-ins.

Integration and Deployment Context

The ECI-T24F4 integrates into any network video recorder or VMS platform that supports ONVIF or RTSP. Pair it with a PoE switch rated for at least 95W to accommodate 8–10 cameras; check your switch's power budget before deployment. The 10M/100M self-adaptive RJ45 port negotiates speed automatically, so older infrastructure (100 Mbps Ethernet) won't bottleneck it, though latency may increase at full H.265 bitrates over heavily congested networks.

Environmental operating range spans −30 °C to 60 °C, making it suitable for northern warehouses and southern parking structures. At 95% humidity (non-condensing), the IP67 seal blocks moisture ingress; however, extended coastal salt-air exposure may degrade external fasteners over 3–5 years—consider stainless hardware upgrades for marine-adjacent sites.

When to Choose a Different Model

The ECI-T24F4's fixed turret design excels where mounting angles are fixed and pan/tilt movement is unnecessary. If you require active pan-tilt-zoom capability or need to track objects across wider areas, consider a motorized PTZ variant in the Hikvision family. For indoor applications with controlled lighting, a lower-cost 2MP fixed dome may provide adequate coverage at half the price. If your scene requires extreme low-light performance without infrared (covert monitoring), explore thermal or Lightfinder-equipped models.

What's in the Box

The package includes the ECI-T24F4 turret camera body, mounting bracket, RJ-45 weatherproof connector, and installation documentation. Your integrator will supply the network cable, PoE injector or switch, and any pole or wall mounts specific to your site topology.

Frequently Asked Questions

Q: Can the ECI-T24F4 operate in sub-zero climates?

A: Yes. The operating range extends to −30 °C (−22 °F). At these temperatures, the IR LEDs remain active, though infrared range may shorten slightly due to atmospheric attenuation. No additional heater or defroster is built in, so frost or ice on the lens will degrade image quality—plan for periodic manual cleaning or, in high-snowfall regions, choose a heated enclosure accessory.

Q: Is the ECI-T24F4 NDAA Section 889 compliant?

A: Hikvision products are subject to U.S. federal restrictions under Section 889 of the NDAA and may be prohibited for federal procurement and certain critical infrastructure projects. Verify your contracting requirements and consult your legal or procurement team before deployment in government or defense contexts.

Q: What is the maximum recommended cable run from PoE switch to camera?

A: IEEE 802.3af supports up to 100 meters (328 feet) of Cat5e or better. Beyond that distance, voltage drop will reduce power available to the camera. If your run exceeds 100 meters, use a PoE+ (802.3at) source or a powered midspan injector closer to the camera.

Q: Does the microSD card slot support hot-swap recording?

A: Yes. The ECI-T24F4 supports continuous local recording to microSD without stopping the live stream. If the NVR or network becomes unavailable, onboard recording continues; when connectivity is restored, Automatic Network Replenishment (ANR) pushes buffered video to the recorder. Useful for transient network hiccups or temporary PoE power loss.

Q: Can I integrate the ECI-T24F4 with Milestone XProtect or Genetec Security Center?

A: The ECI-T24F4 complies with ONVIF Profile S/T, enabling integration with most third-party VMS platforms including Milestone, Genetec, and others that support ONVIF. Use the camera's IP address and credentials to add it as a network source. Some advanced Hikvision-specific features (e.g., deep learning analytics) may not be available in non-Hikvision VMS; confirm feature parity with your platform before large-scale deployment.

Q: What is the typical power consumption during night operation with IR enabled?

A: The ECI-T24F4 (often searched as ECI T24F4) draws up to 13W maximum when IR is fully active and image processing is at peak load. This fits comfortably within 802.3af PoE allocations (15.4W per port) with 2W headroom for cabling loss. In daylight with IR off, consumption drops to 8–10W.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ECI-T24F4 is a sensible middle ground—4MP clarity without PTZ complexity or the power budget hit of motorized models. Its 30-meter IR and 120 dB WDR handle mixed day/night outdoor scenes that trip up cheaper alternatives, while H.265+ codec support cuts your storage footprint in half compared to legacy H.264 systems. If your site has fixed sight lines (loading docks, parking perimeters, entry gates), this turret will outperform dome cameras at lower cost and deliver better detail than 2MP budget models.

Technical Highlights:

• H.265+ codec: 40–60% storage reduction versus H.264—on a 24/7 eight-camera system over 30 days, that's 1–2 TB saved. Real money on archival.
• 802.3af PoE, under 13W draw: One standard PoE switch powers 6–8 of these without dedicated power supplies. Simplifies cabling in new deployments.
• MicroSD up to 256 GB: 2–3 days of H.265+ main-stream backup onboard. ANR ensures no footage loss if the NVR goes dark for hours.
• 0 Lux IR + 120 dB WDR: Handles the warehouse scenario where sunlight floods one dock door while interior aisles sit in shadow. Most 2MP turrets struggle here.

Deployment Considerations:

• Fixed lens means planning the pole height and angle before installation—no field zoom adjustment. Measure twice, order the right focal length once.
• IR effectiveness drops in snow, dust, and smoke. If your site has frequent fog or heavy particulate, infrared range shrinks to 15–20 meters in real conditions, not the spec sheet 30.
• The compact turret design leaves minimal service clearance for cleaning the lens. Budget 10 minutes per site visit to wipe the optic; otherwise, condensation and pollen degrade night vision quickly.

Pick the ECI-T24F4 for warehouse perimeters, car park entry points, and fixed-angle outdoor gateways where detail and 24/7 coverage matter more than tracking speed. It's pragmatic, not flashy—and that's the point.
