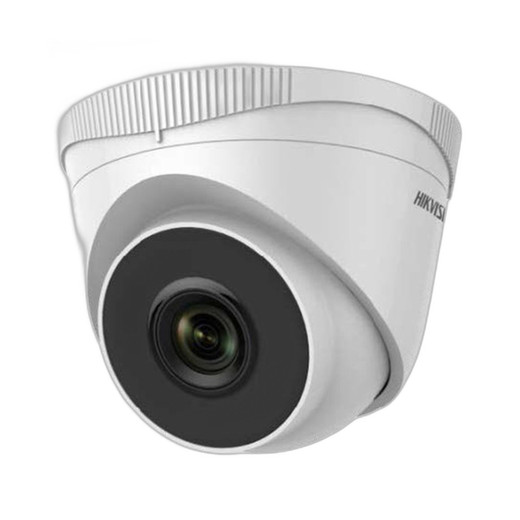

Hikvision ECI-T22F2 2MP Outdoor EXIR Turret IP Camera

Hikvision ECI-T22F2 2MP Outdoor EXIR Turret IP Camera

The Hikvision ECI-T22F2 is a compact turret-form outdoor surveillance camera built for reliable 24/7 monitoring in challenging environmental conditions. Built on a 1/2.7" progressive scan CMOS sensor, this camera delivers 1920 × 1080 (2MP) resolution at 30 fps with a fixed 2.8mm lens that produces a wide 112.1° horizontal field of view. This breadth of coverage reduces the need for multiple cameras across building perimeters, parking lots, and industrial yards, lowering both hardware and cabling costs.

Key Features

• 2MP resolution at 30 fps: Sharp detail capture at 1920 × 1080 with smooth motion playback, sufficient for identification and event verification in most outdoor surveillance scenarios.
• Fixed 2.8mm lens with 112.1° FOV: Wide-angle coverage without motorized optics reduces mechanical complexity, power draw, and maintenance headaches — a meaningful advantage for large-scale outdoor deployments where simplicity matters.
• EXIR technology with 30m IR range: Smart 850nm infrared illumination extends night visibility to 30 meters while automatically adjusting intensity based on scene content. This adaptive approach conserves LED lifespan and reduces power consumption compared to static IR flooding.
• 0.01 Lux color / 0 Lux B/W with IR: Exceptional low-light sensitivity means usable color video persists well into dusk without switching to grayscale — valuable for license-plate recognition and facial context capture in twilight hours.
• H.265+ and H.264+ compression: Modern codec efficiency cuts bitrate 40–60% versus standard H.264 without visible quality loss. On 24/7 multi-camera systems, this directly reduces storage hardware and bandwidth licensing costs.
• IP67 weatherproof rating: Dust and water ingress protection with no additional housing required. This rating survives direct spray and submersion, making the ECI-T22F2 suitable for coastal, high-humidity, and heavy-rain climates.
• PoE powered (802.3af Class 3): Maximum draw of 6.5W via standard PoE means this camera won't strain a typical switch power budget. Single-cable installation eliminates separate power supplies and conduit runs — a labor and material win on new builds.
• Pan/Tilt/Rotate adjustment: 360° pan, 75° tilt, and 360° rotation allow post-installation aiming without removing the camera body. Useful for fine-tuning coverage after mounting.
• MicroSD slot up to 256GB: On-camera backup storage provides a safety net for network outages. 256GB at H.265+ quality can hold 3–7 days of continuous recording depending on scene complexity.
• Digital WDR and 3D DNR: Wide dynamic range processing handles bright skies and shadowed ground simultaneously. Noise reduction smooths low-light footage without over-blurring motion, critical for forensic clarity.
• Built-in microphone with environmental noise filtering: Audio capture with active noise suppression, useful for alarm triggers tied to sound events or for two-way communication during incident response.
• Operating range -30°C to 60°C: Temperature tolerance spans arctic cold to desert heat without performance degradation, eliminating the need for climate-controlled enclosures in extreme climates.

Integration & Compatibility

Connectivity options include Gigabit Ethernet (10M/100M auto-adaptive) with RTSP, RTCP, HTTP/HTTPS, DDNS, and NTP protocol support. Dual-stream architecture allows simultaneous high-quality main stream (H.265/H.264) and low-bitrate sub-stream (MJPEG) transmission — a standard practice for bandwidth-constrained networks and large NVR deployments. The camera supports up to 6 simultaneous live view channels via iVMS-4200 or Hik-Connect clients, enabling multi-user access without bottlenecks. ONVIF compliance ensures interoperability with third-party VMS platforms, reducing vendor lock-in risk.

When to Choose a Different Model

The ECI-T22F2's fixed lens and 2MP sensor are optimized for wide-angle coverage at close range. If you need narrow-field monitoring at distance (e.g., 200+ meters) or pan/tilt/zoom capability, consider a higher-megapixel varifocal turret or PTZ variant from the Hikvision outdoor line. Similarly, if you require on-camera analytics (person detection, vehicle classification, or loitering alerts), verify that your target VMS platform supports event subscription via ONVIF or Hikvision-proprietary APIs; the ECI-T22F2 itself does not embed deep-learning analytics.

Frequently Asked Questions

Q: What is the maximum IR illumination range on the ECI-T22F2?

A: The EXIR technology extends IR visibility to 30 meters (approximately 98 feet) in complete darkness. The actual range depends on target reflectivity and ambient light, but 30 meters is the rated specification for typical outdoor reflective surfaces.

Q: Can the ECI-T22F2 be used indoors?

A: Yes. While engineered for outdoor deployment, the camera functions indoors where 24/7 monitoring, low-light conditions, or environmental robustness is desired. However, the compact turret form and wide FOV are optimized for outdoor perimeter work rather than hallway or interior room coverage.

Q: Does the ECI-T22F2 require a separate power supply?

A: No. The camera draws 6.5W maximum via standard IEEE 802.3af PoE, supplied through the Ethernet cable. No separate power injector or UPS conditioning is needed for typical installations.

Q: What video compression formats are supported on the ECI-T22F2?

A: The main stream supports H.265, H.264, H.265+, and H.264+ codecs. The sub-stream supports MJPEG. Video bitrate ranges from 32 Kbps to 8 Mbps, enabling trade-offs between quality and bandwidth depending on your network constraints.

Q: Is microSD card storage mandatory, or is it optional?

A: Storage is optional. The microSD slot is a convenience feature for edge recording and failover during network outages. Many deployments rely entirely on NVR or cloud storage and do not use the on-camera slot.

Q: Can the ECI-T22F2 survive heavy rain and freezing temperatures?

A: Yes. The IP67 rating guarantees dust and water ingress protection, and the -30°C to 60°C operating range covers most outdoor climates. In extreme conditions (tropical monsoon, salt-spray coastal zones), ensure cable entry seals and connector covers are properly installed and maintained.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ECI-T22F2 (often searched as ECI T22F2) balances performance and cost-effectiveness for small-to-medium outdoor surveillance deployments where simplicity and low power draw matter. The fixed 2.8mm lens and 112.1° horizontal FOV eliminate the mechanical wear and power overhead of motorized zoom optics while delivering expansive coverage — a pragmatic trade-off for facilities managers looking to reduce moving-parts failures and energy consumption.

Technical Highlights:

• H.265+ compression: Reduces bitrate 40–60% versus standard H.264 without sacrificing quality. On multi-camera outdoor deployments with 24/7 recording, this compression cuts storage hardware costs and NVR licensing significantly.
• Adaptive EXIR illumination: Smart 850nm IR adjusts intensity based on scene content rather than flooding at static power. This extends IR LED lifespan and conserves the 6.5W power budget, especially critical on PoE switches with constrained power budgets.
• IP67 rating and -30°C to 60°C operating range: Withstands direct spray, submersion, dust, and temperature swings without climate-controlled enclosures. Essential for coastal, high-humidity, and arctic climates where outdoor hardening is non-negotiable.
• Dual-stream architecture (H.265+ main + MJPEG sub): Main stream delivers quality for forensic review and analytics; sub-stream handles bandwidth-constrained remote monitoring and alarm thumbnails. Standard design pattern that scales cleanly across 50+ camera deployments.

Deployment Considerations:

• The 6.5W maximum draw is miserly for PoE — verify your switch can deliver 95W across all ports if you're daisy-chaining multiple cameras. Most managed switches handle this easily, but budget PoE injectors sometimes choke.
• Fixed 2.8mm lens locks you into a 112° view angle. If perimeter coverage requires narrow-field or zoom capability, the ECI-T22F2 is the wrong choice — step up to a varifocal or PTZ variant in the same family.
• MicroSD backup is optional but highly recommended in warehouse or industrial environments where network outages are routine. A 256GB card at H.265+ quality holds 3–7 days of edge recording, bridging the gap until NVR sync resumes.

Best suited for parking lots, building perimeters, industrial fence lines, and retail entrance monitoring where wide coverage, harsh weather exposure, and 24/7 operation are standard. The compact turret form factors neatly into ceiling and soffit mounts without the visual profile of a bullet or box camera.
