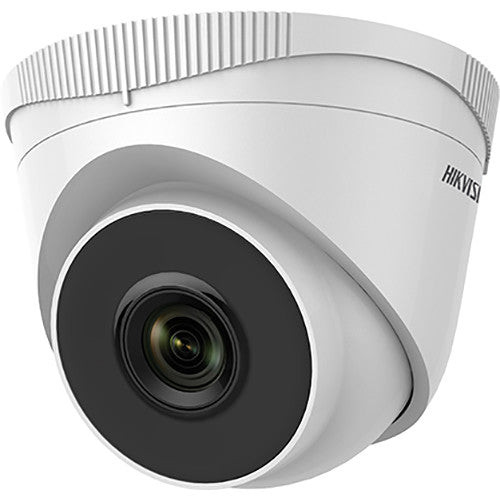

Hikvision ECI-T22F4 2MP Outdoor EXIR Turret Camera

Hikvision ECI-T22F4 2MP Outdoor EXIR Turret Camera

The Hikvision ECI-T22F4 is a 2MP turret-style outdoor surveillance camera built for weather-resistant deployments where reliability and straightforward integration matter more than ultra-high resolution. The 1/2.7" progressive scan CMOS sensor delivers full 1920×1080 resolution at 30 fps, sufficient for facial recognition at entry points and readable license plates at 10–15 feet. Dual fixed-lens options (2.8mm or 4mm) provide flexibility: the 2.8mm yields a wider 112.1° horizontal field of view for perimeter coverage, while the 4mm narrows the angle to 90.2° for focused entrance monitoring. The metal turret housing meets IP67 certification, meaning rain, dust, and direct spray won't compromise the camera—though prolonged submersion is not rated.

Key Features

• EXIR 2.0 Night Vision (30m range): Smart infrared illumination automatically adjusts power based on ambient light, extending usable night coverage to 30 meters while reducing false color blooming in mixed lighting. This matters on mixed-use sites where automatic IR can wash out color detail in twilight.
• Motorized Pan/Tilt/Rotate: 360° endless pan, 75° tilt, and 360° rotate allow remote angle adjustment from the VMS—avoid climbing a ladder to tweak camera aim after installation. Useful for monitoring large parking lots or building facades from a single mount point.
• H.265+ Codec Support: H.265+ compression cuts storage bandwidth roughly 40–50% versus H.264 on similar scenes. On a 24-camera deployment, that difference compounds significantly across retention periods and NVR capacity planning.
• Digital WDR and 3D Noise Reduction: Wide Dynamic Range balances bright outdoor glare (noon sunlight on glass) against shadow detail (vehicle undercarriage or building alcoves). 3D noise reduction preserves edge clarity in low light without smearing motion.
• PoE Power (802.3af Class 3): Draws under 13W over a single Ethernet cable—won't strain a standard PoE switch and eliminates separate power supply runs to outdoor locations. Dual-power option (optional 12 VDC) provides failover in high-latency or long-run installations.
• MicroSD Local Backup (up to 256GB): On-board recording provides failsafe if network connectivity drops. Useful on intermittent wireless backhaul or cellular uplinks where NVR connectivity is unreliable.
• Audio with Multiple Codecs: Built-in microphone and audio support (multiple codec options) enable two-way intercom at entry gates or warehouse areas—less useful for pure surveillance but valuable for access-controlled zones.
• Motion Detection and Event Triggers: Configurable motion zones, video tampering alarms, and event-based recording reduce storage bloat by capturing only segments of interest rather than continuous 24/7 feed.

Connectivity and Integration

Single 10M/100M RJ45 Ethernet port handles TCP/IP, RTSP, HTTPS, and standard protocols. Supports up to 32 simultaneous users across three permission levels (administrator, operator, user) and up to 6 channels of simultaneous live view. ONVIF and Hikvision ISAPI compatibility allow integration with third-party VMS platforms—test with your chosen system before bulk deployment to confirm API stability. The ECI-T22F4 pairs well with network video recorders and PoE switches sized for sustained 24/7 recording loads.

Environmental Specifications

Operating temperature spans -30°C to 60°C (-22°F to 140°F) with 95% non-condensing humidity tolerance. IP67 rating ensures dust ingress protection and water jets from any direction—suitable for rain, coastal spray, and high-pressure wash environments. Minimum illumination reaches 0.01 Lux in color mode and 0 Lux with IR enabled, with SNR ≥52 dB for clean low-light imaging. Consider placement on north-facing walls (avoiding direct midday sun) and ensure gutter or overhang protection if mounting under heavy seasonal rainfall.

When to Choose a Different Model

If your deployment requires continuous day/night operation on large perimeters (industrial parks, multi-building campuses) where pan/tilt overhead is unacceptable, consider a fixed higher-resolution variant in the Hikvision outdoor camera family. If motion analytics (people/vehicle detection with AI deep learning) are critical, the ECI-T22F4 lacks on-board AI processing—you'll need a separate analytics NVR or external edge processor. For indoor turret installations, the weatherproofing adds cost without benefit; a standard indoor turret model will be more cost-effective.

Frequently Asked Questions

Q: What's the maximum IR range on the ECI-T22F4?

A: The EXIR 2.0 infrared system extends coverage to 30 meters (approximately 98 feet). Smart supplemental lighting automatically adjusts intensity based on ambient conditions, so nighttime images remain usable without excessive glare.

Q: Can I use the ECI-T22F4 with a standard PoE switch?

A: Yes. The camera draws under 13W at maximum power, well within the IEEE 802.3af Class 3 specification (up to 15.4W). A standard PoE switch will supply it without issue over standard Cat5e or Cat6 cabling.

Q: Does the ECI-T22F4 support H.265 compression?

A: Yes. The camera supports H.265+, H.265, H.264+, H.264, and MJPEG. H.265+ is recommended for bandwidth-constrained links; H.264 provides broader third-party compatibility if your VMS vendor is slow to adopt newer codecs.

Q: What lens option should I choose—2.8mm or 4mm?

A: The 2.8mm (112.1° FOV) covers wider area; use it for general perimeter sweeps and parking lot overviews. The 4mm (90.2° FOV) narrows the view for focused entrance monitoring or zones where you need better facial detail at moderate distances. Lens choice is typically fixed at purchase, so verify your coverage map before ordering.

Q: Is the ECI-T22F4 suitable for coastal or high-humidity environments?

A: The IP67 metal housing and 95% non-condensing humidity tolerance handle salt spray and moisture well, but corrosive environments (heavy industrial chemical atmosphere) may require additional protective coatings. Verify compatibility with your environmental assessment team before deployment.

Q: Can the ECI-T22F4 record locally if the network goes down?

A: Yes. The camera supports microSD card storage up to 256GB for on-board backup recording, protecting footage during network outages or uplink latency events.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ECI-T22F4 occupies solid middle ground for outdoor surveillance where cost-per-camera and operational simplicity are competitive pressures. It's not a flagship—2MP is modest compared to 4MP or 5MP alternatives—but the motorized pan/tilt mechanism and 30-meter EXIR coverage give you flexibility without premium pricing. The combination of H.265+ codec support and microSD backup recording makes this camera resilient across a range of network conditions and NVR retention scenarios.

Technical Highlights:

• EXIR 2.0 (30m): Smart IR adjustment prevents overexposure in twilight or mixed-lighting zones. On campuses and parking structures where dusk and dawn monitoring matter, this beats fixed-intensity IR.
• Motorized PTZ (360° pan, 75° tilt, 360° rotate): Remote angle adjustment during commissioning and after installation saves labor—you're not repositioning brackets or remounting hardware mid-deployment. Valuable on large perimeters where initial coverage estimates inevitably need tweaking.
• H.265+ Compression: On a 24-camera 72-hour retention deployment, H.265+ vs H.264 reduces storage demand by roughly 50%, directly lowering NVR capacity or extending retention without hardware upgrades.
• IP67 + -30°C to 60°C Operating Range: Metal housing stands up to freeze-thaw cycles and direct sunlight without thermal stress. PoE simplicity eliminates separate outdoor power distribution, reducing conduit and labor costs.

Deployment Considerations:

• 2MP resolution is acceptable for perimeter overview and license plate capture at 10–15 feet, but not suitable for facial recognition in crowded retail environments. Confirm field-of-view and distance requirements before committing to the 2.8mm vs 4mm lens choice—lens is fixed at purchase.
• Motorized pan/tilt introduces complexity in failover scenarios. If motor control loses network connection or power, the camera defaults to a fixed angle. Test your redundancy design (dual uplinks, backup power) before large-scale rollout.
• MicroSD backup is useful for intermittent connectivity, but relying on edge storage for critical evidence is risky. Pair it with scheduled NVR polling or continuous low-bandwidth heartbeat recording to central storage.

Best deployment fit: mid-sized warehouse or logistics facility perimeters, multi-building campuses with mixed lighting and weather, retail parking lots, and light industrial sites where durability and cost-per-unit are the driving factors and continuous 4K capture is not a requirement.
