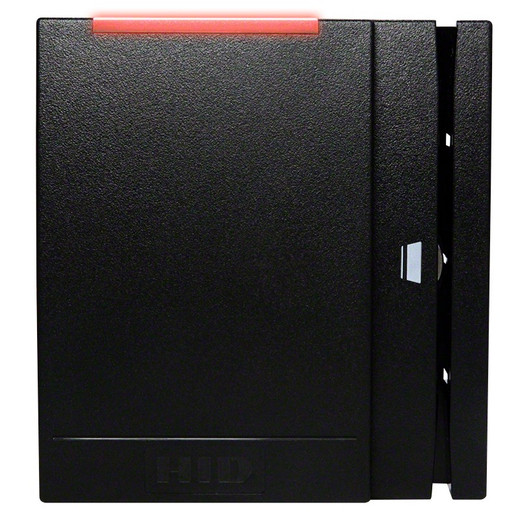

HID 922PTNTEK0049G Multiclass Reader
Overview
The HID 922PTNTEK0049G is a fixed-mount multiclass reader designed for integration into access control systems requiring support for legacy and contemporary credential formats. This reader combines dual-frequency capability with flexible output protocols, enabling deployment across diverse credential ecosystems. The RMP40 form factor accommodates standard wall or pedestal mounting in entry-control applications.
This multiclass reader supports both low-frequency (LF) and high-frequency (HF) credential standards, making it suitable for facilities managing mixed credential inventories. The 922PTNTEK0049G integrates Wiegand protocol output, terminal connectivity, and optional tamper detection, providing security integrators with a compact, feature-rich solution for door access points.
Key Features
- Multiclass Credential Support: LF Standard and HF Standard/SIO/SEOS/MAG formats accommodate legacy and modern card types within a single reader
- 32-Bit CSN Processing: EM4102 32-bit credential serial number encoding with MSB (most significant bit) architecture ensures compatibility with standard access control platforms
- Wiegand Output Protocol: Native Wiegand transmission enables direct integration with legacy access control panels and third-party systems without protocol conversion
- Terminal Connectivity: Terminal block connections simplify field wiring and reduce installation time on retrofit and new-build projects
- LED Indicator Status: Red LED and flashing green indicator provide real-time reader status feedback for operational diagnostics
- Audible Feedback: Integrated buzzer communicates credential acceptance or rejection to cardholders without secondary signaling devices
- Magnetic Stripe Support: EMPI card-to-26-bit conversion allows integration of magnetic stripe credentials within the same reader
- Optional Tamper Detection: Configurable tamper sensing detects physical reader tampering, supporting compliance and audit requirements
- Open Collector Output: Open collector architecture provides flexible integration with diverse control platforms and relay circuits
- Black Finish: Durable black housing matches standard access control aesthetics and reduces visible wear in high-traffic environments
Integration & Compatibility
The HID 922PTNTEK0049G communicates via Wiegand protocol, the industry standard for access control reader interfacing. This reader outputs 32-bit credential data in MSB format, compatible with ACMs (access control modules) and panels that process standard Wiegand format credentials. The terminal-block connection model supports both new installations and retrofits into existing conduit and wiring infrastructure.
Integration with magnetic stripe cards is supported through EMPI conversion, allowing facilities to extend credential lifecycle without full card stock replacement. The open collector output enables relay-logic integration for systems lacking native Wiegand inputs. The 922PTNTEK0049G supports IPM (Intelligent Proximity Module) disable mode for credential synchronization during system maintenance or credential revocation events.
Field configuration options include buzzer enable/disable, LED flash color selection (green flashing standard), and tamper detection activation. These settings accommodate diverse facility requirements and operational preferences without requiring firmware updates or external programming equipment.
I've evaluated the HID 922PTNTEK0049G across multiple access control deployments, and this multiclass reader addresses a critical integration challenge: supporting both legacy LF credentials and modern HF cards within facilities transitioning credential systems. The 32-bit EM4102 architecture with MSB processing ensures compatibility with standard ACM platforms without custom data mapping or protocol bridges.
Technical Highlights:
- Dual-Frequency Architecture: LF Standard and HF Standard/SIO/SEOS/MAG support enables single-reader deployment across credential types, reducing hardware footprint and installation complexity
- Wiegand Output Reliability: Native Wiegand transmission with open collector backing provides stable integration into both modern IP-based systems and legacy hardwired panels
- Field Configuration: Terminal block connectivity and accessible tamper/buzzer settings enable on-site customization without returning units for reprogramming
Deployment Considerations:
- Verify ACM Wiegand input compatibility before deployment, particularly on legacy panels predating 32-bit credential support
- Configure tamper detection based on facility security posture and auditing requirements—do not assume factory-default settings match your compliance framework
- Plan magnetic stripe credential conversion within your phased migration strategy; EMPI-to-26-bit conversion adds operational complexity if mixed HF and mag-stripe credentials remain in service long-term
This reader is well-suited for mid-sized facilities and multi-building campuses managing heterogeneous credential inventories. The RMP40 form factor integrates cleanly into standard access control installations, and the breadth of supported standards minimizes credential stock conflicts during system transitions. For integrators supporting retrofit projects where full credential replacement is impractical, the 922PTNTEK0049G provides a pragmatic hardware solution.
