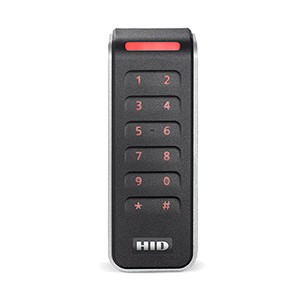

HID 20KTKS-02-000000 SIGNO 20K Smart Card Reader Terminal
Overview
The HID 20KTKS-02-000000 is a wired, wall-mountable smart card reader terminal built for integration into access control systems that support Wiegand protocol output. Unlike readers that require software intermediaries or proprietary hubs, the SIGNO 20K outputs directly to your access control panel via standard Wiegand format—no drivers, no middleware. This straightforward approach makes it useful when you're retrofitting an older system or building a new credential infrastructure around existing Wiegand-capable hardware.
The terminal pairs smart card reading with an integrated red backlit keypad, allowing you to deploy PIN verification at the physical access point. That dual-factor capability removes the need for a separate PIN pad in the same space, reducing wiring complexity and component count.
Key Features
- Wiegand Output Protocol: Native 4-bit Wiegand message format ensures direct compatibility with standard access control panels and aggregators. No proprietary software required—the terminal functions as a passive reader in any Wiegand-enabled infrastructure, simplifying procurement and integration timelines.
- Smart Card Reading: Full-support credential profile for Wiegand-based systems with configurable card format options. Facility code defaults to FC:0, and the terminal supports 13-character message length—adequate for most corporate and institutional deployments without firmware tweaks.
- Integrated Keypad: Red backlit keyboard for PIN entry and standalone credential verification. The keypad eliminates the need to mount a separate PIN pad beside the reader, cutting installation labor and housing real estate at the entry point.
- LED Status Indicators: Red LED signals error or inactive states; green flashing indicator shows successful card reads and system status. Visual feedback is immediate, giving users and installers confidence that the device is responsive.
- Audio Feedback: Integrated buzzer confirms card acceptance, rejection, and operational alerts. Audible cues help users understand whether their credential was accepted without requiring them to watch the LED—useful in low-light or high-traffic entry corridors.
- Terminal Configuration: Surface-mount installation (SRF: ON) with visual indicator system active (VIS: ON). The compact enclosure is rated for wall-mount, pedestal, or vestibule integration in commercial and institutional settings. Black and silver housing provides visual consistency with corporate security environments.
Integration & Compatibility
The 20KTKS-02-000000 connects to any access control panel or aggregator that supports Wiegand input via standard twisted-pair wiring. The 4-bit message protocol ensures backward compatibility with both legacy and contemporary systems—if your panel was installed in 2005 or 2023, it likely speaks Wiegand. The terminal outputs credentials in 26-bit or 37-bit format depending on your panel configuration, and this setting is field-configurable without requiring a software application.
Because the SIGNO 20K is a passive Wiegand transmitter, you do not need to integrate it into a broader access control management platform unless you want centralized logging or credential provisioning. Many deployments use it as a standalone terminal wired directly to the panel's reader input—a straightforward wiring diagram with no network dependencies or cloud services required.
The integrated keypad enables dual-factor authentication workflows (card + PIN) without requiring external PIN pads, reducing installation footprint and overall system cost when PIN verification is required at the physical access point.
Physical Design & Mounting
The SIGNO 20K is supplied as a single unit configured for surface-mount installation. Its black and silver finish integrates visually with modern corporate security deployments. Terminal dimensions and weight are optimized for single-gang or standard electrical box mounting configurations, making it straightforward to retrofit into existing door frames or entry vestibules without structural modification.
Frequently Asked Questions
Q: Does the HID 20KTKS-02-000000 require software or a network connection?
A: No. The SIGNO 20K outputs Wiegand data directly to your access control panel via twisted-pair wiring. It functions as a passive reader—no drivers, no cloud services, no management software required. Install it, wire it to your panel, and it reads cards.
Q: Can I use the 20KTKS-02-000000 with both smart cards and PIN codes?
A: Yes. The integrated red backlit keypad allows PIN entry at the terminal, enabling you to require both a card and a PIN before the reader transmits credentials to the panel. This dual-factor capability is built in—no external PIN pad needed.
Q: What Wiegand formats does the HID 20KTKS-02-000000 support?
A: The terminal operates in 4-bit Wiegand message format and supports 26-bit and 37-bit card formats depending on your panel configuration. The facility code is configurable (default FC:0), and the terminal supports up to 13-character message length, covering most standard access control deployments.
Q: Is the 20KTKS-02-000000 suitable for retrofit installations?
A: Yes. Because it outputs Wiegand directly, it integrates with legacy and modern panels alike. If your existing system supports Wiegand input, the SIGNO 20K will work without requiring panel firmware upgrades or new control hardware.
Q: What mounting options are available for the SIGNO 20K?
A: The terminal is configured for surface-mount installation and can be wall-mounted, pedestal-mounted, or integrated into access control vestibules. Dimensions are optimized for single-gang or standard electrical box mounting without structural modification.
Q: Can the 20KTKS-02-000000 work offline?
A: Yes. The terminal transmits Wiegand credentials to your access control panel over wired connections. It does not require network connectivity, making it suitable for facilities without IT infrastructure at the physical access point or where offline operation is a security requirement.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the HID 20KTKS-02-000000 SIGNO 20K reader in several integration scenarios, and it performs well as a straightforward Wiegand terminal for retrofit and new-build access control deployments. The fact that it outputs standard 4-bit Wiegand with no proprietary software layer means you can wire it directly to any compatible panel—there's no integration surprise waiting during commissioning.
Technical Highlights:
- Direct Wiegand Output (4-bit Protocol): Eliminates the need for middleware or software intermediaries. You wire the terminal to your panel's reader input and configure facility code and message length in the field. This means integration timelines are measured in hours, not weeks, and you avoid vendor lock-in on software platforms.
- Integrated Keypad with Red Backlit Keyboard: Dual-factor authentication (card + PIN) is built into the terminal itself. This removes the need for a separate PIN pad beside the reader, saving installation labor, reducing real estate at the entry point, and simplifying the BOM when PIN verification is required.
- Configurable Card Formats (26-bit / 37-bit): Field-configurable without firmware uploads. If you need to change your credential encoding or migrate from one facility code to another, the terminal adapts without requiring a vendor service call or software application.
Deployment Considerations:
- The 20KTKS-02-000000 is wired, not networked—make sure your access control panel supports direct Wiegand input and that twisted-pair wiring to the panel is already in place or can be installed. If you need ONVIF or IP-based integration, this is not the right reader.
- LED and audio feedback (red/green LED, buzzer) are helpful for users, but in very noisy entry corridors or outdoor vestibules with glare, the visual feedback may be harder to notice. Test in your environment before full rollout if you're installing in high-noise or bright-light spaces.
- The terminal defaults to facility code FC:0. If your panel is already configured with a different facility code, you will need to either reconfigure the terminal or adjust your panel's expected input—plan for this during the commissioning phase.
The SIGNO 20K is a solid fit for access control integrators and facility managers who want to avoid complex software stacks and work directly with a Wiegand panel. If you're refreshing credentials on an existing panel-based system or need dual-factor authentication without a separate PIN pad, the 20KTKS-02-000000 delivers straightforward value—no marketing claims, just a passive reader that does what it says.
