Overview

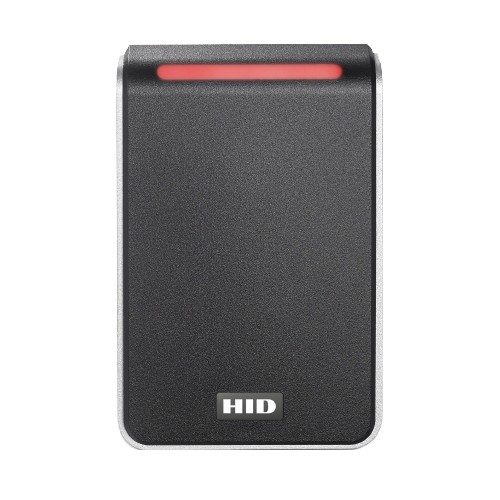

The HID 40KNKS-00-000000 is a fixed-mount proximity reader engineered for standard card-format access control installations. This black and silver unit communicates via Wiegand protocol, making it suitable for both legacy systems and modern hybrid access control architectures. The reader arrives pre-formatted to ASP10022 standard with facility code set to 0, which reduces on-site configuration time and lowers deployment labor on retrofit and new construction projects. Maryland-ready certification ensures compliance with regional regulatory requirements for commercial installations.

Key Features

• 32-Bit EM Encoding: Native electromagnetic 32-bit encoding ensures broad credential compatibility across enterprise environments—you won't need to track multiple card stock types or perform format conversions during deployment.
• Wiegand 32-Bit MSB Output: Delivers most-significant-bit-first data transmission with 4-byte message structure, compatible with standard access control readers and third-party panels supporting Wiegand input. No protocol translation needed between reader and controller.
• Pre-Formatted ASP10022: Ships configured to ASP10022 standard with facility code (FC) set to 0. This eliminates field reprogramming overhead—mount, wire, and commission without software configuration cycles.
• 13-Character Message Length (LEN:13): Extended message format supports expanded credential data payload and facility-level routing. Useful when integrating across multi-building or multi-tenant access control architectures where facility codes matter.
• Visual and Audible Feedback: Red LED indicator with green flash confirmation and buzzer alert on successful card read. Operator feedback reduces user confusion at entry points and accelerates credential verification cycles during peak traffic periods.
• Red Button Keyboard Integration: Supports manual credential or PIN entry where required. Buzzer feedback on keystroke completion ensures operators know input was registered, reducing failed authentication attempts.
• NOPAR (No Parity) Setting: Flexible card reading without strict parity validation accommodates legacy card stocks and non-standard credential formats. If your facility has a mixed inventory of older and newer cards, this setting prevents read failures due to parity mismatches.
• Velocity and IPM Disabled: Ships with velocity and IP management functions disabled at factory. This supports straightforward access control deployment without secondary software configuration overhead—you deploy the reader as-is.

Integration and Compatibility

The 40KNKS-00-000000 integrates into Wiegand-based access control systems through standard 26/34-bit message protocols. Its 32-bit MSB output format and 4-byte message structure are native to HID controllers and third-party panels supporting Wiegand input. The fixed pig-tail cordage and pre-formatted ASP10022 configuration reduce integration labor on retrofit and new construction projects.

Before deployment, verify that your access control panel supports Wiegand input and confirm card stock alignment with the reader's 32-bit EM encoding. The reader's NOPAR setting accommodates mixed card inventories, but if your system design mandates parity checking, you'll need panel-side validation logic to enforce it. Access control panels vary widely in their Wiegand input handling—test with a sample credential before rolling out across all doors.

Physical Configuration

The HID 40KNKS-00-000000 is delivered as a single unit and is dimensioned for standard door-frame or wall-mount installation. All feedback indicators—LED, flash, buzzer, and keyboard—are enabled at factory and require no modification. The reader ships without velocity or IP management functions active, supporting plug-and-read deployments in institutional and commercial environments.

Frequently Asked Questions

Q: Is the HID 40KNKS-00-000000 compatible with my existing access control panel?

A: The 40KNKS-00-000000 outputs Wiegand protocol, so it works with any panel that supports Wiegand input. However, you should verify that your panel's Wiegand input is configured to accept 32-bit MSB format with 4-byte messages. Consult your panel's documentation or contact your system integrator to confirm compatibility before deployment.

Q: Does the reader come pre-configured, or do I need to program it on-site?

A: Yes—the 40KNKS-00-000000 ships pre-formatted to ASP10022 standard with facility code set to 0. No field reprogramming is required. Mount, wire to your panel's Wiegand input, and it will begin reading cards immediately.

Q: What card stocks work with the 40KNKS-00-000000?

A: The reader supports standard proximity card credentials engineered for HID card stocks. It uses 32-bit EM encoding natively. If you have legacy card inventory or non-standard formats, the reader's NOPAR (no parity) setting will accommodate them, but verify compatibility with a sample credential before full deployment.

Q: Can I use the keyboard input for PIN entry?

A: Yes. The red button keyboard is integrated and delivers buzzer feedback on entry. This supports multi-factor credential or PIN scenarios. Confirm that your access control panel's Wiegand input logic can parse keyboard data in addition to card reads.

Q: What does "Maryland-ready" mean?

A: Maryland-ready certification ensures the reader complies with regional regulatory requirements for commercial access control installations in Maryland. If you are deploying in other jurisdictions, verify that your local code accepts this certification or contact your system integrator for any additional compliance steps.

Q: Is the HID 40KNKS-00-000000 suitable for outdoor installations?

A: The reader is designed for standard door-frame and wall-mount installations. There is no stated IP rating in the product specifications. If you need outdoor or harsh-environment mounting, consult the manufacturer or your integrator about suitable enclosures or weatherproof variants.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The HID 40KNKS-00-000000 is a straightforward proximity reader for integrators who need to deploy access control without firmware hassle. The pre-formatted ASP10022 configuration is the real time-saver here—no loader software, no panel-side format mapping, no integration troubleshooting. You mount it, wire the Wiegand output to your panel, and it reads cards. That matters when you're managing multiple door retrofits or rolling out across a multi-building campus.

Technical Highlights:

• 32-Bit MSB Output with 4-Byte Message Structure: Native to HID controllers and any third-party panel built for Wiegand input. No protocol translation overhead—your panel's Wiegand port understands the signal immediately.
• 13-Character Message Length (LEN:13): Extended payload capacity supports facility-level routing and expanded credential data. Matters when you're deploying across multi-tenant or multi-site access control architectures where facility codes drive authorization logic.
• NOPAR Setting: Flexible parity handling accommodates legacy and non-standard card stocks without read failures. Useful in mixed-inventory scenarios, but verify your panel's Wiegand input can handle variable parity if you're enforcing strict validation downstream.

Deployment Considerations:

• Verify your access control panel explicitly supports 32-bit Wiegand MSB format. Some older panels default to 26-bit; you may need a firmware update or configuration change on the panel side.
• The reader has no stated IP rating. If you're mounting near exterior doors, water ingress, or harsh environments, plan for a weatherproof enclosure or ask your integrator about sealed variants.

The 40KNKS-00-000000 is the right choice for institutional retrofits, multi-door commercial deployments, and any project where you want to minimize on-site configuration and reduce integration labor. It's not a plug-and-forget reader, but the pre-format and straightforward Wiegand output mean fewer surprises during commissioning.
