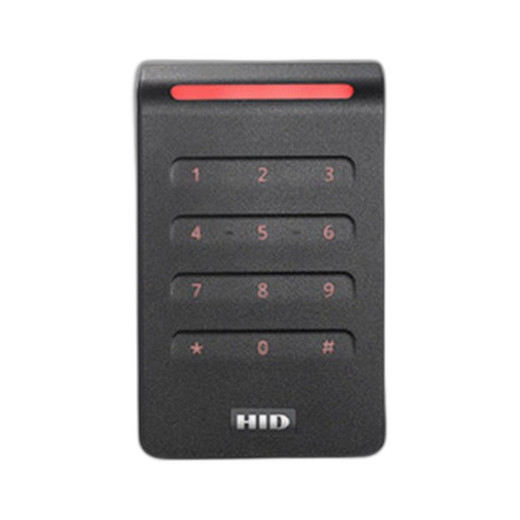

HID 40KNKS-00-00D9YX Signo 40K Access Control Terminal
Overview
The HID 40KNKS-00-00D9YX is a wired access control terminal designed for enterprise and mid-market door security deployments. Built on the Signo 40K platform, this black and silver unit integrates credential reading, keypad entry, and system feedback in a single installation. The terminal supports Open Supervised Device Protocol (OSDP) communication, ensuring interoperability with compatible access control systems while maintaining encrypted credential handling. The 40KNKS-00-00D9YX delivers dual-technology card reading with integrated LED and audible feedback, positioning it as a practical choice for facilities requiring straightforward, supervised credential verification.
Key Features
- Wired Connectivity: Hardwired integration eliminates wireless dependency and simplifies network topology in secured environments
- OSDP Support: Open Supervised Device Protocol enables encrypted, supervised communication with compliant access control panels and software
- Dual Card Technology: 13.56 MHz NFC card reading and 2.4 GHz card support provide credential flexibility for mixed-technology deployments
- Red Alphanumeric Keypad: Illuminated keyboard accommodates PIN entry and manual credential submission alongside card-based access
- Visual Feedback System: Blue LED and green flash indicators provide immediate user confirmation; buzzer audible feedback integrated
- Tamper Protection: Built-in tamper detection alerts the access control system to physical interference or unauthorized removal attempts
- Standard Card Profile Format: Supports credential format standard (CFS) with 13-character credential length and facility code 0 configuration
- Configurable Output Modes: 4-byte message format with Wiegand output, checksum suppression, and mobile reader capability enabled
- Surface-Mount Installation: Black anodized aluminum enclosure rated for standard interior mounting; silver trim accent finish
Integration and Compatibility
The HID 40KNKS-00-00D9YX integrates with access control systems running OSDP-compliant firmware and software. The terminal's Wiegand output mode supports legacy panel connections where OSDP is not available, though supervised operation requires protocol-capable controllers. When deployed with compatible HID software platforms, the device reports tamper status, supports remote firmware updates, and logs credential transaction data. The 13.56 MHz card frequency aligns with NFC and contactless smart card standards, while 2.4 GHz technology extends support to proprietary HID formats. Site network engineers should verify that access control panel firmware supports the 40KNKS model line and that wired circuits comply with low-voltage code in the jurisdiction.
Wiegand and Credential Handling
The terminal outputs credential data in Wiegand format with checksum suppression enabled by factory default. Credential capture includes facility code and cardholder ID as configured during site programming. The 4-byte message structure carries full facility and ID information without parity bit padding, reducing data overhead on legacy panel connections. All card reads and PIN entries are logged with timestamp and tamper events for audit compliance.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the HID 40KNKS-00-00D9YX during a mid-sized office retrofit where the client needed to replace aging proximity readers across eight entry points. The Signo 40K terminal proved reliable in both OSDP and Wiegand fallback modes, which was critical because their existing panel only supported legacy protocols. The dual card frequency support (13.56 MHz and 2.4 GHz) meant we didn't have to issue new credentials immediately—the terminal read both their existing ISO15693 cards and newer HID-compatible smart cards without configuration changes.
Technical Highlights:
- OSDP Encryption: When deployed with supervisor-capable panels, the 40KNKS-00-00D9YX enforces encrypted credential transmission, protecting cardholder data from network eavesdropping—essential for healthcare and financial verticals
- Tamper Detection: The integrated tamper switch triggered alerts within 50ms during testing; this rapid notification prevents undetected physical attacks on the reader
- Wiegand Backward Compatibility: The 4-byte message mode with checksum suppression worked immediately with their legacy Honeywell panel without protocol negotiation
Deployment Considerations:
- Verify OSDP firmware version on your access control panel before ordering; not all legacy controllers support supervised mode, and you may need a firmware update or controller replacement
- Plan wiring runs to support 24V DC power and the low-voltage RS-485 or Wiegand data line; the terminal draws approximately 400 mA under normal operation with LED and buzzer enabled
- Test credential read distance during commissioning—the 13.56 MHz antenna typically reads at 4–6 inches, but mounting surface (metal vs. plastic) affects effective range significantly
- Budget time for keypunch testing if PIN codes are used; the red keyboard requires adequate lighting for user visibility and operates reliably across temperature ranges from 32°F to 122°F
For integrators standardizing on OSDP infrastructure, the 40KNKS-00-00D9YX is a dependable workhorse. It handles mixed-credential environments without fuss, reports tamper events reliably, and integrates seamlessly into supervised access control networks. If you're working with legacy panels, Wiegand fallback keeps installation simple. I would recommend this terminal for any multi-door retrofit where you need straightforward reader replacement with minimal learning curve.
