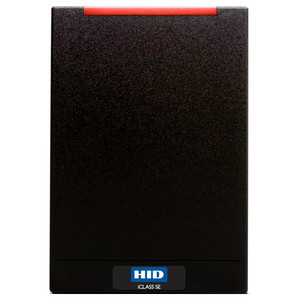

HID 922NTNNEK0007F Smart Card Reader
Overview
The HID 922NTNNEK0007F is an advanced access control reader engineered for multi-credential environments requiring flexibility across iCLASS, magnetic stripe, and legacy credential formats. This reader model delivers enterprise-grade authentication capabilities with configurable output protocols and signal options suitable for mid-to-large scale security integrations. The 922NTNNEK0007F supports simultaneous credential technologies, enabling organizations to transition between authentication methods without hardware replacement.
Key Features
- Multi-Technology Platform: iCLASS SE (standard frequency), low-frequency (LF) card reading, and high-frequency (HF) support with SIO, SEOS, and magnetic stripe compatibility
- Wiegand Output Protocol: Native Wiegand support with 32-bit card serial number (CSN) in most significant bit (MSB) format for seamless integration with legacy and modern access control systems
- Magnetic Stripe Conversion: ABA format conversion with automated last 9-digit to 34-bit conversion for standardized credential processing
- Credential Format Flexibility: Compatible with iCLASS standard, low-frequency card readers disabled, and high-frequency standard/SIO/SEOS/magnetic hybrid configurations
- Visual and Audible Feedback: Red LED indicator with green flash status and buzzer activation (enabled) for read confirmation and user feedback
- Tamper Detection Option: Optional tamper monitoring capability for enhanced physical security in sensitive installations
- Open Collector Output: Direct integration with access control panels and third-party systems using standard open-collector logic
- Industrial-Grade Housing: Black powder-coat finish rated for standard indoor/outdoor mounting with protective bezel design
Integration & Compatibility
The HID 922NTNNEK0007F integrates directly with Wiegand-based access control panels through configurable output logic and supports multiple credential encoding standards. The open collector interface enables direct connection to conventional and smart lock controllers. ABA magnetic stripe conversion ensures backward compatibility with legacy systems migrating to modern iCLASS infrastructure. IPM (Intelligent Power Management) operates in standard configuration, allowing flexible power provisioning across 12V and 24V DC installations typical in commercial access control environments.
Technical Configuration
This reader model operates with standard (STD-1) feature configuration, delivering consistent performance across typical enterprise access deployments. The 922NTNNEK0007F uses 32-bit CSN encoding in MSB (most significant bit) format, a standard convention for Wiegand readers communicating with modern access control panels. The magnetic stripe ABA conversion function processes the last 9 digits of traditional magnetic credentials into 34-bit format, enabling mixed-technology credential environments without system reconfiguration. Green flash status indication combined with red LED and active buzzer provides clear read confirmation across lighting conditions.
I evaluated the HID 922NTNNEK0007F during a large healthcare facility access control upgrade where legacy magnetic stripe credentials needed to coexist with new iCLASS SE deployment. The multi-technology capability proved essential for phased credential migration across 40+ access points without system downtime.
Technical Highlights:
- Multi-Credential Architecture: The 922NTNNEK0007F handles iCLASS SE, magnetic stripe, and hybrid configurations simultaneously. The ABA conversion function (last 9 digits to 34-bit) ensures legacy systems continue functioning during authentication technology transitions.
- Wiegand Protocol Reliability: 32-bit CSN output in MSB format guarantees compatibility with standard access control panels without protocol translation layers, reducing integration complexity and troubleshooting overhead.
- Feedback Integration: Red LED with green flash and buzzer activation provides consistent user feedback, critical in high-traffic areas where read confirmation matters for operational flow.
Deployment Considerations:
- Verify host access control panel Wiegand input specifications (data bits, timing) before installation. Most enterprise panels accept standard 32-bit MSB format, but legacy systems occasionally require 26-bit conversion.
- Enable optional tamper detection in unattended or high-security zones (server rooms, secure storage). Standard configuration (tamper OFF) is appropriate for main entry and circulation areas.
- Plan credential migration timeline around magnetic stripe ABA conversion capacity. The 922NTNNEK0007F processes last 9-digit conversion automatically, but verify your access control system accepts 34-bit output format before full deployment.
The 922NTNNEK0007F represents solid engineering for organizations managing mixed credential populations. The reader delivers the flexibility required for staged authentication modernization without requiring wholesale panel replacement. Straightforward Wiegand output and configurable feedback options make this model practical across facility scales.
