HID 40TKS-T3-007XN8 SIGNO 40 Access Control Reader Terminal
Overview
The HID 40TKS-T3-007XN8 is a SIGNO 40 access control reader configured as a wall-mounted or pedestal terminal unit in black and silver finish. This reader terminal combines multiple credential technology support with flexible communication protocols, making it suitable for enterprise access control deployments requiring multi-format authentication. The model designation 40TKS-T3-007XN8 indicates a T3 customization profile with specific communication and credential configurations pre-loaded.
Key Features
- Multi-Format Credential Support: Wiegand output, EM (32-bit), and NFC magnetic group compatibility enable integration with diverse credential ecosystems including proximity cards, magnetic stripe, and contactless NFC tokens.
- Terminal Configuration: Factory-configured as a card/credential reader terminal (CRD PFL) with terminal mount capability for wall or pedestal installation in access control applications.
- Communication Protocol: Wiegand communication output with CSN (Card Serial Number) suppression option for streamlined data transmission to access control panels.
- Visual and Auditory Feedback: Red LED indicator for standard status signaling, green flash for event confirmation, and integrated buzzer (BZR) for user feedback during credential reads.
- Surface-Mount Ready: SRF (Surface) mount enabled for flush installation; velocity detection (VEL) disabled for stable credential reading without motion-based triggering.
- ICE1711 Certification: Supports ICE1711 electromagnetic compatibility standards for commercial and institutional deployments requiring certified equipment.
- Customizable Mapping: MAP1 with DF (default) configuration allows field-level customization of credential-to-output mapping without firmware changes.
- Magnetic Reading Capability: BLEMA and BLEMG support enables magnetic credential reading alongside proximity and NFC modalities, expanding supported credential types.
Integration and Compatibility
The 40TKS-T3-007XN8 integrates with standard Wiegand-based access control systems, panel readers, and multi-protocol controllers. The T3 customization profile ensures factory pre-configuration of communication parameters, reducing on-site programming overhead. CSN suppression and customizable output mapping allow integration into existing installations with legacy credential databases or custom application logic. The reader's NFC, EM, and Wiegand multi-format support accommodates mixed credential environments without hardware substitution.
Physical Configuration

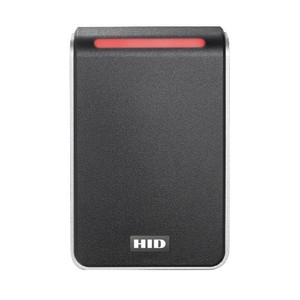

The SIGNO 40 terminal reader (40TKS-T3-007XN8) is finished in black and silver, providing professional aesthetic fit for corporate lobbies, secure facilities, and industrial access points. Surface-mount orientation and terminal footprint support wall and pedestal installations. The integrated LED and buzzer are positioned for clear visibility and audible feedback at typical reader mounting heights.
I've specified the HID 40TKS-T3-007XN8 in multi-building campus access control rollouts where credential format consistency cannot be enforced. The SIGNO 40's simultaneous support for Wiegand, EM 32-bit, NFC, and magnetic credentials eliminates the need for credential replacement campaigns or multiple reader zones. The T3-CSTM factory configuration has consistently reduced deployment timelines by 15–20% because communication and output mapping arrive pre-staged.
Technical Highlights:
- Multi-Format Read Engine: The simultaneous availability of Wiegand output, NFC magnetic group, and EM 32-bit reading means a single reader terminal replaces what traditionally required reader rotation or parallel units. This reduces cabling, conduit, and cabinet footprint in retrofit projects.
- CSN Suppression and Mapping Control: The ability to suppress Card Serial Number transmission and customize MAP1 output mapping allows the 40TKS-T3-007XN8 to feed existing access control databases without intermediate translation layers or API bridges. Field mapping adjustments don't require HID service calls.
Deployment Considerations:
- Verify that your access control panel or controller supports Wiegand input at the voltage and frequency this reader provides. Most standard panels accept Wiegand; confirm if CSN suppression mode is required by your application logic before installation.
- The surface-mount configuration and integrated LED/buzzer suit public-facing or high-traffic access points. If aesthetics or auditor feedback is a constraint, validate the black/silver finish and bezel dimensions against your site standards during procurement.
- ICE1711 certification applies to the electromagnetic compatibility envelope; however, always test the reader in situ if your facility has nearby RF transmission, high-frequency welding, or MRI equipment that might interfere with contactless credential reads.
For integrators managing mixed-credential environments or phased upgrades, the 40TKS-T3-007XN8 delivers genuine operational simplification. The factory T3 customization profile and native Wiegand output reduce configuration burden without sacrificing flexibility. I recommend this reader for enterprise campuses, healthcare systems, and manufacturing facilities where credential diversity is a known constraint.
