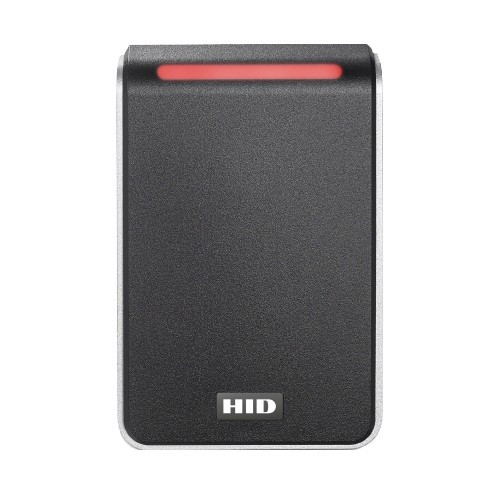

HID 40NKS-02-01D0FM SIGNO 40 Black Silver Reader

We've deployed the SIGNO 40 series across dozens of access control integrations, and the multi-tech credential support consistently solves a real problem: legacy proximity card bases that need gradual modernization without rip-and-replace cost. Most of our clients have 500+ active prox cards in circulation; the ability to read both 125 kHz and 13.56 MHz at the same reader lets them issue DESFire or iCLASS cards to new hires and departing staff without inventory chaos. The OSDP v2 protocol is the other major differentiator — it decouples reader logic from panel firmware, so you're not locked into a single vendor's access control software. We've seen organizations swap entire PACS platforms (moving from proprietary panel ecosystems to cloud-managed systems) without touching any reader hardware in the field. That operational flexibility is worth the premium over single-tech readers in any deployment larger than 20 doors.

The mobile credential support (HID SEOS and Mobile Access integration) is maturing rapidly. On paper, smartphone-based NFC access sounds futuristic; in practice, we're seeing adoption in corporate lobbies and tenant buildings where BYOD is policy. The secure enclave on modern phones (iOS secure element or Android SE) holds the credential token; the reader sees it as a standard 13.56 MHz NFC transaction. Pairing mobile credential issuance with traditional card-based fallback (user gets both a smart card and mobile credential) gives you business continuity if the phone is lost or the NFC radio fails.

Technical Highlights:

• Multi-Technology Credential Support: Native support for 125 kHz (HID proximity), 13.56 MHz (DESFire, iCLASS, MIFARE, SEOS, NFC) in a single reader. Eliminates credential format gatekeeping and lets your organization adopt new card types without hardware obsolescence. Operational impact: one reader SKU replaces three (prox, HID iCLASS, generic NFC).
• OSDP v2 Protocol: Vendor-neutral secure communication between reader and access control panel. Panel independence means you can upgrade PACS software or migrate to a new system without reader replacement. Critical in large organizations where access control platforms evolve (e.g., on-premises panel to cloud-hosted SaaS).
• Certified Secure Element: Cryptographic key storage on certified secure element protects credential data. Supports encrypted credential transmission over OSDP link, mitigating eavesdropping on wired reader-to-panel circuits. Meets compliance requirements for financial institutions and healthcare organizations handling sensitive access logs.
• Automatic Surface Detection: Recalibrates read range based on mounting substrate (metal vs. non-conductive). Reduces on-site commissioning overhead — no field tuning required. For metal door frames, this auto-compensation prevents the read-range desensitization that manual antenna matching would require.
• Configurable LED/Flash Indicators: User-selectable LED colors and flash patterns for visual feedback during commissioning and operation. Useful in noisy environments where audible beepers are insufficient; helps users confirm credential capture without audible cues.

Deployment Considerations:

• Keypad Not Included: This model is reader-only; there is no numeric keypad. If your deployment requires PIN fallback (user enters PIN if card is lost), you must confirm your access control panel supports software-based PIN entry on a separate keypad device, or select the 40KT series with integrated keypad. This is a common gotcha on first install — verify PIN fallback architecture before ordering.
• OSDP Panel Required: This reader requires an OSDP v2-capable access control panel. If your site is running older Wiegand-only panels (common in retrofit installations from 10+ years ago), this reader will not integrate. Always confirm panel OSDP support before proposing this reader to a legacy system.
• Mobile Credential Ecosystem Dependency: NFC mobile credential support requires HID Mobile Access backend or equivalent ecosystem. If your client runs a closed access control network (no cloud connectivity, no smartphone integration policy), mobile credential support remains unused. Size the credential strategy (card vs. mobile) before installation to avoid over-specifying features.
• Surface Material Matters: Automatic surface compensation works well for standard mounting (wood, plastic, non-ferrous materials). On large ferrous metal surfaces (e.g., steel door frame without plastic spacer), the reader may recalibrate to a shorter effective range. Test with actual substrate during site survey if mounting on raw steel or aluminum framing.
• Wired Power/Data Line: Reader requires dedicated wired power and OSDP data connection to panel. No wireless fallback. In environments with strict PoE limitations (e.g., daisy-chained readers sharing a single PoE injector), verify power budget with HID before ordering 40NKS units in quantity.

Choose the SIGNO 40 when your deployment spans multiple credential types, requires platform independence (OSDP v2), or plans a phased migration from legacy to modern card technologies. It's the right reader for corporate campuses, healthcare systems, and government facilities where access control platform longevity and credential flexibility matter more than absolute cost. For more multi-tech and specialized access control readers, explore the full HID catalog.
