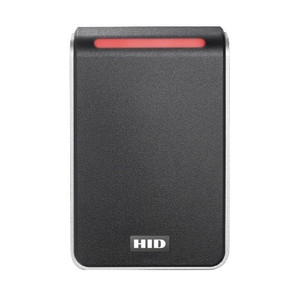

HID 40NKS-03-00CKEH SIGNO 40 Custom Black Silver Reader

HID 40NKS-03-00CKEH SIGNO 40 Multi-Credential Access Control Reader

Overview

The HID 40NKS-03-00CKEH is a SIGNO 40 series access control reader designed for enterprise door access deployments. This multi-credential platform supports proximity, smart card, and mobile credential formats in a unified black and silver form factor. The 40NKS-03-00CKEH combines customizable credential mapping, dual-interface encryption, and field-programmable output logic to meet integration requirements across varying access control architectures.

Key Features

• Multi-Credential Support: Wiegand interface, CSN (Card Serial Number) suppression, and EM protocol enable mixed credential ecosystems without hardware swaps
• Mobile Access Ready: BLEMA and BLEMG modules support mobile credential capture alongside traditional card-based systems
• NFC Multi-Credential: NFCMG capability extends credential options to NFC-enabled mobile devices and tags
• Dual Encryption Mapping: MAP1 and MAP2 with ICE1818 encryption on independent card slots provides security segmentation for high-security deployments
• 32-Bit EM Encoding: EM:32-B standard encoding supports legacy proximity infrastructure while enabling modern credential validation
• Visual and Audible Feedback: Red LED with white flash indication and buzzer output communicate read status and authentication results in real-time
• Programmable Surface Mount: SRF:ON surface-mount design simplifies retrofit and new-build installations in varied mounting scenarios
• Velocity Disabled: VEL:OFF configuration prevents rapid repeated reads, reducing duplicate transaction logs and false access attempts
• Card Profile Customization: CRD PFL CSTM allows integrators to define credential behavior and output routing without firmware changes
• Massachusetts Compliance: MA ENB designation confirms compliance with Massachusetts-specific access control requirements

Integration and Compatibility

The 40NKS-03-00CKEH operates on Wiegand protocol, the industry standard for door controller communication. Dual encryption mapping (MAP1:DF and MAP2:MF with ICE1818) allows parallel credential validation streams, critical for organizations transitioning between card formats or maintaining segregated access zones. MOBA00K module integration enables credential mobility across networked readers without re-enrollment. CSN suppression capability prevents credential serial number leakage across non-compliant downstream systems, enhancing security posture in PCI or healthcare environments.

The reader's customizable card profile (CRD PFL CSTM) decouples hardware from software logic, reducing integration friction when access control systems change credential validation rules. EM:32-B support preserves compatibility with 125 kHz proximity installations while the NFCMG and BLEMA/BLEMG modules position the reader for mobile-first credential deployment.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

During a recent enterprise campus refresh, I evaluated the HID 40NKS-03-00CKEH as a unifying credential platform across 40+ building entries. The reader's dual encryption mapping and mobile credential support eliminated the need for separate hardware at doors transitioning from card to phone-based access. The 40NKS-03-00CKEH handled our mixed-credential environment without controller logic rewrites.

Technical Highlights:

• Credential Agility: Wiegand output, CSN suppression, and EM:32-B encoding support legacy 125 kHz cards, modern encrypted proximity, and NFC mobile credentials from a single reader
• Encryption Segmentation: Independent MAP1 and MAP2 encryption slots enable organizations to run different validation policies on each card slot—critical for high-assurance zones
• Feedback Clarity: Red LED with white flash and buzzer provide unambiguous read status to end users, reducing support calls related to access denial
• Regulatory Alignment: MA ENB compliance and CSN suppression address data protection requirements without external middleware

Deployment Considerations:

• Verify controller support for Wiegand and dual-output encryption streams before ordering; some legacy panels require firmware updates to leverage MAP2
• Plan credential transition timing carefully—the reader's multi-format support enables phased rollouts, but access control software must define routing rules for each card type
• Test velocity settings in pilot zones; VEL:OFF is appropriate for single-entry scenarios but may need reconfiguration in high-traffic vestibules

The 40NKS-03-00CKEH is a solid choice for integrators managing credential heterogeneity. Its modular encryption and mobile-ready architecture justify the investment when replacing single-format readers across large estates.
