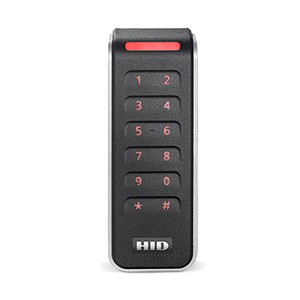

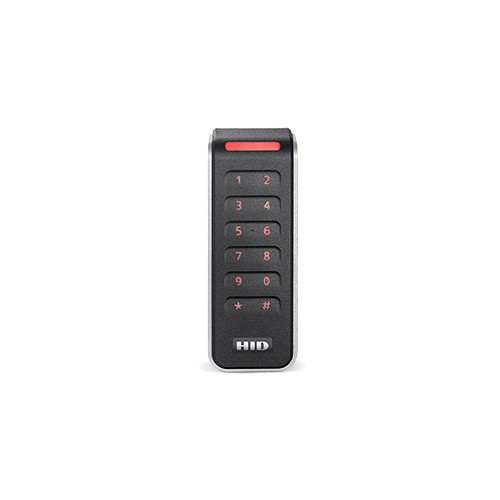

HID 20KNKS-01-010J4R Signo 20K Mullion Reader with Integrated Keypad
Overview
The HID 20KNKS-01-010J4R is a Signo 20K series access control reader designed for mullion mounting applications where space constraints and aesthetic integration are critical. This model combines credential reading capability with an integrated keypad interface, making it suitable for facilities requiring dual-factor authentication or standalone PIN entry. The mullion form factor positions the reader vertically on door frame mullions, delivering a streamlined installation profile without protruding hardware. The pigtail connection design simplifies field wiring and reduces integration complexity in retrofit or new construction deployments.
Key Features
- Mullion-mounted form factor for vertical door frame integration
- Integrated numeric keypad for PIN or supplementary authentication
- Pigtail connector for simplified field termination and wiring
- Signo 20K series platform ensuring compatibility with HID enterprise access control ecosystems
- Compact design minimizing visual impact on door assemblies
- Supports credential reading and entry control in single-reader deployments
Integration and Compatibility
The 20KNKS-01-010J4R integrates within HID's Signo 20K reader family, enabling standardized configuration across multi-door and campus-wide installations. The pigtail connection accommodates standard door control wiring protocols and pairs with compatible HID access control panels and middleware. Mullion mounting allows installation on both glass and metal door frames, supporting left-hand and right-hand opening configurations depending on facility layout requirements.
Typical Applications
This reader model is deployed in office buildings, healthcare facilities, laboratories, and secure entry points where credential authentication combined with PIN verification enhances access control security. The mullion form factor suits environments where exposed hardware would compromise aesthetics or operational workflow—such as glass-fronted office suites, medical facilities, and client-facing secure areas.
Deployment Considerations
Integrators should verify mullion profile dimensions and door frame material compatibility prior to site deployment. The pigtail connector should be routed through existing conduit or cable management systems to maintain professional appearance and protect wiring from physical damage. Keypad integration requires coordination with the access control panel to confirm PIN entry logic and credential-plus-PIN authentication workflows. Field testing of reader responsiveness and keypad sensitivity is recommended before final site acceptance.
I've specified the HID 20KNKS-01-010J4R on several campus retrofit projects where aesthetic integration matters as much as functionality. The mullion-mounted design kept our architects happy while delivering the enterprise-grade access control that security teams demand. The integrated keypad adds flexibility for PIN-only fallback scenarios and multi-factor entry workflows.
Technical Highlights:
- Mullion Form Factor: Vertical mounting on door frame mullions eliminates surface-mounted reader box appearance and maintains clean door assembly aesthetics.
- Integrated Keypad: On-board numeric entry enables PIN authentication, credential-plus-PIN workflows, and standalone PIN-only access in degraded-mode scenarios.
- Pigtail Connectivity: Pre-terminated cable with connector simplifies field termination and reduces wiring errors during installation.
- Signo 20K Platform: Standardized HID reader family ensures firmware consistency and simplified support across multi-reader deployments.
Deployment Considerations:
- Confirm mullion profile width and material composition before ordering to ensure proper fit and mounting stability.
- Route pigtail cable through conduit or cable tray to protect connectivity and maintain installation longevity in high-traffic areas.
- Coordinate keypad PIN entry logic with your access control panel during system configuration to validate credential-plus-PIN workflows.
- Schedule reader sensitivity testing post-installation to verify card read distance and keypad response across environmental conditions.
If your project requires mullion-mounted readers with integrated authentication input, this model delivers. The combination of compact form factor, integrated keypad, and Signo 20K platform compatibility makes it a reliable choice for enterprises balancing aesthetics with security functionality.
