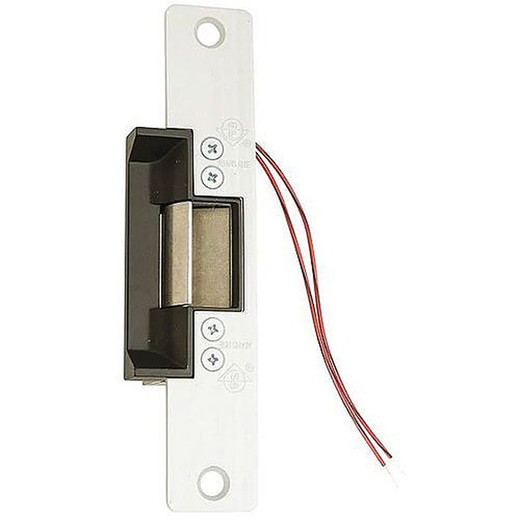

HES 7160-310-628-00 Electric Strike
The HES 7160-310-628-00 is an electric strike designed for access control system integration on standard commercial door frames. It provides electronically managed locking through relay signals from access control panels, eliminating manual key-based entry at controlled access points. This is the foundational strike for facilities deploying credential readers, badge systems, or keypad entry alongside centralized door lock management.
Key Features
- Standard Corner Mount: Fits conventional jamb preparation on commercial door frames. No custom routing or frame modification required.
- Relay-Driven Operation: Controlled by standard access control panel relay outputs. Works with any access panel offering 12V or 24V DC relay output.
- Commercial Power Supply Compatible: Operates on standard access control power supplies (12V or 24V DC). Electrical integration mirrors credential reader wiring conventions.
- Credential Reader Integration: Pairs with electronic readers (magnetic stripe, proximity, smart card, keypad) for managed entry authorization and audit logging.
- Lightweight, US-Manufactured: 1.55 lb unit sourced domestically. Reduces lead times and supports direct integration support.
- Fail-Safe Mechanical Design: Spring-latch mechanism remains predictable across power cycling. No software dependencies or firmware updates required.
Integration & Deployment
The 7160-310-628-00 operates as a passive electromechanical device — power and control flow through the access panel's relay output, not through a separate network connection. This simplicity is both a strength and a constraint. On the strength side: no network overhead, no IP addressing, no VPN dependency, and immediate failover to mechanical key if the access panel loses power. On the constraint side: you cannot remotely unlock the door from the VMS or access management platform — the access panel must physically send the relay signal. If your site architecture requires software-based remote unlock or mobile app entry, you'll need a networked electric strike (typically Ethernet-enabled or integrated into a smart lock) paired with an IP-based access control platform.
Mounting is straightforward on new construction or retrofit. The corner mount assumes standard 1-3/8" door frame geometry (most commercial hollow-metal frames). Verify jamb preparation before ordering; if the frame has non-standard pocket routing or has been modified for another strike type, a strike adapter plate may be required. Once mounted, the strike pairs directly to the access control panel's 12V or 24V relay output — typical wiring includes power, ground, and relay signal lines running in conduit alongside credential reader cabling.
Audit trails and activity logging depend entirely on the access control panel's reporting capabilities. Every unlock request triggered by a credential (badge swipe, PIN entry, keypad code) is logged by the panel if the system supports it. This product itself does not generate or store logs — all records flow through the control panel. For facilities with strict access documentation requirements (healthcare, financial services, government), ensure the chosen access panel platform supports the granularity and retention you need.
Deployment Considerations
The 7160-310-628-00 is a relay-driven strike, not a networked smart lock. It has no built-in Wi-Fi, Bluetooth, or IP connectivity. If you need mobile app unlock, remote management from a cloud portal, or integration with a cloud-based VMS (Genetec, Milestone, etc.), this strike must be paired with an IP-capable access control platform that includes network relay modules or a gateway. Many integrators use this strike with a local on-premises access panel; cloud connectivity is added via a separate gateway that polls the panel's API or event stream.
Power resilience: the strike's electromagnet requires continuous power to remain unlocked. Loss of power (blown fuse, tripped breaker, power supply failure) causes the strike to return to locked state — a fail-safe design. If your facility requires power-independent unlock (battery backup on the strike itself), you will need a different product. Some integrators pair this strike with a UPS on the access panel's power supply to maintain unlock capability during brief outages.
Environmental exposure: this is an indoor-rated strike. It does not carry an IP rating for weather resistance. Installation in covered entryways (vestibules, indoor loading areas) is typical; direct outdoor exposure (rain, salt spray, extreme temperature swings) will degrade the mechanism faster. For outdoor-rated electric strikes, HES and other manufacturers offer stainless-steel or powder-coated variants with IP54+ ratings.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed thousands of HES strikes across office buildings, warehouses, and mixed-use facilities. The 7160-310-628-00 is the workhorse of relay-driven electric strikes — simple, predictable, and deeply compatible with legacy access control panels deployed in the 2000s-2010s era. The product succeeds because it does one thing well: respond to a relay signal and unlatch. It fails when integrators or end-users expect cloud connectivity, mobile app control, or real-time networked status reporting without adding a gateway layer. In our experience, the most common mistake is specifying this strike into a facility that later wants mobile unlock capability — the strike itself won't provide it, and retrofit installations of IP-capable access platforms are costly. Conversely, if your facility has a working on-premises access panel and you need a straightforward door-locking mechanism, the 7160-310-628-00 is bulletproof. The 1.55 lb weight and US manufacturing matter too: shorter lead times and easier emergency replacement than imported units that may be backordered 8-12 weeks.
Technical Highlights:
- Relay-Driven Electromagnet: 12V or 24V DC relay signal activates the solenoid coil. No microprocessor, no logic — electromagnetic force directly retracts the latch bolt. Failure modes are predictable: either the coil is powered (unlocked) or not (locked). Eliminates the software debugging complexity of networked locks.
- Corner Mount, Standard Jamb Prep: Designed for hollow-metal and wood door frames with conventional strike pocket routing. Retrofit installations on older frames are faster because no custom mortising is required. Mounting hardware is included; installation labor typically 20-30 minutes per door.
- Spring-Latch Mechanism: The latch retracts when the electromagnet is energized, allowing the door to push open. When power is lost, the spring returns the latch to locked position. This fail-safe behavior is a feature, not a bug — doors default to locked if the access panel dies.
- Commercial Power Supply Compatibility: Works with any 12V or 24V DC power supply rated for access control loads. No proprietary power requirement. Most facilities already have access control power supplies installed; this strike integrates into that existing infrastructure without additional electrical work.
- Lightweight (1.55 lb): Low mass reduces door frame stress on retrofit installations. Easier for a single technician to mount and position during installation.
Deployment Considerations:
- No Network Connectivity: This strike has no Wi-Fi, Bluetooth, or Ethernet. If the access panel is offline (no Internet, no local network), the strike still functions via relay signal — local operation is guaranteed. Remote app unlock requires an IP-based access control platform with a gateway; the strike alone cannot provide it.
- Power-Loss Behavior: When power is removed, the strike returns to locked state. If the facility requires power-independent unlock or battery-backed operation, specify a battery-backed UPS on the access panel supply or consider a different strike with integrated backup power.
- Jamb Verification Before Order: Confirm the door frame has standard strike pocket routing. Non-standard frames, commercial glass doors with narrow stiles, or frames previously modified for other strike types may require adapter plates or custom installation. A site survey before order prevents delays.
- Indoor-Rated Only: Not weather-sealed. Covered entryway (vestibule, interior hallway) installation is appropriate. Direct outdoor exposure will accelerate corrosion and mechanism wear. For exterior doors, specify HES outdoor-rated electric strikes (stainless steel, IP54+).
- Audit Trail Dependency on Access Panel: Activity logging and unlock records come from the access control panel's reporting, not from the strike itself. Ensure the chosen panel platform captures the granularity and retention period required by your compliance framework (HIPAA, PCI-DSS, SOC 2, etc.).
The HES 7160-310-628-00 is the right fit for on-premises access control deployments where simplicity, reliability, and rapid installation are priorities. It's not the right fit if your roadmap includes cloud-based access management or mobile app entry control without additional gateway infrastructure. For facilities ready to move beyond relay-based strikes, explore IP-enabled electric locks (networked solenoid or motor-driven deadbolts) paired with cloud access platforms — but expect higher capex and ongoing subscription costs. For a straightforward facility upgrade or new office space with an existing access panel, the 7160 is proven and cost-effective. See the full HES catalog for additional strike models and configurations.
