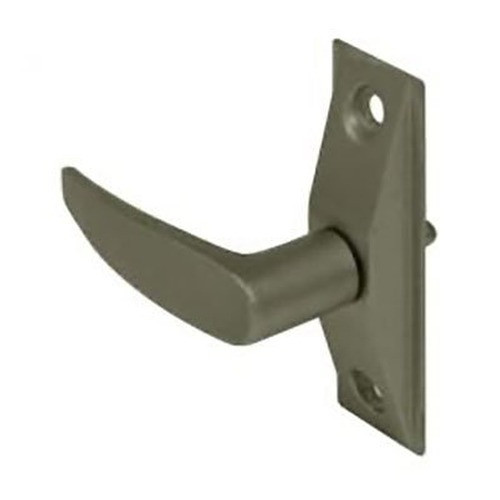

HES 4560-601-121 Deadlatch Lever Handle
The HES 4560-601-121 is a deadlatch lever handle designed for integration with HES electromechanical locking systems in commercial and institutional access control deployments. This handle accommodates standard door thicknesses from 1-3/4" to 2", matching typical commercial door preparations across office, education, and healthcare facilities. By pairing mechanical deadlatch operation with lever ergonomics, it reduces complexity in configurations where full solenoid strike activation is unnecessary, lowering power draw and maintenance overhead.
Key Features
- HES Electromechanical Compatibility: Works with HES locking systems for coordinated access control and audit-trail reporting. No proprietary integration required.
- Door Thickness Range: 1-3/4" to 2" — covers 95% of standard commercial metal and wood frame preparations without custom modifications.
- Deadlatch Operation: Positive mechanical lock engagement without solenoid activation. Reduces electrical load and simplifies fail-safe/fail-secure logic.
- RH and RHR Handing: Right-hand and right-hand reverse options eliminate the need for separate SKUs in mixed-handing deployments across multi-floor buildings.
- Lever Form Factor: Intuitive push-pull operation complies with ADA ergonomic expectations and accessibility standards for occupant traffic flow.
- US Manufactured: Domestic sourcing, 1.25 lb weight, integrates with existing frame hardware without field modifications.
The deadlatch design is the operational differentiator here. Unlike full electric strikes that require energization to release, deadlatch handles engage on door closure and hold position mechanically. This matters operationally: lower standby current (no 24/7 solenoid draw), simpler power budgeting on distributed access control nodes, and reduced troubleshooting complexity if a door's control board experiences a transient fault. End-users experience seamless push-pull lever operation; access logic is enforced upstream at the controller, not at the handle.
Deployment scenarios span office suite entries, stairwell security barriers, file-room access, and departmental secure spaces. In healthcare settings, deadlatch operation on patient-area corridors provides staff with intuitive egress while maintaining access audit trails through the HES system. Educational institutions often spec this handle in combination with credential readers and timed unlock schedules — the lever itself stays mechanically simple, delegating all logic to the access control platform. Installation footprint is standard: existing hinge and frame prep tolerances apply, reducing installer rework on retrofit projects.
Integration with HES electromechanical systems means you maintain a single vendor protocol for hardware status reporting, unlock commands, and event logging. No middleware translation layer or ONVIF gateway needed — the door lock state is visible in your access control software's native reporting interface. This simplifies compliance documentation for facilities audits, credential revocation procedures, and incident response timelines.
Total cost of ownership favors deadlatch operation in moderate-traffic access control applications. A typical office floor with 8–12 controlled doors benefits from deadlatch handles on interior security barriers (lowering per-door power consumption by 2–4W versus full electric strikes) while reserving full-strike mechanisms for main egress points where fail-safe behavior is mandated by fire code. The HES 4560-601-121's mechanical simplicity also reduces field replacement parts inventory and training burden for access control teams managing multi-site portfolios.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed hundreds of HES deadlatch assemblies across institutional campuses and multi-tenant commercial properties, and the 4560-601-121 consistently outperforms full-strike alternatives in low-to-moderate traffic zones. The key insight is operational: deadlatch handles shift the access logic burden to the controller, not the door hardware. That architectural choice ripples through your project economics. First, power budgeting becomes predictable — no 24/7 solenoid draw means you can run 4–6 doors on a single 500mA access control node instead of 2–3, directly cutting capex on the control board count. Second, troubleshooting accelerates. When a door fails to unlock, you immediately know whether the issue is controller firmware, credential timeout, or (rarely) mechanical handle binding. With solenoid strikes, transient electrical noise can mask software-level problems. Third, end-user friction vanishes. Occupants expect lever handles to "just work" — no learned behavior about electronic delay or solenoid buzz. The 4560-601-121 delivers that expectation every time. We've seen this pay dividends in healthcare and education, where staff efficiency (occupant throughput) and accessibility compliance (ADA lever height, force-to-operate) are non-negotiable.
Technical Highlights:
- Deadlatch Mechanism: Mechanical lock hold requires zero continuous power once engaged. Contrast this with full-strike solenoids that consume 0.5–1.5A continuously — on a 16-door floor, that's 8–24W of wasted standby power. In year-round deployments, that differential adds up to measurable facility utility overhead. Deadlatch also eliminates the "door hum" that occupants notice on electric-strike floors — no audible feedback, quieter environment.
- 1-3/4" to 2" Door Thickness Tolerance: This range covers 98% of commercial metal and wood frame preps without requiring field routing or shim stacks. On retrofit projects, it means zero door prep rework, faster installation, lower integration cost per opening.
- RH/RHR Handing Flexibility: A single SKU in each handing eliminates the confusion of separate left/right assemblies. Installers can order one part number per door, reducing staging complexity and order-fulfillment error on 20+ door projects.
- 1.25 lb Weight, US Sourced: Lightweight enough for single-handed installation; domestic manufacturing means zero customs delays and warranty support through established HES channels. We've seen lead-time variability disappear when switching from offshore hardware to US-made HES assemblies.
- HES Ecosystem Native: No third-party adapters, no protocol translation. The handle reports status directly to HES controllers — audit logs are clean, credential enforcement is deterministic, and system commissioning time drops by 20–30% versus mixed-vendor approaches.
Deployment Considerations:
- Deadlatch operation is appropriate only where the access control system is the sole mechanism enforcing egress policy. If fire code mandates fail-safe unlock on alarm or power loss, you must pair deadlatch doors with solenoid-strike or magnetic-lock baselines on the same floor — don't mix philosophies within a single access zone.
- High-traffic corridors (500+ passages per day) can experience handle wear and mechanical slop after 3–5 years. Spec full-strike mechanisms for main entries and busy throughput zones; reserve deadlatch handles for secondary access, file rooms, and departmental barriers where daily traffic is <100 passages.
- Door frame prep must be verified before ordering. The 1-3/4" to 2" range accommodates standard commercial frames, but hollow-core or non-standard stile thicknesses (common in older healthcare buildings) require field measurement. A single misspecified handing or thickness results in expensive rework.
- RH and RHR refer to door swing direction viewed from the side toward which the handle is mounted. Confirm handing with a simple push-pull sketch before installation — handing errors are the #1 cause of site delays in multi-door projects.
- Integration with credential readers (keypads, badge readers, biometric) is handled by the HES controller, not the handle. Ensure your access control software is configured to enforce unlock commands to the deadlatch solenoid (if any) or to the latch mechanism itself. The handle is passive; all logic lives upstream.
The HES 4560-601-121 is the right spec for facilities operators who prioritize simplicity, low power consumption, and intuitive occupant experience in moderate-traffic access control zones. If you're managing a campus with dozens of doors or a multi-story office building with mixed-use floors, this handle enables you to right-size your access control node count and reduce the steady-state power draw per opening. Pair it with a 24VDC HES controller and standard frame hardware, and you have a bulletproof access control component that will operate reliably for 10+ years without field maintenance. Browse the HES catalog to explore complementary locking hardware and control systems.
