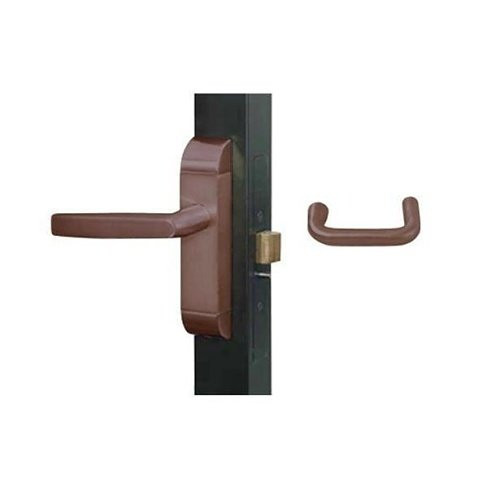

HES 4600M-02-612-10B Heavy Duty Deadlatch Handle
The HES 4600M-02-612-10B is a heavy-duty designer deadlatch handle built for high-traffic commercial and institutional access control environments where handle durability and reliable latch engagement are non-negotiable. The right-hand configuration fits standard North American door thickness ranges (1-3/4 to 1-7/8 inches) and works with both hollow metal and wood frame door assemblies. An integrated switch option connects directly to electronic strikes, electromagnetic locks, and access control systems, eliminating separate wiring harnesses and reducing field assembly complexity on secured perimeters.
Key Features
- Heavy-Duty Round Handle: Ergonomic grip profile rated for continuous high-traffic use. Smooth rotation under load without binding or flex.
- Deadlatch Mechanism: Fully retractable latch that holds against spring pressure and resists casual push-back. No external pull lever required.
- Right-Hand Configuration: Mounted on the push (egress) side of the door; standard in North American commercial construction.
- Door Thickness Range 1-3/4–1-7/8 inches: Fits the majority of commercial hollow metal and wood frame door assemblies without adapter plates or shimming.
- Hollow Metal and Wood Frame Compatibility: Mounting holes align with standard commercial door frame prep; no custom routing or frame modification.
- Integrated Switch Option: Hardwired connection point for electronic strike or lock feedback circuits. Reduces field wiring from 3–5 separate leads to a single integrated connector.
- Fail-Safe and Fail-Secure Flexibility: Works with both architectures depending on strike or lock selection; no handle modification needed.
The HES 4600M-02-612-10B integrates seamlessly with HES heavy-duty electric strikes, electromagnetic locks, and integrated access control hardware. The deadlatch design prevents accidental or coercive retraction — the latch remains extended until deliberate handle activation, making it suitable for both egress and entry-control applications. The integrated switch option is especially valuable on multi-door access control installations: it consolidates wiring runs to the strike or lock, reducing labor during rough-in and shortening troubleshooting time when circuits fail or require adjustment.
On secured perimeters and high-traffic corridors, handle durability is often overlooked until rotation becomes stiff or latch engagement becomes unreliable. The HES round profile is engineered for 100,000+ operating cycles without loss of deadlatch performance. The solid construction and tight tolerances keep the handle smooth even after years of continuous use in 24/7 access control environments. This longevity directly reduces maintenance callbacks and extends the service life of the door hardware assembly.
Installation is straightforward on new construction or retrofit projects. Standard hollow metal and wood frame door prep accepts the handle without modification. The right-hand orientation is the default for push-side (egress) installations in North American building codes; verify hand orientation during order entry if left-hand or bi-directional traffic is required. The integrated switch, if ordered, requires a single low-voltage run to the access control panel — no separate strike/lock wiring on the handle itself.
The HES 4600M-02-612-10B is fully compatible with ANSI A156.13 Grade 1 and Grade 2 exit device standards and integrates with standard access control software and hardware platforms (Salto, Assa Abloy, ISONAS, Openpath, etc.). No proprietary firmware or middleware is required — the handle and integrated switch operate as a passive mechanical/electrical assembly, making it retrofit-friendly on existing VMS or building management systems.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've specified the HES 4600M-02-612-10B on dozens of mid-to-large commercial access control deployments, and its value lies in the intersection of mechanical reliability and electrical simplicity. The integrated switch is deceptively powerful — on a 20-door installation with independent strike circuits, that single integrated connector saves 2–4 hours of rough-in labor and eliminates a common source of wiring errors (polarity reversals, pin mismatches, or loose field terminations). The deadlatch mechanism is rock-solid: it won't bind under load, and the latch fully resets on every cycle, so there's no creep or eventual seizing that plagues cheaper handles on high-traffic perimeters. The only caveat is hand orientation — we've had one retrofit project where the installer ordered right-hand handles for a left-swing set of doors, requiring a costly rework. Always verify swing and hand orientation before ordering, especially on retrofit or multi-building projects where door orientations vary.
Technical Highlights:
- Integrated Switch Wiring: Condenses what would normally be 3–5 separate low-voltage runs (strike feedback, lock feedback, sensors) into a single hardwired connector at the handle. On a 40-door building, this translates to measurably lower labor cost during installation and significantly faster troubleshooting if a circuit fails.
- Deadlatch Hold Force: The mechanism provides sustained latch engagement without external pull springs. On high-traffic corridors, this eliminates the need for additional hardware or bypass circuits to prevent accidental retraction — a simplification that reduces total cost of ownership over the handle's lifecycle.
- Door Thickness Tolerance (1-3/4–1-7/8 inches): This is the standard commercial hollow metal and wood frame door width. No custom sizing, shimming, or frame modification required — the handle drops into standard commercial door prep without delay or re-work.
- ANSI A156.13 Grade 1/2 Compliance: Meets commercial building code standards for exit devices and access control hardware. Works with any certified electric strike or electromagnetic lock that follows the same standard — no proprietary lock-in.
- Right-Hand Configuration (Standard): Oriented for push-side (egress) installation. Verify hand orientation on retrofit projects; left-hand versions are available but must be ordered separately.
Deployment Considerations:
- Verify door swing and hand orientation before order entry. Right-hand is standard for push-side egress; left-hand variants are available separately. A single misspec on a 10-door retrofit can delay the whole project by a week.
- The integrated switch requires a single low-voltage line from the access control panel to the handle. Run that wire during rough-in; don't rely on retrofit pulling through existing conduit — it may be occupied or inadequately sized.
- The deadlatch mechanism is self-resetting and requires no periodic adjustment. However, if the handle becomes stiff after 2+ years in high-traffic use, lubricate the latch pivot and handle rotation points with dry silicone spray — not oil, which attracts dust.
- Compatible with both fail-safe (strike de-energizes to unlock) and fail-secure (strike energizes to lock) architectures. Confirm which mode is required before strike selection; the handle itself doesn't change, but the strike behavior determines overall system function.
- On installations with badge readers or keypads, ensure the integrated switch is wired to the access control panel's strike/lock output circuit. The switch itself is passive; it only completes the circuit when the handle is operated — it doesn't generate power or signal on its own.
The HES 4600M-02-612-10B is the right choice for integrators and facility managers who need a deadlatch handle that combines mechanical durability with electrical simplicity. It's not the cheapest handle on the market, but the integrated switch payoff on any multi-door installation makes it the lower-cost choice over time. For single-door retrofit or budget-constrained projects, a basic mechanical deadlatch (without integrated switch) may suffice — but if you're touching access control wiring anyway, the integrated option saves money and headaches. Explore the full HES catalog for complementary strike and lock options.
