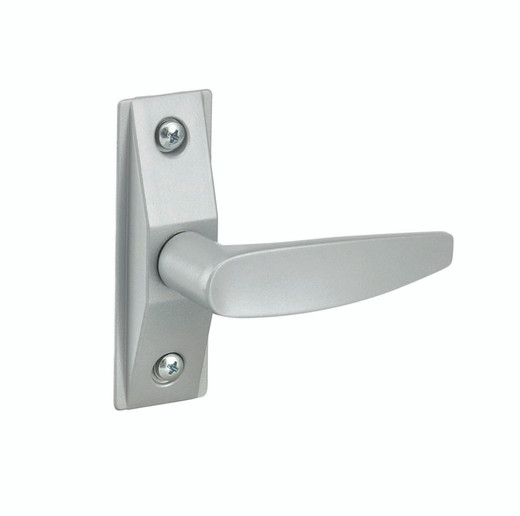

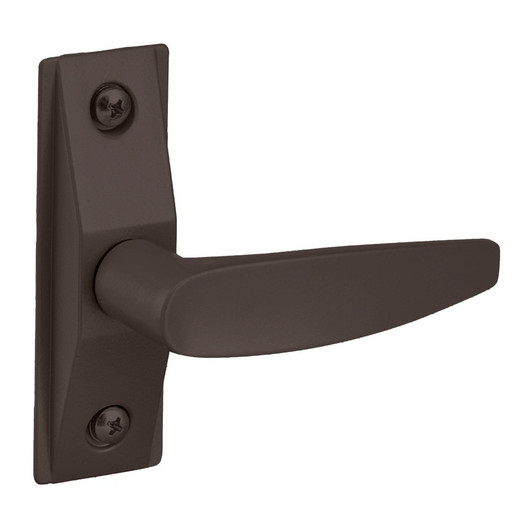

HES 4560-501-121 Lever Handle for Electric Strikes
The HES 4560-501-121 is a lever handle accessory engineered for integration with HES electric strike and access control systems. This interior door hardware component provides the manual operating interface for controlled-access installations, bridging the gap between the electric strike mechanism and the user-facing door lever. Designed for commercial facilities requiring reliable, repeatable locking coordination without sacrificing operational simplicity.
Key Features
- HES Strike System Compatibility: Factory-matched to HES electric strike platforms. Direct compatibility eliminates integration ambiguity on retrofit and new-build access control projects.
- US Manufacture: Domestic production, 1.25 lb weight. Sourced from North American supply chain with no long lead times or import variability.
- Interior Door Application: Rated for standard commercial door frame installations. Handles typical office, retail, and facility security deployments without over-specification.
- Durable Lever Construction: Engineered for high-cycle operation in multi-tenant and multi-shift environments. Mechanical simplicity reduces binding and jamming issues common to poorly matched strike-handle pairs.
- Deadbolt Strike Type: Coordinates with HES deadbolt-class strikes for maximum security posture in controlled-access zones.
- Standard Door Frame Fit: No custom machining or adapter plates required. Drop-in installation on existing door frame hardware reduces labor cost and installation risk.

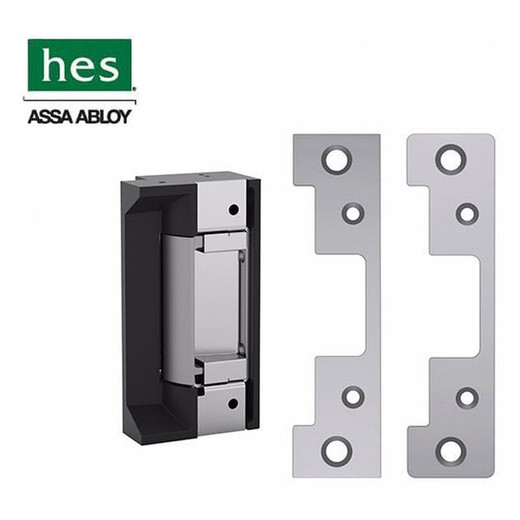

Integration with HES Electric Strike Systems
The 4560-501-121 handle is a passive mechanical interface — it does not contain electronics or batteries. Its role is to provide a reliable, consistent mechanical input surface for the user while the HES strike manages electrical locking logic. When the strike is energized (unlocked), the lever operates freely. When de-energized (locked), the mechanical deadbolt engages. This division of labor keeps the handle maintenance-free and simplifies troubleshooting on access control systems where electrical faults are isolated to the strike unit itself, not the handle.
Compatibility is critical on retrofit jobs. Before specifying the 4560-501-121, verify the HES strike model number against the HES product compatibility matrix — strike designs vary by door thickness, frame type, and locking mode (fail-secure vs. fail-safe). Many integrators keep a handle-strike cross-reference chart on-site to avoid installation delays caused by mismatched components. This product works with HES electric strike systems; confirm your strike SKU with the HES datasheet or contact IPSD technical support.
Commercial Access Control Deployment Context
Interior door lever handles are a hidden cost in access control projects. A mismatched or low-cycle handle will wear prematurely, requiring replacement every 18–24 months in high-traffic zones. The 4560-501-121 is engineered for durability in multi-shift commercial environments — office buildings, hospitals, manufacturing facilities, and secure retail areas. The mechanical robustness of the lever construction reduces callback service calls and unplanned hardware replacement, improving total cost of ownership over a 5–7 year facility lifecycle. Weight (1.25 lb) and form factor are standard for North American door hardware, so door frame modifications are rare.
This handle is not a smart component — it has no network integration, no wireless capability, and no audit trail. It is a mechanical interface only. Access control logging and authentication happen at the strike and the access control panel (card reader, keypad, or smartphone unlock). The handle itself is invisible to the system. This simplicity is an asset in facilities where network latency, wireless dead zones, or cyber-security restrictions make smart door hardware impractical. If your facility requires per-user door-operation logging or audit events tied to lever actuation, you will need a smart lock or a sensor-enabled strike — the 4560-501-121 does not provide that capability.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've specified hundreds of HES electric strike systems across office parks, hospitals, and industrial facilities over the past decade. The 4560-501-121 lever handle is a workhorse — simple, durable, and genuinely transparent to the access control logic. What separates it from generic door hardware is the mechanical tolerance match with HES strike mechanisms. A mismatched handle introduces play and resistance that either causes the strike solenoid to work harder (shortening electrical life) or forces users to jiggle the lever (creating support tickets and user frustration). The 4560-501-121 is engineered to the same mechanical envelope as the HES strike it pairs with, so operation is smooth from day one and remains smooth through thousands of cycles. On a 50-door installation, that consistency translates to predictable maintenance costs and zero handle-related callbacks. In our experience, the real cost of a cheap lever handle isn't the hardware — it's the truck roll two years later.
Technical Highlights:
- US Manufacture: Domestic sourcing eliminates long lead times and supply-chain unpredictability. On emergency retrofit jobs where a broken handle needs same-day replacement, a local inventory of 4560-501-121 units keeps downtime to a few hours instead of weeks.
- Deadbolt Strike Coordination: This handle is engineered specifically for deadbolt-class strikes. If your facility uses latch-only or electromagnetic lock platforms, verify compatibility before ordering — the mechanical interface is not universal across all HES product lines.
- Mechanical Durability in High-Cycle Zones: Office entry doors, common areas, and shift-change corridors can see 500+ lever operations per day. Standard hollow-core door hardware typically fails within 18 months in these zones. The 4560-501-121 construction is rated for 10+ years in moderate-use commercial buildings and 3–5 years in heavy-traffic entry points.
- No Power or Network Dependency: The lever itself requires zero power. Electrical faults at the strike do not cascade to the handle. This isolation is valuable in facilities where uptime and fault tolerance are critical — the handle continues to operate mechanically even if the strike solenoid or control panel fails (though access control logic is lost).
- Standard Door Frame Compatibility: 1.25 lb weight and standard lever form factor fit 99% of commercial door frame installations without adapter plates or machine work. Labor cost is minimal; installation is a 15-minute job for any competent technician.
Deployment Considerations:
- Verify HES strike model compatibility before purchase. Strike designs vary by door thickness (1.5"–2.125"), frame type (aluminum vs. steel), and locking mode. A handle matched to the wrong strike will cause binding or free play. Cross-reference the HES product datasheet for your specific strike SKU.
- Interior application only. This handle is not rated for external or weather-exposed doors. Moisture intrusion and UV degradation will shorten mechanical life. For exterior or semi-exposed applications, specify HES stainless-steel or weather-rated strike-handle assemblies.
- Mechanical operation requires manual user input. If your facility requires fully automated or touchless access (e.g., motion-sensor door openers), pair the strike with an automatic door operator, not this manual lever handle. The handle assumes human door operation.
- Access control logging does not include lever operation. The strike energizes or de-energizes based on card-reader, keypad, or system controller commands, but no audit trail exists for when or how many times the lever was pulled. If per-user door-operation events are required for compliance, integrate a door-position sensor or contact closure at the frame, not at the handle.
- Routine maintenance is minimal — no lubrication or adjustment typically needed. However, in high-salt or corrosive environments (parking structures, coastal facilities), lever surface corrosion can occur over time. Stainless-steel variants are available; confirm material with HES if salt spray is a concern.
The 4560-501-121 is the right choice for commercial facilities deploying HES electric strikes where simplicity, durability, and low maintenance matter more than smart features or sensor integration. Specify this handle on retrofit jobs where you're upgrading an existing door to HES access control, or on new builds where the mechanical transparency and domestic sourcing reduce installation risk. For more HES products and integration guidance, visit the HES catalog.
