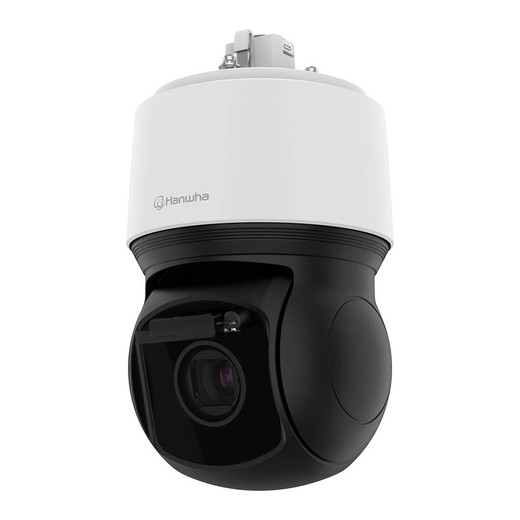

Hanwha XNP-C9303RW 8MP AI Tracking Outdoor PTZ Camera

Hanwha XNP-C9303RW 8MP AI Tracking Outdoor PTZ Camera with Wiper

The Hanwha XNP-C9303RW is a professional-grade outdoor PTZ (pan-tilt-zoom) IP camera engineered for wide-area surveillance in demanding environments where extended range, intelligent tracking, and round-the-clock reliability matter. With 8MP resolution at up to 60fps, a 30x optical zoom lens (5–150mm, F1.6–F4.56), and a 120dB wide dynamic range, this camera delivers precise detail across extreme lighting transitions—a critical requirement in backlit or mixed-light scenes common at perimeters, ports, and city surveillance networks.

Key Features

• 8MP Resolution & Framerate: 8MP (3840×2160) at full resolution, up to 60fps at maximum clarity. At smaller resolutions down to 320×240, framerates scale accordingly, giving you flexibility to balance bitrate against image quality in storage-constrained deployments.
• 30x Optical Zoom with Extreme Magnification: The 5–150mm motorized lens provides 30x optical magnification paired with an additional 32x digital zoom for 960x total magnification. Practical benefit: identify faces or license plates across stadium-sized areas without sacrificing optical sharpness.
• Extreme WDR (120dB): Wide dynamic range processing maintains color and detail in scenes with bright skies and dark foreground, or vice versa. 120dB is upper-tier for PTZ cameras—you'll preserve license plate legibility even when a subject moves from shadow into direct sunlight, reducing the need for manual exposure tuning.
• Wise IR 200 Meters: Built-in infrared illumination extends to 200 meters (656 feet) with zero-lux nighttime capability. For reference, 200m IR reaches roughly two football fields end-to-end—practical for perimeter or large parking-lot surveillance where additional lighting infrastructure isn't available.
• AI-Powered Auto-Tracking: Person and Vehicle detection with automatic target lock keeps detected subjects centered in the frame, reducing the need for a human operator to manually follow movement. Virtual line crossing, directional detection, and area intrusion analytics are also on-device, reducing backend processing load.
• 360° Endless Pan with Preset Accuracy: The camera pans continuously through 360° at speeds up to 500°/sec (tilt up to 350°/sec), with preset accuracy to ±0.1°. You can define up to 300 presets and chain them into automated tours, swings, or trace patterns for unmanned round-the-clock coverage across multiple points of interest.
• Wiper & Lens Heater for All-Weather Operation: Integrated mechanical wiper clears rain, snow, and debris; the lens heater prevents fogging and condensation. These features eliminate a common hidden cost: manual site visits to clean outdoor camera lenses in harsh climates.
• H.265 Compression: H.265 codec cuts bandwidth and storage consumption roughly 40–60% versus H.264, depending on scene complexity. Across a 24/7 multi-camera installation, this translates to meaningful reductions in NVR storage and network overhead.
• PoE++ (IEEE 802.3bt Class 6): Draws typical 26W via Power over Ethernet, eliminating the need for separate power infrastructure at the camera. Class 6 PoE++ is widely supported on modern managed switches and PoE injectors.
• IP66 & IK10 Ratings with NEMA 4X Certification: IP66 means the camera withstands direct rain and dust. IK10 impact resistance protects against vandalism. NEMA 4X adds corrosion resistance—important near salt water, chemical environments, or high-abuse locations.

Integration & Compatibility

The XNP-C9303RW supports IP cameras standards including IPv4/IPv6, ONVIF Profile S/G/T/M for broad VMS integration, MQTT, HTTP/HTTPS, RTSP, and DDNS for remote access. Security features include TPM with FIPS 140-2 Level 2, 802.1X authentication, secure boot, and signed firmware—standard expectations for critical infrastructure deployments. The camera supports 10 streaming profiles simultaneously and can handle up to 128 concurrent users via multicast.

Edge storage via dual microSD/SDHC/SDXC slots (up to 1TB total) provides local video backup independent of network connectivity. Motion detection includes 8 independently configurable zones with 8-point polygonal masking and 32 privacy mask areas (color or mosaic), essential for complying with privacy regulations in mixed-use environments.

Physical & Environmental Specifications

The dome is aluminum and polycarbonate construction available in white (RAL9003) or black (RAL9005). Operating temperature range is –40°C to +55°C with humidity control via integrated AIR sheet—suitable for outdoor deployment from arctic to desert climates. The combination of wiper, heater, and robust thermal design means you don't need heated housings or secondary enclosures in most environments, simplifying installation cost.

Deployment Applications

Ideal for city surveillance networks, airport perimeters, port and dock monitoring, highway traffic corridors, critical infrastructure protection, large university campuses, and commercial properties where long-range identification and unmanned intelligence-driven tracking reduce labor while maintaining forensic detail. The 30x optical zoom and AI tracking are particularly valuable in open-area surveillance where subject distance varies widely.

Frequently Asked Questions

Q: What's the practical maximum distance at which the XNP-C9303RW can identify a face?

A: Identification-level detail (sufficient for forensic analysis or suspect correlation) depends on sensor sensitivity, lens aperture, and lighting. At night with IR, the 200m range provides detection and tracking but not necessarily identification across the full distance. In daylight with the 30x optical zoom, face-level detail is achievable at roughly 50–100m depending on subject cooperation and background contrast. Always conduct a site survey with the actual lens and lighting conditions to confirm identification requirements.

Q: Does the XNP-C9303RW work with Milestone XProtect or other mainstream VMS platforms?

A: Yes. The camera supports ONVIF Profile S, G, T, and M, which are the standards that Milestone, Genetec, and other enterprise VMS platforms use for integration. Integration is plug-and-play; you'll need to confirm driver availability for PTZ-specific controls (pan, tilt, zoom presets) with your VMS vendor, but video streaming and analytics will work out of the box.

Q: Is the XNP-C9303RW NDAA Section 889 compliant?

A: Hanwha is a South Korean manufacturer. If NDAA compliance or U.S. supply-chain restrictions are a requirement for your project, consult your procurement team and the system integrator. This specification is not covered in the available product evidence.

Q: How much storage do I need for 24/7 continuous recording from the XNP-C9303RW?

A: Bitrate depends on resolution, framerate, and codec. At 8MP, 30fps H.265, expect roughly 8–15 Mbps depending on scene complexity. For 7-day retention on a single camera, budget approximately 600GB–1.3TB of NVR or edge storage. The camera's dual microSD slots (up to 1TB total) provide local backup; pair with a networked NVR for longer-term archival and redundancy.

Q: Can I power the XNP-C9303RW from a standard PoE+ switch?

A: No. The XNP-C9303RW draws up to 26W typical, which exceeds the 30W budget of IEEE 802.3at (PoE+). You'll need an IEEE 802.3bt Class 6 PoE++ injector or a managed switch with PoE++ ports. Verify your switch or injector datasheet before installation.

Q: What's the warranty on the XNP-C9303RW?

A: Warranty terms are not specified in the available product documentation. Contact the manufacturer or your specialty reseller for warranty details and support terms.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNP-C9303RW represents Hanwha's mature PTZ platform with practical AI integration. The 30x optical zoom paired with extreme 120dB WDR directly addresses the primary challenge in outdoor PTZ deployments: maintaining usable detail across extreme lighting transitions. The 200-meter IR range and wiper/heater combination make this a genuine 24/7 outdoor camera in harsh climates—uncommon in this class, and worth the PoE++ power budget.

Technical Highlights:

• 120dB WDR: Processes backlit and high-contrast scenes without manual tuning. Practical impact: if your subject walks from shadow into direct sun, you don't lose license plate or facial detail. This spec alone saves hours of site commissioning and avoids failed forensic requests.
• 8MP @ 60fps with H.265: 60fps at full 8MP resolution is uncommon in the PTZ class. H.265 cuts the bitrate footprint in half compared to H.264—meaningful when storing weeks of continuous recording on a single NVR or when bandwidth is constrained on remote links.
• 200m IR + integrated wiper: The combination eliminates two common deployment headaches: extra lighting infrastructure and monthly lens-cleaning visits. The gyro-stabilization during rapid pan/tilt (500°/sec pan, 350°/sec tilt) keeps video steady during fast tracking.
• AI auto-tracking for Person and Vehicle: On-device detection reduces load on your VMS backend and enables real-time tracking without a dedicated operator. Virtual line crossing and area intrusion analytics run locally, so you get actionable alerts regardless of network health.

Deployment Considerations:

• PoE++ (Class 6) is mandatory—26W typical draw exceeds PoE+ capacity. Audit your switch or injector specs before ordering; budget upgrade costs if needed.
• The 1/2.8" CMOS sensor with 0.1 Lux color sensitivity (F1.6, 1/30sec) is strong, but in ultra-low-light scenes (< 0.05 Lux), IR mode dominates. Test nighttime performance on your specific site before final acceptance.
• 360° endless pan is useful for unmanned tours, but mechanical wear on pan/tilt mechanisms increases with heavy duty cycles. Monitor preset accuracy drift in 24/7 deployments over 12–24 months.

Position the XNP-C9303RW for city surveillance networks, airport perimeter monitoring, and large commercial sites where zoom range and unmanned AI tracking justify the PoE++ infrastructure cost. It's not a plug-and-play analog-replacement camera; it's a network-native intelligent platform. Pair it with a capable NVR and confirm PoE++ switch capacity early in the design phase.
