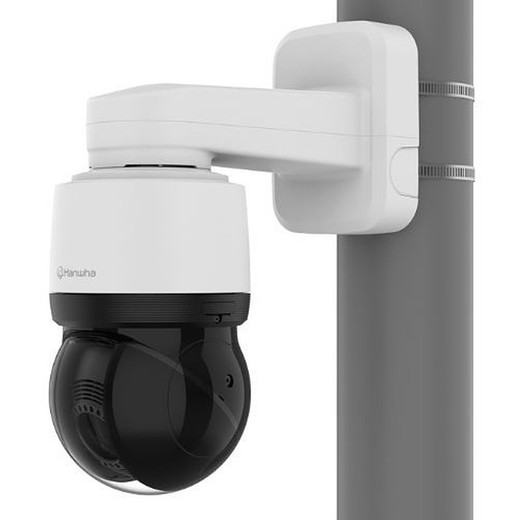

Hanwha XNP-C8253R 6MP AI Tracking PTZ Outdoor IP Camera

Hanwha XNP-C8253R 6MP AI Tracking PTZ Outdoor IP Camera

Overview

The Hanwha XNP-C8253R is a 6MP outdoor PTZ (pan-tilt-zoom) network camera built for demanding surveillance applications where coverage span and intelligent tracking matter. The camera pairs a 25x optical zoom lens with on-camera AI analytics, extensive IR reach, and rugged IP66/IK10 construction — all delivered over a single PoE connection. This positions it squarely in the mid-to-large-campus segment: parking structures, perimeter fencing, roadway corridors, and industrial sites where you need both wide situational awareness and the ability to zoom into detail without pixelation or loss of frame rate.

The XNP-C8253R (often searched as XNP C8253R) runs the Hanwha Wisenet 7 chipset, which enables onboard AI for object detection and auto-tracking. That means the camera can identify and follow people and vehicles automatically, without forcing your VMS or recording appliance to do the heavy lifting. H.265 compression cuts bitrate and storage demand roughly in half versus H.264 on equivalent scenes — a material cost factor on 24/7 multi-camera systems. The camera supports dual memory slots (microSD, up to 512GB × 2) for local edge recording, valuable if your network link fails or during scheduled maintenance windows.

Key Features

• 6MP Resolution: Captures 2592 × 1944 pixel frames across wide and zoomed views, delivering enough pixel density for license plate OCR and facial recognition at moderate range.
• 25x Optical Zoom (4.25–170mm): Continuous glass zoom without digital interpolation preserves image sharpness as you pan and track. A 25x lens eliminates the need for multiple fixed cameras across large open areas, reducing cabling, PoE port count, and NVR throughput — real TCO wins.
• 200-Meter IR Illumination: Infrared coverage out to 656 feet in full darkness enables nighttime monitoring of perimeter fences, loading docks, and roadways. Paired with lens heater and spin-dry mechanics to shed water and snow, the camera maintains visibility in wet or freezing conditions without manual intervention.
• Extreme WDR (Wide Dynamic Range): Handles scenes with mixed bright sunlight and deep shadow in a single frame — think stadium entrances, toll booths, or warehouse bay doors. Extreme WDR preserves detail in both the bright exterior and dark interior simultaneously, reducing the need for supplemental lighting or repositioning.
• AI Object Detection & Auto-Tracking: Wisenet 7 chipset recognizes people and vehicles, then auto-tracks moving subjects without your manual pan-tilt intervention. Target lock maintains focus even as subjects move across the field of view. Reduces false alarms from weather, vegetation, or passing clouds.
• Advanced Video Analytics (IVA): Virtual line crossing, area entrance/exit, loitering detection, direction analysis, and intrusion alerts run on-camera. Defocus, motion, tampering, fog, and audio detection also supported — actionable intelligence without VMS licensing overhead.
• 360° Endless Pan & -20° Tilt Look-Up: Full continuous horizontal rotation and -20° tilt capability (looking up at rooflines, helicopters, or ceiling-mounted hardware) without mechanical limits or cable twist. Enables uninterrupted patrol sweeps and rapid repositioning.
• IP66 / IK10 / NEMA 4X Rating: Withstands direct rain, dust ingress, and impact (IK10 = 20J vandal strike). NEMA TS-2 compliance adds vibration and shock tolerance — suitable for mounting near traffic, rail lines, or manufacturing equipment. Temperature operating range -40°C to 60°C keeps performance stable in arctic or desert deployments.
• H.265 + WiseStream III: Dual compression codecs reduce file sizes 40–60% versus H.264 on the same scene. Translates directly to lower bandwidth on the network link, reduced NVR/server storage, and longer retention on fixed budgets.
• PoE (802.3af Compliant): Draws under 13W nominal (peak ~25W during zoom/tracking), compatible with standard 802.3af switches. No separate 12VDC supply rail needed. Simplifies rack power budgeting and reduces field cabling.
• Dual microSD Slot (512GB × 2 max): On-camera edge storage for failover recording. Useful during WAN outages or for time-lapse / forensic export without taxing the central NVR.
• TPM 2.0 + FIPS 140-2 Level 2: Hardware-backed cryptography and secure boot prevent firmware tampering and credential theft — important for regulated environments (finance, government, healthcare, critical infrastructure).

Integration & Compatibility

ONVIF Profile S/T/G support ensures plug-and-play integration with NVRs, VMS platforms (Milestone, March Networks, Genetec), and third-party management software. Hanwha's own SmartVMS and WiseNet Platform natively expose Wisenet 7 analytics without additional plug-ins. PoE power delivery and dual compression codecs make the XNP-C8253R compatible with most existing enterprise PoE network switches, though high-bandwidth environments (4K or multiple 25x PTZs on the same link) may require switch uplinks rated 10 Gbps or higher. The outdoor PTZ camera category emphasizes lens range and tracking speed; this model trades raw frame rate for optical reach and analytics depth, making it suitable for campuses and industrial sites rather than sports stadiums or concert venues.

When to Choose a Different Model

If your deployment is indoors in a controlled environment (warehouse floor, retail corridor), consider a smaller Hanwha varifocal or fixed-lens model — the XNP-C8253R's extreme WDR and IR overspec. If you need 8MP or higher resolution for ultra-long-range facial recognition or fine forensic detail, check Hanwha's higher-megapixel PTZ offerings in the same Wisenet 7 family. If pan speed and frame rate are critical (sports, live broadcast), a dedicated high-speed PTZ may better suit your latency and motion continuity requirements. If your budget is tightly constrained, fixed-lens 6MP models in the Hanwha outdoor line deliver comparable resolution and durability without the complexity and cost of motorized optics.

Frequently Asked Questions

Q: What is the maximum PoE power draw for the XNP-C8253R?

A: The camera operates nominally around 13W via standard 802.3af PoE. Peak draw during full-speed pan, tilt, and zoom can reach approximately 25W. This makes it compatible with 802.3at PoE+ switches to ensure margin; confirm your switch's available wattage before deploying multiple units.

Q: Can the XNP-C8253R auto-track in low light or at night?

A: Yes. The Wisenet 7 chipset performs object detection and auto-tracking even in IR mode. The 200-meter IR illumination enables tracking in full darkness, though tracking confidence may decrease at extreme range (>150m) where IR intensity drops.

Q: Does the XNP-C8253R support ONVIF?

A: Yes, the camera is ONVIF Profile S, T, and G compliant. This ensures compatibility with major third-party VMS platforms including Milestone XProtect, Genetec Clearance, and March Networks.

Q: What is the storage capacity for on-camera recording?

A: The XNP-C8253R includes two microSD card slots, each supporting up to 512GB, for a maximum of 1TB local edge storage. This allows 24/7 failover recording or time-lapse archiving without relying on the central NVR.

Q: Is the XNP-C8253R suitable for outdoor use in freezing climates?

A: Yes. The integrated lens heater and spin-dry mechanism remove water and snow accumulation. Operating temperature range is -40°C to 60°C (-40°F to 140°F), and IP66 protection handles snow load and ice melt runoff. Verify mounting bracket de-icing provisions if ice build-up on the dome is a concern.

Q: What compression formats does the XNP-C8253R support?

A: The camera supports H.265 and H.264 (selectable per stream), plus MJPEG for compatibility with legacy systems. H.265 typically reduces file size 40–60% versus H.264 on the same bitrate, translating to longer retention on fixed storage budgets.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Hanwha XNP-C8253R hits a practical sweet spot for mid-to-large outdoor surveillance where you need optical reach without constant manual repositioning. The 25x zoom lens paired with Wisenet 7 auto-tracking cuts the operational burden significantly — the camera recognizes and follows subjects on its own, which is why it's popular in perimeter security and parking structure deployments where staffing is lean.

Technical Highlights:

• 25x Optical Zoom (4.25–170mm): Eliminates pixelation when zooming and removes the need for 4–5 fixed cameras across large open areas. Real deployment win is reduced cabling runs, PoE port consumption, and storage overhead — a 25x PTZ often costs less to install and operate than three or four fixed 2MP/4MP cameras covering the same footprint.
• 200-Meter IR + Lens Heater: The combination is critical for unattended outdoor operation. IR reach of 656 feet covers most parking lots and perimeter fences; the lens heater prevents condensation and snow adhesion that would otherwise blind the camera in wet or freezing conditions. This is not optional in North American or European climates above 40°N latitude.
• H.265 + WiseStream III Dual Codec: Reduces bandwidth consumption 40–60% versus H.264 on the same video quality. On a 24/7 100+ camera network, this translates to NVR storage savings of several terabytes per month — measurable in dollars when you're planning 2–3 year retention.
• Wisenet 7 On-Camera AI: Object detection, auto-tracking, and IVA (line crossing, loitering, area intrusion) run at the edge, not the VMS. Reduces upstream bandwidth, VMS CPU load, and licensing overhead for third-party analytics engines. For integrators, this means fewer ancillary software subscriptions.

Deployment Considerations:

• PoE Power Budget: Peak draw during simultaneous pan, tilt, zoom, and IR is ~25W. Nominal is 13W. If you're stacking 8–10 PTZs on the same PoE switch, allocate 250W minimum; standard 48-port PoE switches typically provide 375–480W total, so plan carefully. PoE+ (802.3at) strongly recommended for margin.
• Zoom vs. Latency Trade-Off: The XNP-C8253R is not a high-speed PTZ designed for live sports or concert surveillance. Pan and tilt speeds are moderate; zoom movements add latency. If your use case demands rapid ballistic pans or frame-by-frame tracking of fast-moving vehicles at distance, a dedicated high-speed preset PTZ may be a better fit.
• Mounting & Cable Routing: The 25x zoom lens and IR illumination make the camera front-heavy and generate heat during IR operation. Use a robust adjustable bracket rated for at least 5kg, and ensure the bracket's pivot points are corrosion-resistant (stainless or nylon bushings). Cable runs >100m may require PoE extenders or managed switches with extended range support.
• microSD Card Dependency: The dual 512GB microSD slots are a failover convenience, not a feature. microSD cards have finite write endurance; repeated 24/7 recording will exhaust them in 12–18 months on budget models. Budget for annual replacement, or rely on them only for edge buffering during WAN outages.

The XNP-C8253R is the default choice for warehouse perimeter sweeps, multi-building campus monitoring, and road-facing traffic enforcement where you need zoom reach and automated tracking without the complexity of manually operated PTZs or the cost of multiple fixed lenses. It is not the right answer if your facility has mostly indoor corridors, tight hallways, or requires extreme resolution for facial recognition at >30 meters. For those, evaluate Hanwha's 8MP or 12MP fixed-lens compact models, or consider a higher-megapixel Wisenet variant in the same family.
