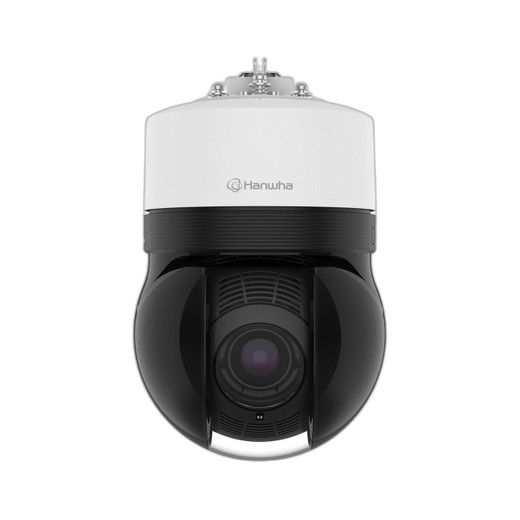

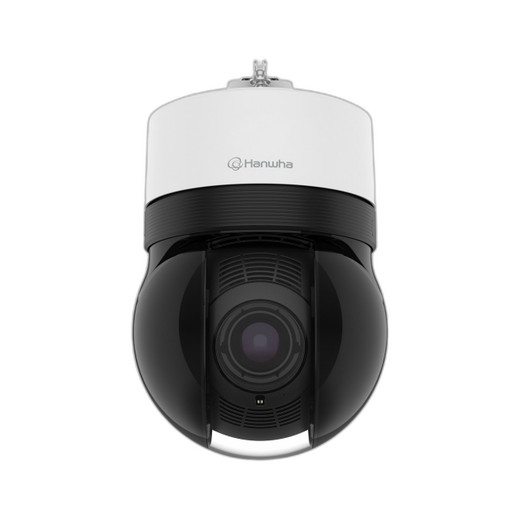

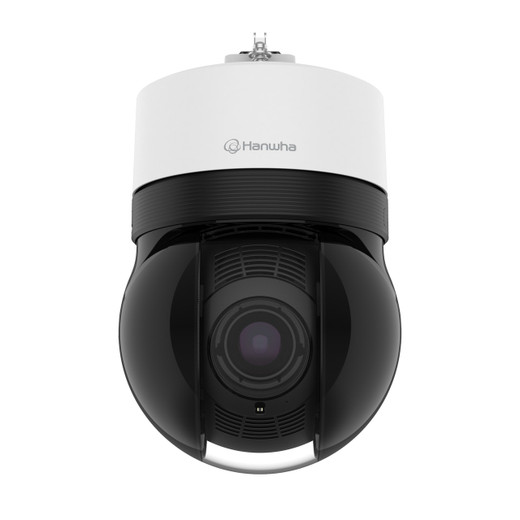

Hanwha XNP-C9310R 8MP AI IR PTZ Network Camera

Hanwha XNP-C9310R 8MP AI IR PTZ Network Camera

Overview

The Hanwha XNP-C9310R (often searched as XNP C9310R) is a full-featured PTZ engineered for 24/7 surveillance of large, open environments — airports, transportation hubs, stadiums, perimeter security, and infrastructure sites where extended range and rapid target acquisition matter. The combination of 8MP 4K resolution, 31x optical zoom reaching 214.7mm, and 250m IR illumination delivers the reach needed to identify detail across sprawling areas without requiring multiple fixed cameras. Build quality meets IP66/IP67 and IK10 impact standards, so weather and vandalism won't take it offline. AI-powered on-camera analytics (object detection, vehicle classification, face detection) reduce server load and enable edge-based alerting — useful when you need fast response to perimeter breach or traffic violation events.

Key Features

• 8MP 4K resolution (3840×2160) on a 1/1.8" CMOS sensor — captures enough detail from distance that you can read license plates or identify personnel at 100+ meters. At typical PTZ installation heights, this eliminates the need for secondary fixed cameras to verify PTZ detections.
• 31x optical zoom (6.91–214.7mm focal length) — wide-angle framing at 6.91mm for situational awareness, then continuous optical zoom to 214.7mm for magnified forensic capture. Digital and total zoom extend this further, but optical zoom preserves image sharpness when it matters most.
• Wise IR 250m infrared illumination (850nm) — covers 820 feet in darkness with minimal washout on reflective surfaces. Lens heater and spin-dry water removal keep optics clear in rain and frost, so IR performance doesn't degrade during weather events.
• Endless 360° pan with 110° tilt range — full hemispherical coverage without blind spots. 550°/sec preset speed and ±0.07° repeat accuracy mean automated patrol patterns stay consistent shift to shift. 300 programmable presets support complex tour sequences, swing moves, and group configurations.
• H.265 + H.264 + MJPEG compression with WiseStream II/III adaptive bitrate — H.265 cuts file size roughly 40–50% versus H.264 at equivalent quality, reducing storage and bandwidth load on 24/7 multicamera NVR deployments. Adaptive bitrate holds steady frame rate even when network congestion spikes, important in crowded venues with many concurrent viewers.
• AI analytics: object detection, classification, and event triggers — on-camera person/face/vehicle/license-plate recognition reduces false alarms by running detection at the edge before sending events to NVR or VMS. DetectionShot captures high-res stills of detected objects for evidence documentation without cluttering video archive.
• HPoE (IEEE 802.3bt Type 4) power delivery — a single Ethernet run supplies full operational power (up to ~95W budget) plus data. Eliminates separate 12VDC power supplies and reduces conduit/labor at installation. Verify your PoE switch supports Type 4 before spec'ing infrastructure.
• Advanced WDR (120dB), WiseNR II noise reduction, and digital stabilization — 120dB wide dynamic range handles backlit scenes (e.g., subject in front of bright sky or window) without losing detail in shadows. Noise reduction preserves detail in low light without excessive blur. Stabilization smooths video when PTZ motors are moving or mounting vibration occurs.
• IP66/IP67 weatherproof + IK10 impact resistance — IP66 blocks dust and direct rain; IP67 (full submersion to 1m for 30 min) is overkill for outdoor mounting but occasionally encountered on brackets. IK10 means the camera survives ball-drop and impact tests — relevant if mounted in accessible/vandalism-prone areas.
• Full IPv4/IPv6, ONVIF Profile S/G/T/M compliance — integrates with any ONVIF-compliant VMS (Milestone XProtect, Genetec, i-Lite, etc.) or direct RTSP pull. Hanwha open APIs support deeper integration if needed.

Integration & Compatibility

Network Architecture: The XNP-C9310R streams up to 10 concurrent profiles, supporting 20 simultaneous unicast + multicast users without encoder bottleneck. Dual microSD slots (up to 1TB total) enable autonomous local recording during WAN outages — useful for remote/outdoor sites. MQTT support ties into IoT frameworks.

Security & Compliance: Secure boot, signed firmware, TPM 2.0 with FIPS 140-2 Level 2 certification, 802.1X network authentication, HTTPS/SRTP encrypted communication, and full user access auditing address enterprise compliance and tabletop cybersecurity reviews. No backdoors documented, compliant with typical DoD/CISA hardening guidance.

Operational Range: Rated -50°C to +74°C (-58°F to 165°F) and 0–95% humidity. Cold-climate lens heater and tropical-rated components keep it functional in industrial/warehouse environments where HVAC may not reach.

Auto-Tracking: Person and vehicle auto-tracking reduce operator workload — useful during high-traffic events or when monitoring perimeter without dedicated staff. Not a replacement for scheduled tour sequences, but a force multiplier during live monitoring.

Deployment Fit

Choose the XNP-C9310R when you need single-camera coverage of 200+ linear feet with day/night clarity, or when fixed-camera farms create maintenance / licensing overhead. Avoid it if your scene is smaller than 100 feet wide (overspecced and wasteful) or if you need IP cameras in a ceiling-dome enclosure (PTZ requires clear sightline and room to rotate). For applications like parking structure perimeter, runway/taxiway monitoring, or stadium seating areas, this model often replaces 3–4 fixed cameras, lowering total installed cost and NVR channel count.

Frequently Asked Questions

Q: Does the XNP-C9310R support Milestone XProtect and Genetec?

A: Yes. ONVIF Profile S/G/T/M compliance ensures seamless integration with any major VMS. Hanwha open APIs provide additional integration hooks if needed.

Q: What's the maximum power draw, and will standard PoE+ handle it?

A: HPoE (IEEE 802.3bt Type 4) is required. Standard PoE+ (802.3at, ~30W) is insufficient. Verify your switch supports Type 4 (90W budget) before deployment.

Q: Can the XNP-C9310R record locally if the network goes down?

A: Yes. Dual microSD slots (up to 1TB total) with partition encryption enable edge recording during network outages. Alarm triggers via analytics or network events initiate FTP/email uploads when connectivity restores.

Q: What infrared range should I expect in real-world conditions?

A: Wise IR rated 250m (820 ft) in optimal darkness on non-reflective surfaces. Reflective pavement or rain can reduce effective range by 20–30%. Lens heater prevents IR washout in frost.

Q: Is the XNP-C9310R NDAA/TAA compliant?

A: No evidence in the manufacturer specs indicates NDAA Section 889 or TAA compliance. Verify with your procurement team if that's a contract requirement.

Q: What compression formats does it support?

A: H.265, H.264, and MJPEG with adaptive bitrate (WiseStream II/III). H.265 cuts storage ~40–50% versus H.264 — significant on 24/7 multicamera recorders.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNP-C9310R lands squarely in the professional PTZ space — it's the right choice when you need genuine optical zoom reach (31x is real magnification, not digital padding) and reliable 24/7 low-light performance without sacrificing image quality. The 250m IR range and 8MP sensor work together to solve a persistent problem: fixed cameras miss the wide context, PTZs miss the detail. This model uses zoom and AI to capture both in one unit, which cuts camera count and licensing burden on smaller NVR deployments.

Technical Highlights:

• 31x optical zoom + 8MP resolution: You can frame wide-angle (6.91mm) for situational awareness, then zoom continuously to 214.7mm to read a license plate or identify a face 100+ meters away — without switching cameras or losing sharpness. Preset accuracy of ±0.07° means automated patrols repeat identically, critical for forensic review.
• H.265 compression + WiseStream adaptive bitrate: On a 24/7 four-camera PTZ array, H.265 saves roughly 40–50% in storage versus H.264 — that's 1–2 TB per month you don't need to buy. WiseStream holds frame rate steady even if bandwidth spikes during peak traffic or live multi-view playback.
• HPoE Type 4 requirement: Single Ethernet run eliminates separate 12VDC supplies and conduit clutter, but forces you to verify switch capacity before spec'ing. A single HPoE switch port (~90W budget) won't power multiple cameras — plan accordingly.
• Dual microSD local recording (1TB total) + edge analytics: Person/vehicle detection runs on the camera itself, not the NVR — means you get alerts even if the network drops, and you don't flood the NVR with false positives from every moving shadow.
• IP66/IP67 + IK10 rating: Dust and rain won't degrade performance, and the IK10 impact rating handles accidental bumps or deliberate vandalism attempts. Operating range -50°C to +74°C keeps it functional in unheated warehouses or tropical climates.

Deployment Considerations:

• PTZ motion is not silent: Pan/tilt motors will be audible if the camera is mounted near occupied spaces. Account for this in design reviews.
• HPoE switch availability: Not every commodity PoE switch supports 802.3bt Type 4. Budget infrastructure time to source or upgrade your switch.
• IR range degrades on reflective surfaces: The 250m spec assumes dark, non-reflective terrain (asphalt, soil). Concrete, light-colored pavement, or rain can cut effective range by 20–30%.
• Auto-tracking is a force multiplier, not a replacement: Useful during live monitoring or high-traffic events, but scheduled tour sequences remain the workhorse for unattended surveillance.

Deploy the XNP-C9310R at perimeter gates, runway/taxiway approaches, parking structure entries, or large open venues where a single camera must cover 200+ linear feet and deliver forensic-grade detail on demand. It outperforms fixed-camera farms in cost-per-square-foot coverage and operational flexibility — but only if you have clear sightlines and the network infrastructure to support HPoE.
