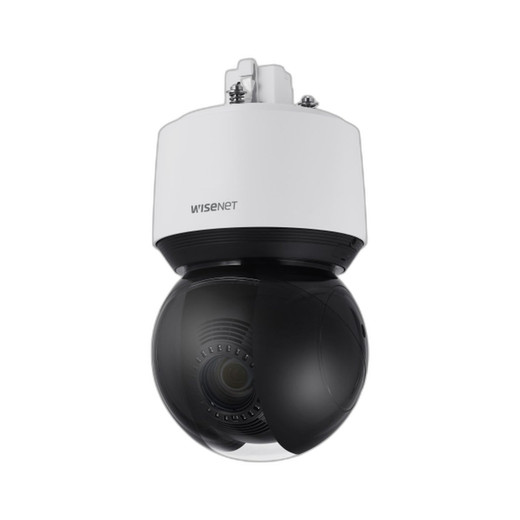

Hanwha XNP-9250 4K AI PTZ Network Camera

Hanwha XNP-9250 4K AI PTZ Network Camera

The Hanwha XNP-9250 is a premium 4K PTZ network camera engineered for large-scale surveillance applications requiring exceptional detail capture and intelligent analytics. With 8MP 4K resolution, 25x optical zoom (32x digital, 800x total magnification), and extreme 120dB WDR, this camera excels in challenging lighting conditions while delivering crystal-clear imagery across expansive areas. Advanced AI analytics, robust weather/impact protection, and flexible streaming options make it ideal for critical infrastructure, transportation hubs, stadiums, and enterprise perimeter security.

Key Features

• 8MP 4K resolution (3840×2160) with 25x optical zoom and 32x digital zoom (800x total)
• 360° endless pan, 110° tilt range with 700°/sec and 500°/sec max speeds respectively
• Extreme WDR (120dB) with multiple backlight compensation modes for high-contrast environments
• AI-powered analytics: object/person/vehicle detection, facial recognition, loitering, tampering, virtual line crossing, and shock detection
• Auto-tracking for persons and vehicles with target lock capability
• Triple codec support: H.265/H.264/MJPEG with WiseStream II intelligent bandwidth optimization
• IP66/IK10 certified for harsh outdoor conditions; NEMA4X and NEMA-TS 2 compliant
• Digital image stabilization with built-in gyro sensor for steady footage in adverse conditions
• Dual SD/SDHC/SDXC card slots (up to 2TB total) for local edge storage
• PoE+ powered for simplified installation and deployment

Technical Specifications

• Imaging: 1/2.8" CMOS sensor, F1.6–F3.73 aperture, 0.1 Lux (color) / 0.01 Lux (B&W) minimum illumination
• Video Performance: Up to 30fps H.265/H.264 or MJPEG; 10 concurrent streaming profiles (20 unicast / 128 multicast users)
• Zoom & Optics: 5–125mm focal length; 57.42° to 2.71° horizontal FOV; ±0.1° preset accuracy; 300 presets with swing, group, trace, and tour sequences
• Illumination Modes: Color, black & white, auto ICR day/night switching, scheduled switching
• Motion & Privacy: 8-zone polygonal motion detection; 32 privacy masks with color and mosaic options
• Connectivity: Ethernet (10/100BASE-T); IPv4/IPv6, RTSP, HTTP/HTTPS, DHCP, DDNS, SNMP v1/v2c/v3, ONVIF Profiles S/G/T, SUNAPI
• Security: 802.1X authentication, SSL/TLS encryption, device certificates, IP filtering, digest login, user access logging
• Storage & Processing: 4GB RAM, 512MB Flash; supports microSD card recording at event triggers via FTP/email
• Environmental: Operating range -40°C to +55°C; storage -50°C to +60°C; up to 95% RH (non-condensing)
• Power: PoE+ (IEEE 802.3at, Class 4); typical 20W, maximum 25W
• Physical: 158mm diameter × 293.3mm height; 3.2 kg; white/black color; hard-coated polycarbonate dome
• Detect/Recognize Range: Wide 140.2m / Tele 3,246.9m (detect); Wide 28m / Tele 649.4m (recognize)

Applications

Ideal for perimeter security of critical infrastructure, transportation and logistics facilities, large parking areas, sports venues, city surveillance systems, industrial complexes, and enterprise campuses. The combination of 4K detail, intelligent analytics, extreme zoom, and rugged weatherproof design makes it suited for scenarios requiring both wide-area monitoring and identification-level detail capture at extended distances.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNP-9250 represents a mature PTZ platform optimized for large-scale outdoor surveillance. Its 800x total zoom (25x optical plus 32x digital) is exceptional for perimeter and long-range monitoring, while the extreme 120dB WDR ensures usability in challenging mixed-light environments. The inclusion of H.265 codec and WiseStream II addresses bandwidth constraints in multi-camera deployments without image quality compromise.

The AI analytics suite is comprehensive and well-integrated: directional detection, appearance/disappearance, loitering, virtual line, and shock detection support both security and operational workflows. Auto-tracking with person/vehicle classification enables proactive response rather than reactive review. The gyro-stabilized DIS is particularly valuable in exposed mounting locations subject to wind or vibration.

Build quality is enterprise-grade: IP66/IK10 certification, NEMA4X compliance, and -40°C operational minimum enable true all-climate deployment. PoE+ power consolidation simplifies installation in remote or difficult-to-wire locations. Dual microSD slots (up to 2TB) provide reliable local backup independent of network health, critical for mission-critical surveillance.

Considerations include the 3-meter minimum focus distance (limiting close-range detail) and the requirement for a separate I/O box (SPM-4210) to unlock audio analytics. However, for expansive outdoor surveillance requiring both coverage and precision, the XNP-9250 is a compelling choice in the premium PTZ segment.
