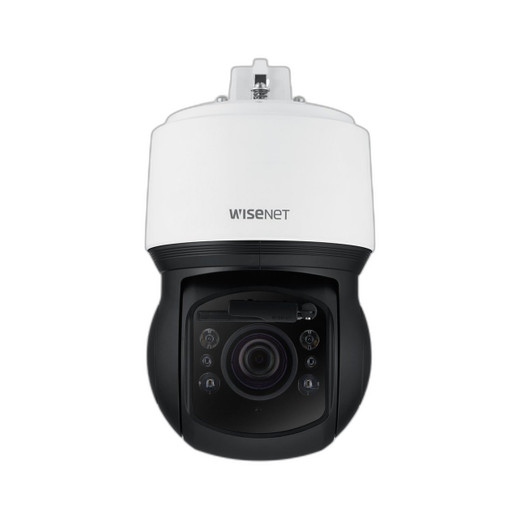

Hanwha XNP-9300RW 4K IR Wiper PTZ Network Camera

Hanwha XNP-9300RW 4K IR Wiper PTZ Network Camera

The Hanwha XNP-9300RW is a professional-grade 4K PTZ camera engineered for demanding large-scale surveillance applications. Combining 8MP 4K resolution with 30x optical zoom (960x total with digital), this camera delivers exceptional clarity across wide and telephoto ranges. Its 200-meter IR viewable range with Wise IR technology ensures reliable night vision in complete darkness, while the integrated wiper system maintains lens clarity during adverse weather conditions. The -20° to 90° tilt range and 360° endless pan provide comprehensive coverage flexibility, making it ideal for expansive outdoor environments and critical infrastructure monitoring.

Key Features

• 4K UHD resolution (3840x2160) at 30fps with H.265/H.264/MJPEG codec support
• 30x optical zoom (5–150mm focal length) with 960x total zoom capability
• 200-meter IR night vision with automatic day/night switching (ICR)
• Integrated wiper for water removal and lens maintenance
• Extreme WDR (120dB) with HLC and SSDR for challenging lighting
• Built-in gyro sensor for digital image stabilization
• Object auto-tracking for persons and vehicles with target lock
• AI analytics: directional detection, face detection, loitering, tampering, virtual line, shock detection
• 300 preset positions with ±0.1° accuracy and auto pan/tilt correction
• Dual microSD/SDHC/SDXC slots supporting up to 1TB local storage
• IP66, IK10, NEMA4X certified for extreme environments
• HPoE (IEEE 802.3bt Class 6) powered with low 20W typical consumption

Technical Specifications

Imaging & Optics: The 1/2.8" 8MP CMOS sensor captures multiple resolutions from 4K down to 320x240, with F1.6–F4.56 aperture range and minimum 0.1 Lux color illumination. Electronic shutter speeds extend to 1/12,000 seconds with anti-flicker support, enabling operation in diverse lighting conditions.

PTZ Performance: Pan speeds reach 500°/sec and tilt speeds 350°/sec for rapid repositioning. Manual control offers granular adjustment from 0.024°/sec. Six movement groups, swing mode, and auto-run sequences support complex multi-zone surveillance patterns. Preset handover during alarm triggers enables intelligent automated response.

Video Compression & Bandwidth: WiseStream II smart codec with manual area selection optimizes bitrate allocation. VBR and CBR modes support unicast streaming to 20 simultaneous users or multicast to 128 users. Multiple streaming profiles (up to 10) allow different quality levels for various applications.

Security & Connectivity: Full ONVIF Profile S/G/T compliance with SUNAPI HTTP API ensures cross-platform integration. TLS/SSL encryption, 802.1X EAP authentication, and device certificates provide enterprise-grade security. UL CAP (UL 2900-1) cyber security assurance certification validates protection against cyber threats.

Environmental Durability: Operating range of -40°C to +55°C with NEMA TS-2 vibration and shock compliance meets harsh outdoor standards. 32 privacy mask zones with mosaic or color overlay preserve sensitive areas while maintaining coverage.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNP-9300RW excels in scenarios requiring extended range surveillance with minimal light. The 30x zoom paired with 4K resolution delivers exceptional detection capabilities (140+ meters wide-angle, 4000+ meters telephoto at 25PPM standard). The 200-meter IR range surpasses many competitors, critical for perimeter security and transportation hubs where lighting is inconsistent. The integrated wiper addresses a real operational pain point—lens fouling in rain or dust—reducing maintenance cycles and blind spots.

WiseStream II codec efficiency is particularly valuable in bandwidth-constrained deployments; the smart region-of-interest encoding can reduce bitrate by 50%+ compared to standard H.265 without perceptual quality loss. The gyro-stabilized DIS combined with extreme 120dB WDR makes this camera suitable for both moving platform mounting (e.g., vehicle-mounted temporary coverage) and fixed installations with severe backlight or reflective surfaces.

For organizations requiring local storage, the dual microSD slots with 1TB capacity enable 30+ days of continuous recording at moderate bitrate, valuable for sites with intermittent network connectivity. HPoE Class 6 powering simplifies installation in remote locations, eliminating separate power runs and reducing cable clutter at the camera head.
