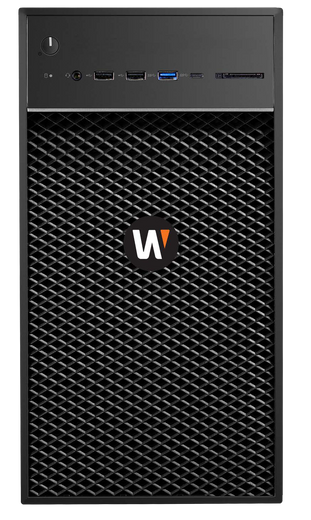

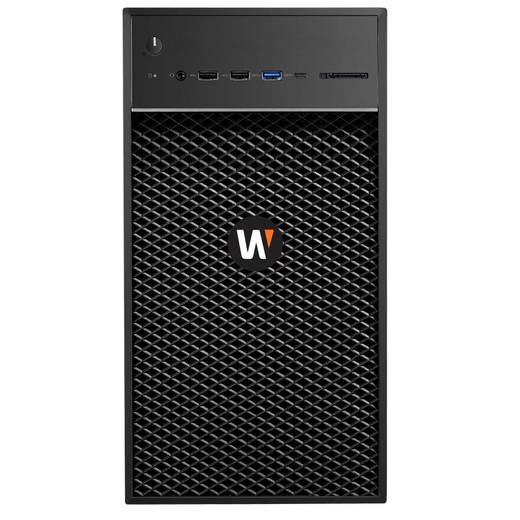

Hanwha WRT-P-5202L WRT-P-5202L Dual-purpose Wisenet WAVE Network Video Recorder
Hanwha WRT-P-5202L WRT-P-5202L Dual-purpose Wisenet WAVE Network Video Recorder
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: WRT-P-5202L
UPC: 849688020333
Availability: No Longer Available
Write a Review
Hanwha

Hanwha WRT-P-5202L Dual-purpose Wisenet WAVE Network Video Recorder

Discontinued — No Longer Available NewThis model has been discontinued by Hanwha. Shop current Hanwha products → or see the recommended alternati…

$99,999.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Message Call

Hanwha WRT-P-5202L Dual-purpose Wisenet WAVE Network Video Recorder

$99,999.99
Add to Cart

Overview

SKU: WRT-P-5202L
UPC: 849688020333
Availability: No Longer Available

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Discontinued — No Longer Available New

This model has been discontinued by Hanwha. Shop current Hanwha products → or see the recommended alternatives below.

  • Preloaded and configured with Wisenet WAVE video management system
  • Includes (4) four Wisenet WAVE Professional licenses
  • 470 Mbps of recording throughput
  • Up to 36TB internal storage
  • Supports Wisenet and ONVIF conformant IP cameras
  • Dual DisplayPort monitor outputs
  • Dual GbE NICs
  • Includes USB mouse and keyboard
  • 5-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
  • Powered by the Ubuntu 20.04 LTS Linux Operating System
Expert Analysis
Specifications
Video Management Software: Wisenet WAVE
Recording Bandwidth: Up to 470 Mbps
Pre-loaded Licenses: 4 x Wisenet WAVE Professional license
OS Drive Bays: 1 x 256GB SSD (internally mounted)
Data Drive Bays: 3x 3.5" SATA HDDs
Data Storage: Up to 36TB raw storage
Network Interface: (2) 1GbE RJ45 Ports (1 on-board & 1 PCIe NIC)
CPU: 1 x Intel® Core® i5 12th Generation
RAM: 16GB DDR4
Operating System: Windows 10 IoT Enterprise / Ubuntu Linux 20.04 LTS
Video Outputs: 2x DisplayPort with 1 x DisplayPort to HDMI adapter
USB Ports: 4× USB 3.2, 2× USB 2.0, 2× USB 3.2 Type-C
Other Ports: 3.5mm audio output, PS2 Keyboard & Mouse, Serial
Keyboard & Mouse: Included
Form Factor: Tower
Color / Material: Black / Metal
Dimensions (HxWxD: 14.52" x 6.81" x 16.53" (369mm x 173mm x 420mm)
Weight: 24 lbs (10.8 kg)
Power Type: 550W 80 Plus Gold
Input Voltage: 100 ~ 240V AC
Power (Max: Maximum 550W
Operating Temperature: 41°F to 113°F (5°C to 45°C)
Storage Temperature: -40°F to 158°F (-40°C to 70°C)
Operating Humidity: 20% to 85% (non-condensing)
Certification: UL, cUL, CB, FCC, 80 Plus Gold
Housing Color: White
