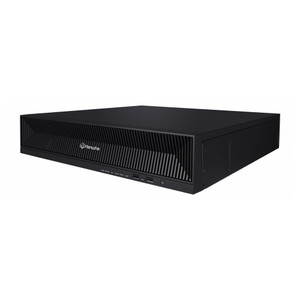

Hanwha PRN-1600B2 16-Channel 8K AI Network Video Recorder

Hanwha PRN-1600B2 16-Channel 8K AI Network Video Recorder

The Hanwha PRN-1600B2 is a 16-channel professional network video recorder designed for large-scale enterprise surveillance deployments. It combines raw channel capacity with advanced codec efficiency and AI-driven search capabilities—critical when you're managing dozens of cameras across distributed sites and need to find specific events in days of footage quickly.

Key Features

• 16 camera inputs with 32MP resolution support: Handles ultra-high-resolution feeds from modern IP cameras without bottlenecking. Useful if you're migrating to higher megapixel sensors and need a recorder that won't be obsolete in two years.
• 8K recording capability with H.265, H.264, and MJPEG: H.265 cuts file sizes roughly 40–60% versus H.264, directly reducing storage cost and network load on your infrastructure. The PRN-1600B2 supports all three codecs, so you're not locked into one compression strategy.
• 250 Mbps recording bandwidth in distributed and RAID modes: This is meaningful throughput. In RAID 5 or RAID 6 (which most integrators deploy for redundancy), you can reliably record all 16 channels at full quality without dropouts. Single-NVR bottlenecks disappear.
• Dual 4K/1080p HDMI outputs with dynamic multi-screen layouts: Operator workstations can render multiple camera feeds on separate displays or tile views—critical in 24/7 control rooms where human attention is split across dozens of feeds.
• Up to 80TB total storage via eight 10TB SATA HDDs with RAID 5/6: RAID 5 gives you one drive's worth of fault tolerance; RAID 6 tolerates two simultaneous failures. For mission-critical sites (airports, data centers, utilities), RAID 6 is the safer bet despite slightly lower usable capacity.
• License-free AI search with object detection, facial recognition, and license plate recognition: No per-seat licensing per search. Deploying WiseStream technology reduces bandwidth demand by analyzing motion and scene complexity on the fly—real savings on network infrastructure spend.
• N+1 redundancy and Automatic Recovery Backup (ARB): If one NVR fails, a standby unit takes over. ARB continuously backs up recordings to a secondary device. Non-negotiable for critical infrastructure where dropped video creates liability.
• 64-channel simultaneous playback (local and remote combined): Up to 16 channels play locally; remote users across multiple sessions can access up to 16 channels each. Useful for multi-site operations where auditing or forensic review happens across office locations.

Integration & Compatibility

Three 1Gbps Ethernet ports allow LAN or WAN deployment with dual IPv4/IPv6 stack support. The PRN-1600B2 complies with ONVIF Profile-S and integrates natively with Hanwha SUNAPI, opening compatibility with third-party VMS platforms like Milestone XProtect, Genetec, and others that speak ONVIF. Eight alarm inputs and four relay outputs integrate with legacy security systems and automated response workflows (email alerts, FTP backup, PTZ presets, gate control).

Audio spans 16 network channels with G.711, G.726, and AAC codecs; two-way communication is built in. Four USB ports (two 2.0 front-facing, two 3.0 rear) support external backup drives and peripherals. Fisheye dewarping handles ultra-wide or panoramic camera feeds for both local single-channel and remote CMS-based monitoring.

Search, Playback, and Forensics

Event-driven recording uses video loss detection, motion triggers, and camera sensor events with dynamic correlation—so if a door sensor opens AND motion appears in that zone, a single event fires rather than two separate ones. Calendar-based date/time navigation, event list filtering, text search, and intelligent smart search cut investigation time significantly. For a warehouse or transportation hub handling 24/7 recording, this matters.

Security features include IP address filtering, 802.1X authentication, device certificates backed by Hanwha Techwin Root CA, and signed firmware verification—baseline protections for networks where camera tampering or unauthorized access represents physical security risk.

When to Choose a Different Model

If your deployment requires fewer than 12 channels or doesn't justify 8K resolution, a lower-capacity NVR in the Hanwha NVR lineup may reduce capital cost. If you're standardizing on a specific third-party VMS and need guaranteed compatibility, verify ONVIF Profile support with your VMS vendor before committing—ONVIF-S is broad but not all features map across vendors.

Typical Applications

Enterprise campuses with 50+ distributed buildings, transportation hubs (airports, rail stations), financial institutions, government facilities, and large retail chains use the PRN-1600B2 where ultra-high resolution archival, redundancy, and forensic search capabilities justify the footprint and cost. AI search becomes a force multiplier when human investigators are scarce.

Frequently Asked Questions

Q: What's the maximum storage retention with 80TB of usable capacity?

A: Retention depends on resolution, frame rate, and codec. A mix of H.265 1080p and 4K streams might yield 30–60 days of continuous recording. H.265 efficiency means you get more days per terabyte than H.264 systems—often a 40–50% improvement.

Q: Does the PRN-1600B2 support failover to a backup NVR automatically?

A: Yes. N+1 redundancy is built in. Configure a standby unit; the PRN-1600B2 will detect primary failure and the backup takes recording duties. ARB continuously syncs critical recordings to the secondary device.

Q: Can I upgrade the hard drives myself, or do I need a technician?

A: The system accommodates up to eight 10TB SATA drives in tool-less bays. You can swap drives directly, though data migration and RAID rebuild should follow Hanwha documentation or an integrator's procedures to avoid data loss.

Q: Is the PRN-1600B2 compatible with non-Hanwha cameras?

A: Yes. ONVIF Profile-S compliance means any IP camera that supports ONVIF—Axis, Hikvision, Dahua, Uniview, Bosch, etc.—will integrate. Some advanced features (like Hanwha WiseStream codec optimization) are proprietary, but standard ONVIF cameras work fine.

Q: What's the power requirement for the PRN-1600B2?

A: The unit runs on AC 110–240V. With all 16 channels active and RAID running, budget approximately 300–400W depending on HDD activity and recording load. Use a UPS rated for at least 1500VA to handle 15–20 minutes of failover time.

Q: Does the PRN-1600B2 support cloud backup or remote NVR-to-NVR sync?

A: ARB handles device-to-device sync. Cloud backup depends on your third-party VMS or middleware—ONVIF compliance enables integration with cloud-connected video management platforms, but Hanwha does not operate a proprietary cloud service tied to this recorder.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Hanwha PRN-1600B2 represents the premium end of Hanwha's NVR tier—a genuine step up for sites where redundancy is non-negotiable and 16-channel capacity justifies the footprint. The 250 Mbps recording bandwidth in RAID mode is the headline spec here: it means all 16 channels can stream full-quality feeds simultaneously without the throughput starvation that plagues single-stream NVRs during peak activity. That matters for continuous recording in busy environments.

Technical Highlights:

• 250 Mbps sustained throughput in RAID 5/6: Unlike systems that spike to high bandwidth briefly then throttle, the PRN-1600B2 maintains this rate across all 16 channels continuously. For a 24/7 warehouse or transportation hub, no dropped frames.
• H.265 codec stack with WiseStream: The combination cuts bandwidth 40–60% on scenes with minimal motion (parking lots, office hallways), so your network link and storage scale more predictably. You're not overprovisioning for worst-case anymore.
• 64-channel playback headroom: That's 16 local + multiple 16-channel remote sessions. In multi-site operations, it eliminates the bottleneck where five investigators compete for playback resources on a standard NVR.
• N+1 redundancy + ARB: The standby unit and automatic backup sync eliminate single points of failure. Critical infrastructure sites (utilities, airports, secure facilities) demand this; general retail doesn't justify it.

Deployment Considerations:

• Eight 10TB drives in RAID 6 gives you ~40TB usable capacity and two-drive fault tolerance—the safer redundancy stance but lower raw capacity than RAID 5. Plan your retention carefully; 30–60 days of mixed-resolution recording is typical, not 90+.
• Three 1Gbps ports might feel tight if you're running all 16 channels over a single NVR. Bond two ports (if your network infrastructure supports it) or use a second NVR for geographic distribution rather than trying to stuff 16 ultra-high-res streams through one link.
• WiseStream is a real efficiency win, but it's Hanwha-codec-specific. Non-Hanwha cameras via ONVIF won't use it—they'll stream standard H.265 or H.264, which is fine but means you don't get that 40–60% bandwidth bonus. Plan accordingly in mixed-camera deployments.

Deploy the PRN-1600B2 where you have 12–16 cameras, redundancy is mandatory (not optional), and your storage/retention budget justifies 80TB of capacity. Campus-wide surveillance, transportation hubs, and critical infrastructure are the right homes. Small retail and branch locations will overpay for features they don't use.
